Siemens 599-03180 Globe Valve, 2 Way, 1/2 in. NPT, 1 Cv

Product Description

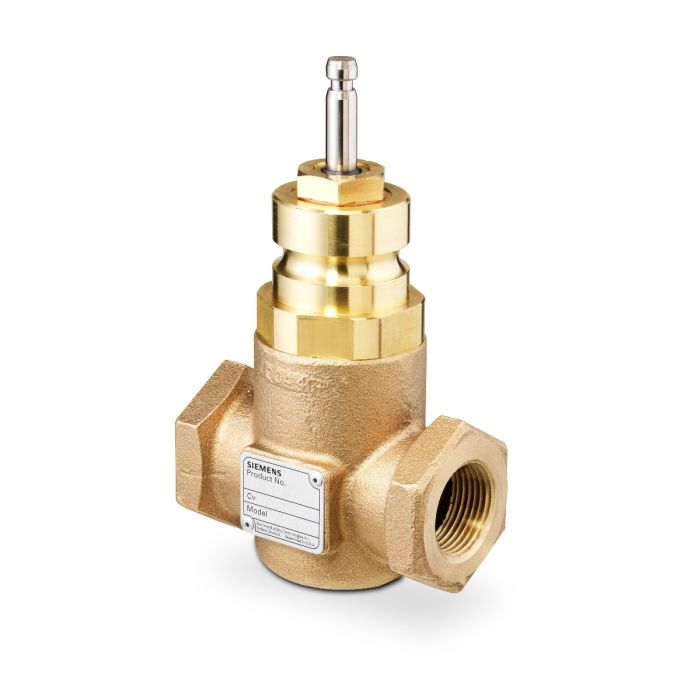

The Siemens 599-03180 globe valve is designed for effective flow control in HVAC systems. This valve has a 1/2 inch NPT connection and a flow capacity of 1 Cv. The valve operates with a normally closed configuration, ensuring that flow is stopped unless actuated.

• Standard ANSI Leakage Class IV, ensuring minimal leak rates.
• Accepts any 3/4 inch stroke actuator for easy integration.
• Suitable for use with water, steam, and glycol solutions.

Product Highlights

The Siemens valve is suitable for various applications, especially in commercial HVAC installations. This valve helps regulate hot and chilled water flow efficiently.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: 599-03180

Technical Specifications

• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
• Flow Characteristic: Equal Percentage
• Service Fluids: Saturated steam, water, glycol solutions up to 50%
• Max Pressure Rating: 200 psi
• Max Temperature Rating: 150 F
