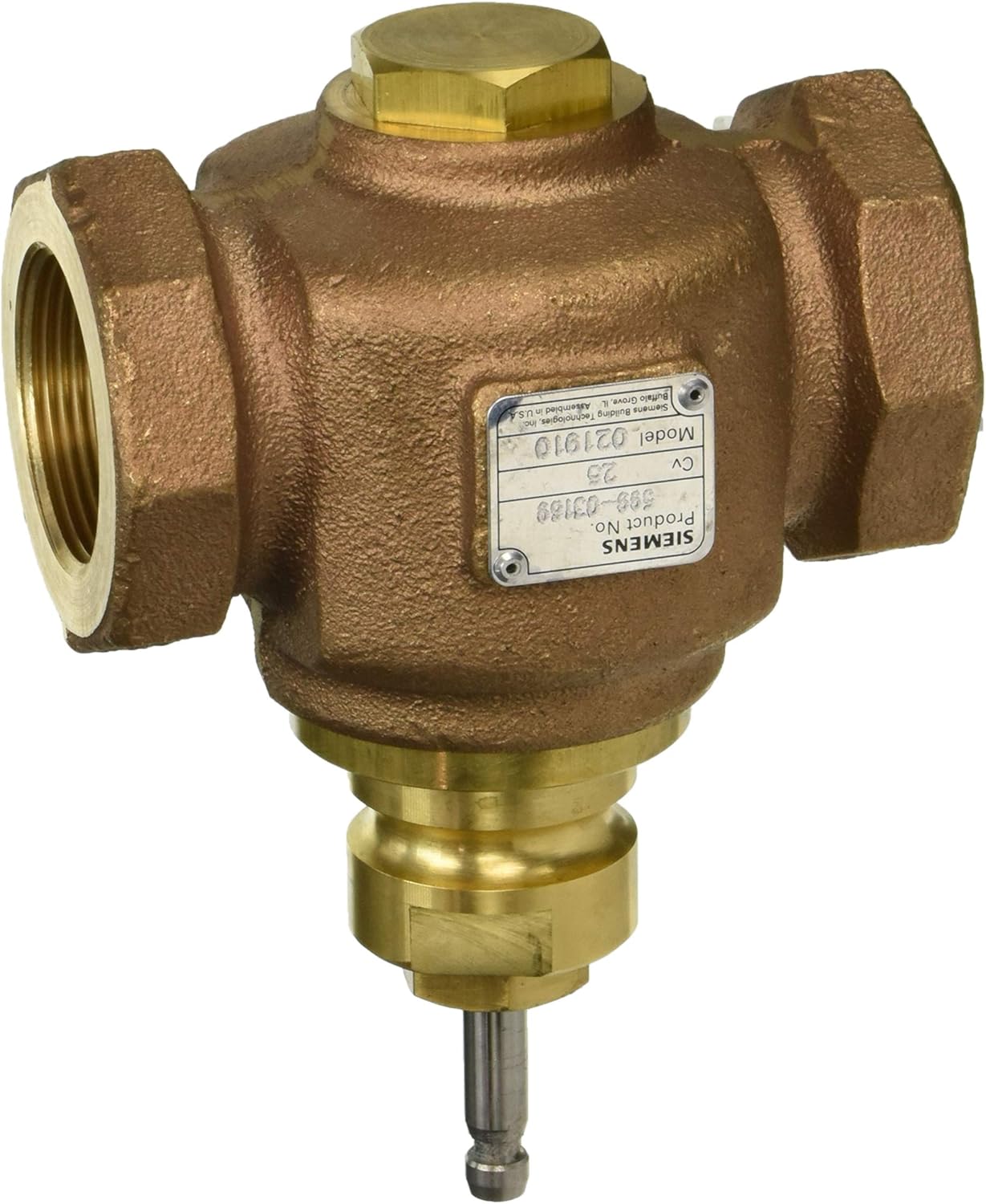

Siemens 599-03169 1 1/2NO,BZ,250,25CV,=%,HC

Product Description

The Siemens 599-03169 is a 1 1/2 inch normally open valve body with a capacity of twenty-five Cv. This brass valve is designed for reliable operation in heating and cooling systems. It is suitable for a variety of applications, including hot or chilled water, water-glycol solutions, or steam control.

• ANSI leakage class IV (0.01% of Cv)
• Durable brass construction
• Easy installation and maintenance

Product Highlights

This valve is built for high-pressure applications and is compatible with a Flowrite series actuator featuring a three-quarter inch stroke. The normally open design allows fluid flow until a closure signal is received. Its cartridge-type packing and equal percentage flow characteristics ensure precise control.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Item Number: 599-03169

Technical Specifications

• Valve Pattern: 2-way
• Flow Capacity (Cv): 25
• Body Rating: 250
• Maximum Temperature: 250°F
• Material: Brass
• Connection Type: Female x Female
• Dimensions: 5.13 inches x 4 inches x 4.12 inches
• Weight: 8.94 pounds
