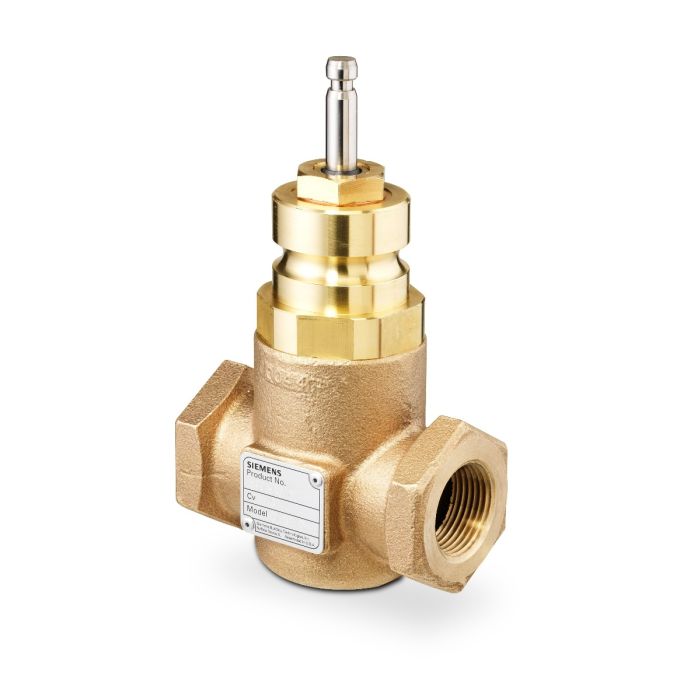

Siemens 599-03134 Globe Valve, 2 Way, 2 in. NPT, 40 Cv

Product Description

The Siemens 599-03134 is a two-way globe valve with a size of two inches NPT and a flow capacity of 40 Cv. This valve is normally closed and uses stainless steel trim for durability. It is designed for use in a range of HVAC systems and controls. The valve operates effectively in applications that require precise flow control.

• Accepts various pneumatic or electronic actuators
• Features ANSI leakage class IV for minimal leakage
• Serviceable cartridge-type packing for easy maintenance

Product Highlights

This valve is ideal for industrial, commercial, and institutional applications. It offers significant rangeability and is ideal for controlling flow in various fluids including water and glycol solutions.

Product Information

Standard Information

• Brand: Siemens
• MPN: 599-03134

Technical Specifications

• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
• Flow Characteristic: Equal Percentage
• Service Medium: Saturated steam, water, glycol solutions up to 50%
• Rangeability: Greater than 100:1
• Trim Material: Stainless Steel
• Connection Type: 2-inch NPT
