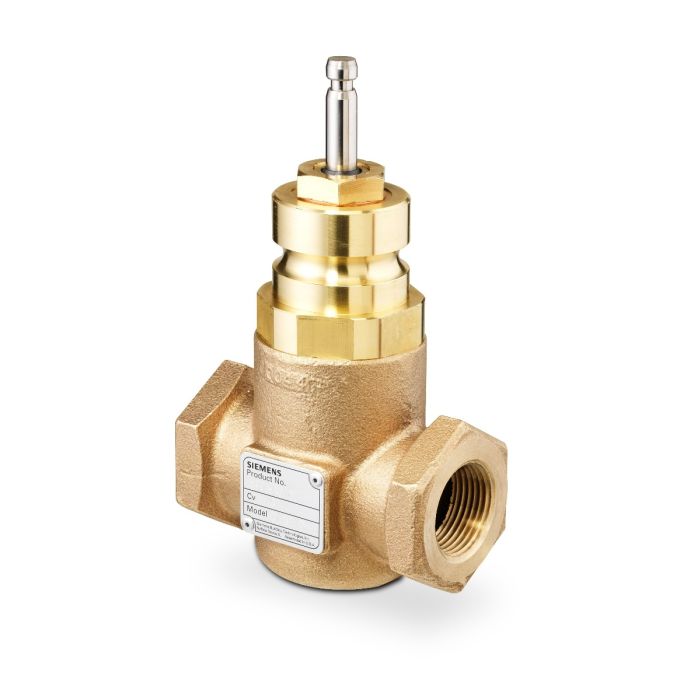

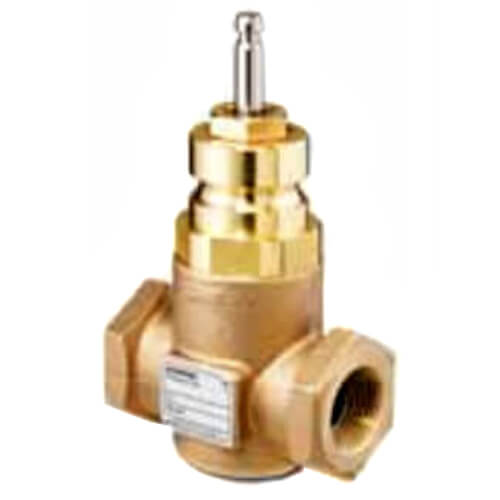

Siemens 599-03132 Globe Valve, 2 Way, 1-1/4 in. NPT, 16 Cv

Product Description

The Siemens Globe Valve, with MPN 599-03132, is a reliable solution for fluid control in various applications. This valve features a size of one and one-fourth inches with a flow capacity of sixteen Cv. It is constructed with stainless steel trim and operates in a normally closed position.

• Fully serviceable design
• Greater than 100:1 rangeability
• Accepts any 3/4-inch stroke Flowrite actuator

Product Highlights

Ideal for HVAC applications, this globe valve provides precise flow control and is suitable for saturated steam, water, and glycol solutions up to fifty percent.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: 599-03132
• Min Order Quantity: 1
• Availability: Out of Stock

Technical Specifications

• Service: Saturated Steam, Water, Glycol Solutions Up to 50%
• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
• Flow Characteristic: Equal Percentage
• Body Pattern: 2-Way
• Connection Size: 1-1/4 in.
• Connection Type: Female x Female
• Shipping Weight: 6.64 lbs
• Dimensions: Length 8.5 in., Width 9.2 in., Height 3.45 in.
