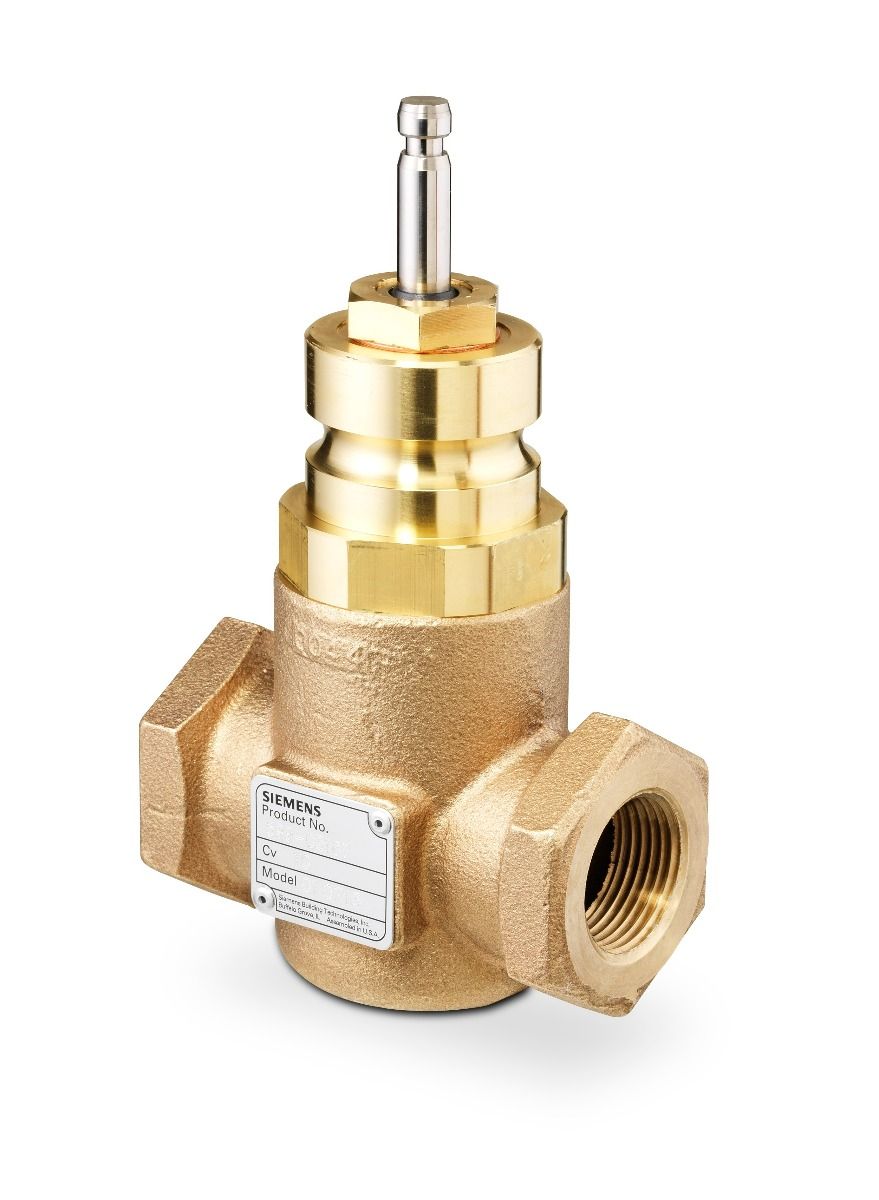

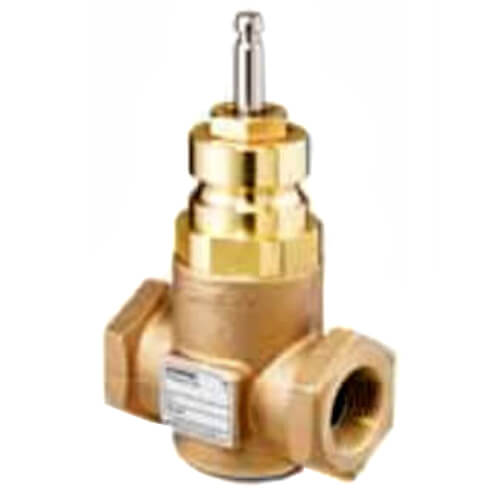

Siemens 599-03130 Globe Valve, 2 Way, 3/4 in. NPT, 6.3 Cv

Product Description

The Siemens 599-03130 is a globe valve designed to control the flow of liquids and gases in various HVAC applications. This valve features a stainless steel body which ensures durability and longevity. It has a nominal pipe size of three-fourths of an inch and a flow capacity of six point three coefficient of flow (Cv), making it suitable for both pneumatic and electronic actuators.

• Stainless Steel Construction
• Normally Closed Design
• Accepts Any 3/4 in. Stroke Flowrite Actuator

Product Highlights

This valve is engineered for precise flow regulation and offers reliable performance under varying conditions.

Product Information

Standard Information

• Brand: Siemens
• Part Number: 599-03130

Technical Specifications

• Flow Characteristic: Equal Percentage
• Operating Conditions: Twenty degrees F to two hundred fifty degrees F (-7 C to 120 C)
• Service Capability: Saturated Steam, Water, Glycol Solutions Up to Fifty Percent
• Rangeability: Greater than 100:1
• ANSI Leakage Class: IV (0.01% of Cv)
• End Connection Type: Female x Female
