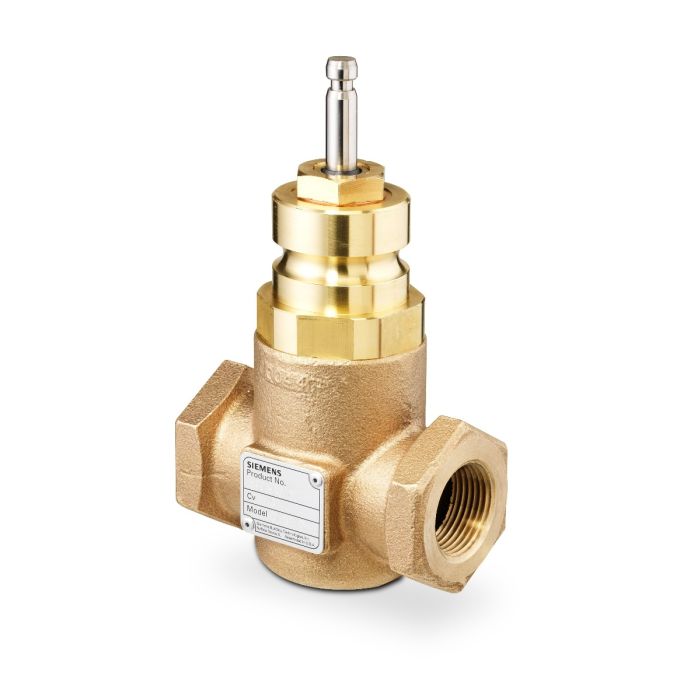

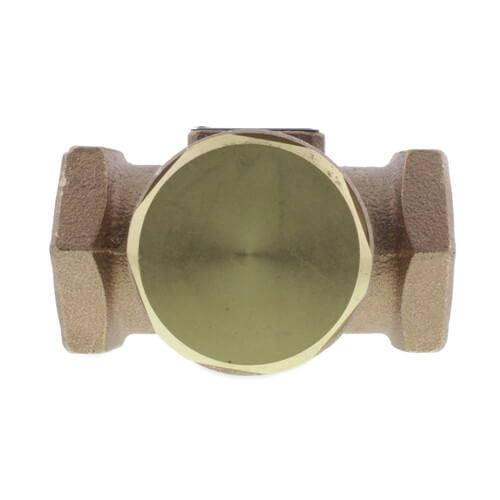

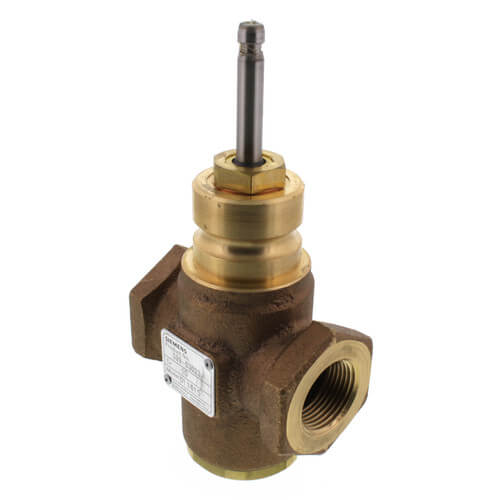

Siemens 599-03023 Globe Valve, 2 Way, 1 in. NPT, 10 Cv

Product Description

The Siemens 599-03023 is a two-way globe valve designed for reliable performance in HVAC systems. This stainless steel valve features an NPT connection size of one inch and a flow capacity (CV) of ten. It is optimized for both pneumatic and electronic actuator compatibility with a 3/4-inch stroke.

• Suitable for various applications, including saturated steam, water, and glycol solutions.
• Robust and durable stainless steel construction.
• Offers greater than 100:1 rangeability with easy maintenance and serviceability.

Product Highlights

This valve is designed with ANSI Leakage Class IV standards for minimal leakage and efficient operation. It provides accurate flow control in industrial applications.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Part Number: 599-03023

Technical Specifications

• Flow Characteristic: Linear
• Operating Conditions: 20 F to 250 F (-7 C to 120 C)
• Service: Saturated steam, water, glycol solutions up to fifty percent
• Connection Type: FNPT x FNPT
• Body Pattern: 2-Way
• Material: Stainless Steel
• Weight: 4.87 lbs
• Dimensions: Length - 5.85 inches, Width - 8.75 inches, Height - 2.9 inches
