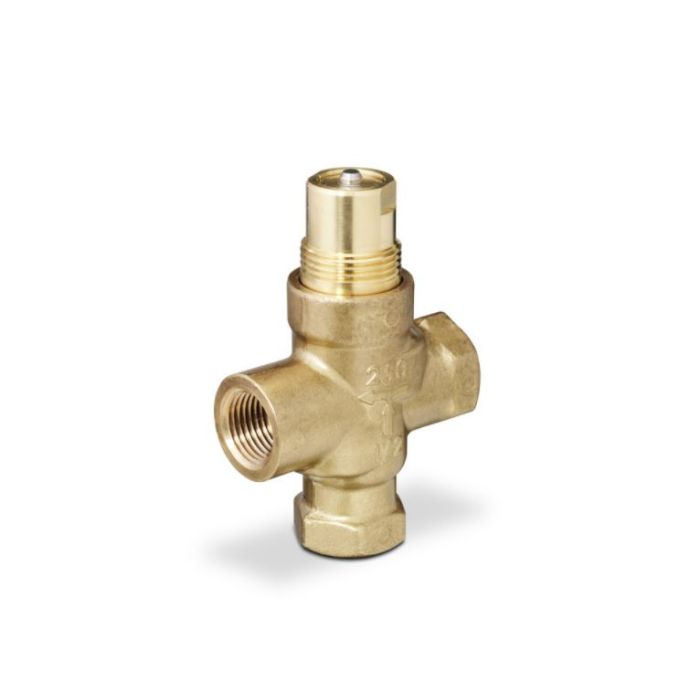

Siemens 599-02074 Globe valve 3-way 1 Cv (1/2 in NPT)

Product Description

The Siemens 599-02074 is a 3-way globe valve with a Cv of 1, configured for 1/2 in female NPT connections. It has stainless steel trim, a linear flow characteristic, and is suitable for water, steam, and glycol solutions up to 50%. The valve meets ANSI Leakage Class IV and operates from 35°F to 250°F (2°C to 120°C).

• 3-way globe valve, Cv 1, 1/2 in female NPT connections
• Stainless steel trim with linear flow characteristic; ANSI Leakage Class IV (0.01% of Cv)
• Suitable for water, steam, and glycol solutions up to 50%; operating range 35°F to 250°F (2°C to 120°C)

Product Highlights

3-way mixing globe valve, 1/2 in NPT, Cv 1, ANSI Class 250 body rating

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02074

Technical Specifications

• Brand: Siemens
• MPN: 599-02074
• Product Type: Globe valve
• Valve Type: 3-way
• Valve Pattern: Mixing
• Size: 1/2 in (0.5 in)
• Connection: 1/2 in NPT (female)
• End Connection: Female NPT (FxF)
• Cv: 1
• Flow Characteristic: Linear
• Flow Pattern: Mixing
• Trim Material: Stainless steel
• Body Material: Stainless steel
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Close-off Pressure: 250 PSI
• Body Rating: ANSI 250
• Assembly: Valve only
• Compatible Actuators: Pneumatic or electronic actuators
• Service: Water, steam, glycol solutions up to 50%
• Weight: 1.50 lb
