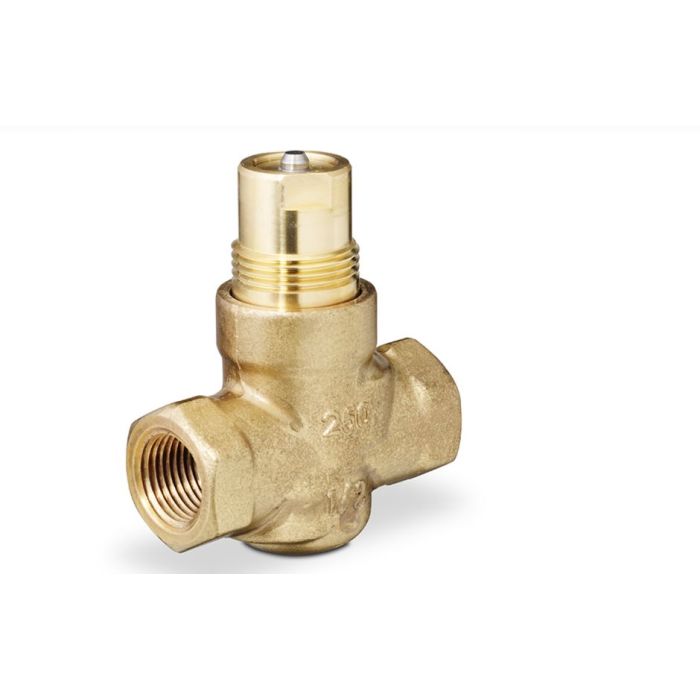

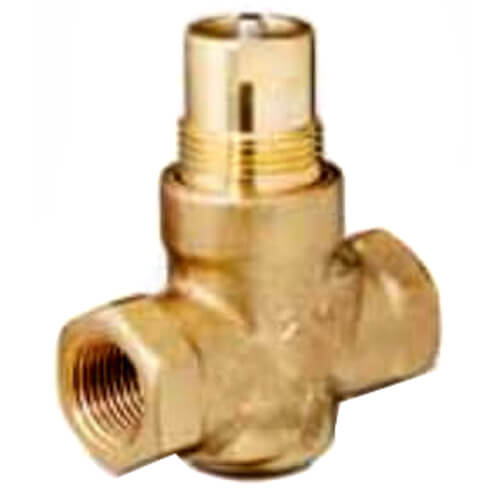

Siemens 599-02055 Powermite MT Series Globe valve 2.5 Cv 1/2 in

Product Description

Siemens 599-02055 is a Powermite MT Series 1/2 in, 2-way normally open globe valve body with a 2.5 Cv flow coefficient. The valve features stainless steel trim, female x female FNPT connections, ANSI Class 250 body with ANSI Leakage Class IV (0.01% of Cv), and a modified equal percentage flow characteristic. It is designed to work with pneumatic or electronic actuators with a 7/32 in (5.5 mm) stroke and services water, steam, and glycol solutions up to 50%.

• 1/2 in FNPT x FNPT 2-way globe valve body, normally open, 2.5 Cv
• Stainless steel trim, ANSI Class 250 body, ANSI Leakage Class IV (0.01% of Cv)
• Designed for pneumatic or electronic actuators (7/32 in stroke); suitable for water, steam, and glycol up to 50%

Product Highlights

Powermite MT Series valve body for HVAC fluid control with modified equal percentage characteristic and 2.5 Cv capacity

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02055
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• MPN: 599-02055
• Series: Powermite MT
• Product Type: Globe Valve
• Valve Type: 2-way
• Body Pattern: 2-way
• Position: Normally open
• Flow Coefficient (Cv): 2.5
• Connection Type: FNPT x FNPT (female x female)
• Connection Size: 1/2 in
• Trim Material: Stainless steel
• Body Material: ANSI Class 250 body (material per source: stainless steel trim; body material as specified by vendor/sources)
• Flow Characteristic: Modified equal percentage
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• ANSI Rating: ANSI Class 250
• Actuator Compatibility: Compatible with pneumatic or electronic actuators
• Actuator Stroke: 7/32 in (5.5 mm)
• Minimum Actuator Force: 67 lbf (300 N) (actuator compatibility requirement)
• Close-off Pressure: 250 PSI
• Service / Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• Rangeability: Greater than 100:1 for Cv > 1.0
• Rated Steam Pressure: 15 psi (when using stainless steel trim, per source)
