Siemens 599-02052 Globe valve 1.0 Cv (1/2 in NPT union)

Product Description

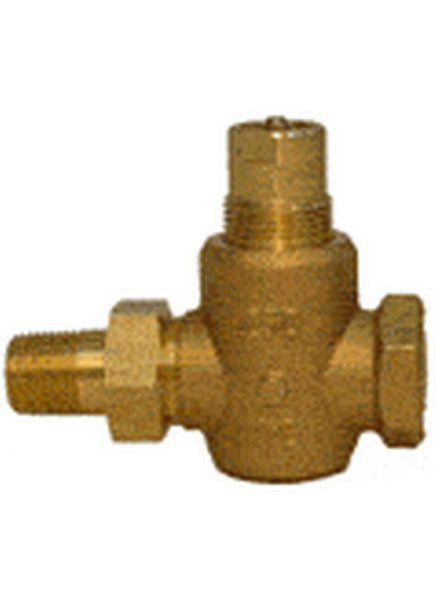

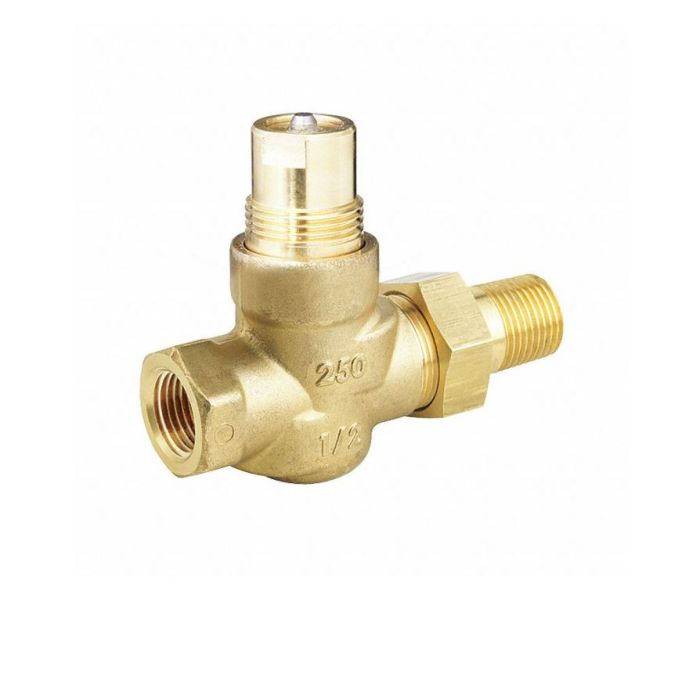

Siemens model 599-02052 is a 1/2 in two-way globe valve with a 1.0 Cv flow coefficient and stainless steel trim. The normally open valve features an NPT union end connection and an ANSI Class 250 body with ANSI Leakage Class IV (0.01% of Cv). It is compatible with pneumatic or electronic actuators with a 7/32 in stroke and is rated for water, steam, and glycol solutions up to 50%.

• 1.0 Cv flow coefficient; modulating modified equal-percentage flow characteristic
• 1/2 in NPT union connection; normally open two-way globe valve with stainless steel trim
• ANSI Class 250 body, ANSI Leakage Class IV (0.01% of Cv); compatible with pneumatic or electronic actuators with 7/32 in stroke

Product Highlights

1/2 in normally open two-way globe valve, 1.0 Cv, stainless steel trim, NPT union connection, ANSI 250 body, compatible with pneumatic/electronic actuators

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02052
• Country of Origin: Unknown

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 599-02052
• Valve Type: 2-way globe valve
• Operation: Normally open (NO)
• Valve Size: 1/2 in (0.5 in)
• Connection: 1/2 in NPT union (female x union male)
• Flow Coefficient: 1.0 Cv
• Flow Characteristic: Modified equal percentage
• Trim Material: Stainless steel
• Material: Stainless steel
• Body Class: ANSI Class 250
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Actuator Compatibility: Pneumatic or electronic actuators with 7/32 in stroke
• Service Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35 F to 250 F (2 C to 120 C)
• Close-off Pressure: 250 PSI
• Assembly: Valve only
