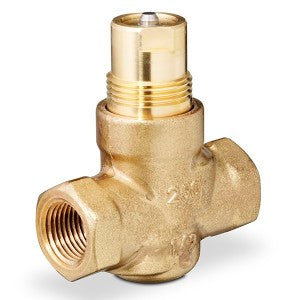

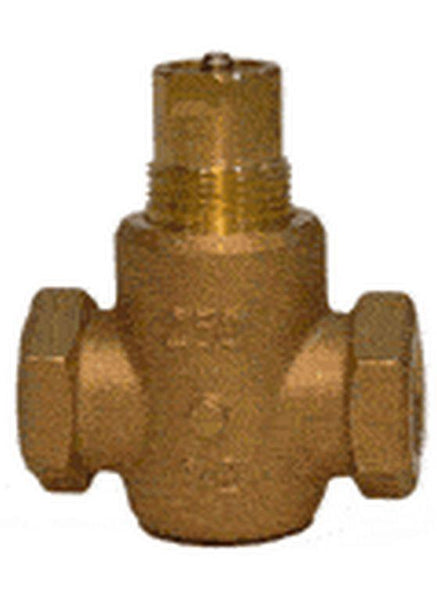

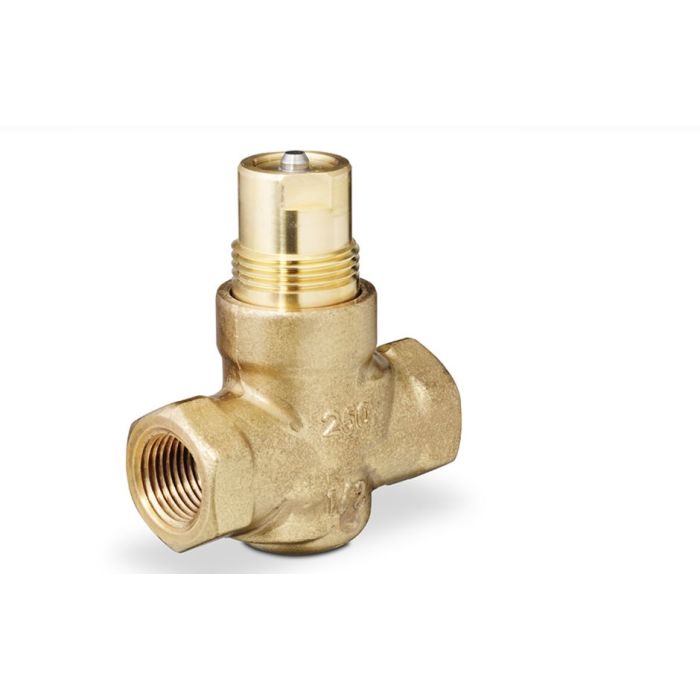

Siemens 599-02047 Globe valve 0.4 Cv (1/2 in.) 1P599-02047

Product Description

Siemens 599-02047 is a 1/2 in. two-way globe valve, normally open, with a 0.4 Cv flow coefficient. The valve features stainless steel trim, female x female 1/2 in. NPT connections and an ANSI Class 250 body rated to 250°F (120°C). It has a modified equal percentage flow characteristic, ANSI Leakage Class IV (0.01% of Cv), and is designed for use with pneumatic or electronic actuators (7/32 in. stroke).

• 0.4 Cv flow coefficient; 1/2 in. port size; two-way globe valve in normally open configuration.
• Stainless steel trim with female x female 1/2 in. NPT connections; ANSI Class 250 body; ANSI Leakage Class IV (0.01% of Cv).
• Modified equal percentage characteristic; compatible with pneumatic or electronic actuators (7/32 in. stroke); suitable for water, steam, and up to 50% glycol; operating range 35°F to 250°F (2°C to 120°C).

Product Highlights

1/2 in. Siemens Powermite MT series globe valve, 0.4 Cv, normally open, stainless steel trim, F x F NPT, ANSI Class 250.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02047
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number (MPN): 599-02047
• Series / Model: Powermite MT Series
• Product Type: Control valve (globe)
• Valve Type: Globe
• Valve Pattern: 2-way
• Operation: Normally open (NO)
• Port Size: 1/2 in.
• End Connection: 1/2 in. NPT female x female (F x F)
• Flow Coefficient (Cv): 0.4
• Flow Characteristic: Modified equal percentage
• Trim Material: Stainless steel
• Body Material: Brass
• Body Rating: ANSI Class 250
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Actuator Compatibility: Designed to work with pneumatic or electronic actuators
• Actuator Stroke: 7/32 in.
• Spring Range: 10 to 15 psi
• Service Media: Water, steam, glycol solutions up to 50%
• Operating Temperature Range: 35°F to 250°F (2°C to 120°C)
• Close-off Pressure: 250 PSI
