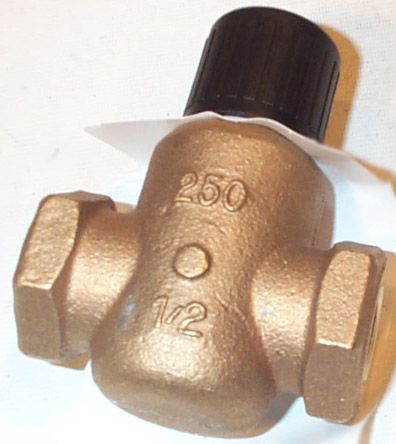

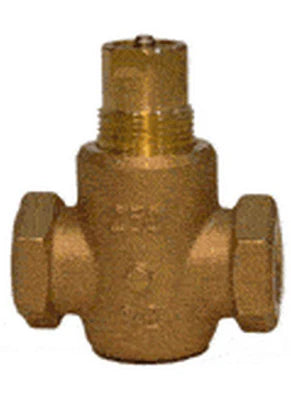

Siemens 599-02038 Terminal Unit Valve 1/2 Inch 2.5 Cv Flow Rate

Product Description

The Siemens 599-02038 Terminal Unit Valve is designed for effective flow control in HVAC systems. Ideal for both commercial and industrial applications, this model facilitates the management of hot and chilled water or water-glycol solutions up to fifty percent.

• Durable bronze body with brass trim ensures longevity.
• Two-way, normally open valve with 1/2 inch line size.
• Features a modified equal percentage valve for consistent performance.

Product Highlights

This valve boasts a 2.5 Cv flow rate and operates under an ANSI Class 250 rating. It's suitable for use with both pneumatic and electronic actuators, supporting a direct-coupled universal bonnet which simplifies the installation process without the need for additional tools.

Product Information

Standard Information

• Brand: Siemens
• Model/MPN: 599-02038

Technical Specifications

• Valve Size: 1/2 inch
• Connection Type: NPT
• Body Material: Brass
• Flow Capacity (Cv): 2.5
• Max Pressure: 125 psi WOG
