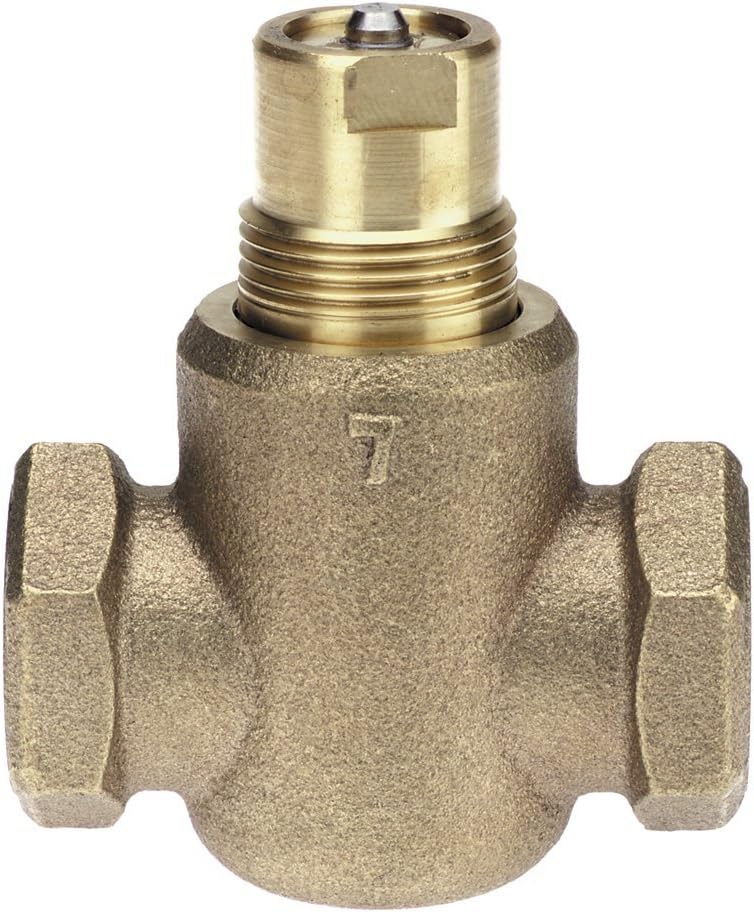

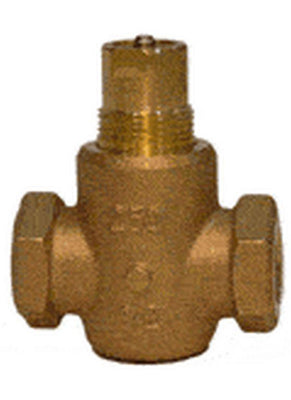

Siemens 599-02034 1.0-Cv Flow Rate Normally Open 2-Way Terminal Unit Valve 1/2-Inch

Product Description

The Siemens 599-02034 is a 1/2-inch, normally open, two-way terminal unit valve designed to control flow in HVAC systems. This valve features a 1.0 Cv flow rate, ensuring precise regulation of hot and chilled water along with water-glycol solutions. It is suitable for use with pneumatic or electronic actuators. The valve includes female NPT connections, a bronze body with brass trim, and meets the ANSI Class 250 rating.

• Two-way terminal valve for fluid control
• 1/2-inch connection size
• Normally open configuration for efficient operation

Product Highlights

The Siemens 599-02034 valve is designed for reliability and ease of installation, featuring a direct-coupled universal bonnet that does not require special tools.

Product Information

Standard Information

• Brand: Siemens Building Technology
• Model: 599-02034

Technical Specifications

• Connection Type: FNPT
• Flow Capacity: 1.0 Cv
• Material: Bronze, Brass
• Pressure Rating: ANSI Class 250
• Spring Range: 10 to 15 psi
• Dimensions: 2.5 x 1 x 3.25 inches
• Item Weight: 1.13 pounds
• Compatibility: For use with hot or chilled water, and glycol mixtures up to 50%
