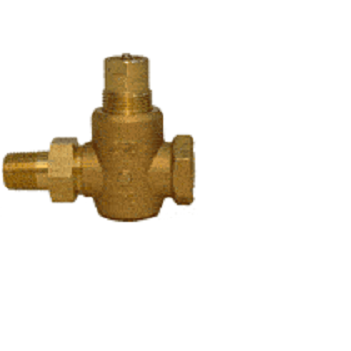

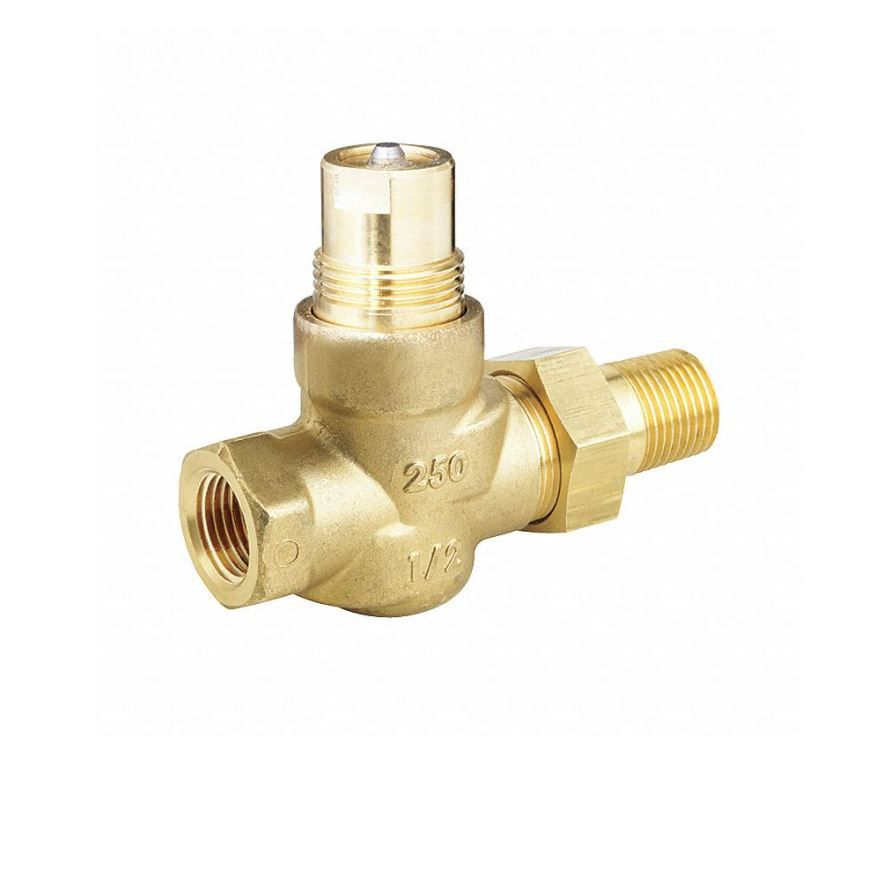

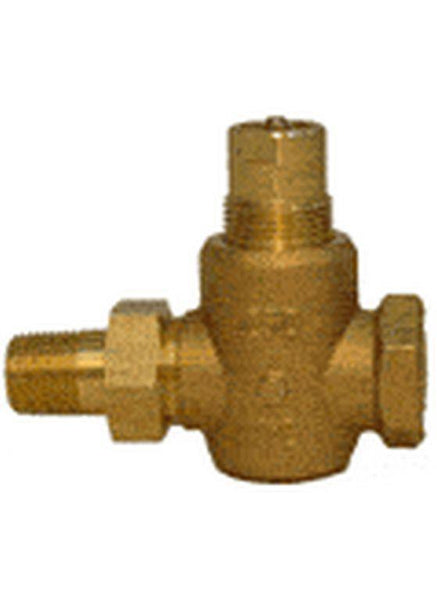

Siemens 599-02028 Globe valve 2-way 3/4 in NPT (3/4 in)

Product Description

Siemens 599-02028 is a 3/4 in two-way globe valve with stainless steel trim and a flow coefficient (Cv) of 6.3. The valve is normally closed and features an ANSI Class 250 body with ANSI Leakage Class IV (0.01% of Cv). It uses a female x union male 3/4 in NPT connection and is designed for pneumatic or electronic actuators with a 7/32 in stroke. Suitable for water, steam, and glycol solutions up to 50% and rated for 35°F to 250°F (2°C to 120°C).

• 6.3 Cv; modified equal-percentage flow characteristic; normally closed (NC) operation
• Stainless steel trim; ANSI Class 250 body; ANSI Leakage Class IV (0.01% of Cv)
• Female x union male 3/4 in NPT connection; compatible with pneumatic or electronic actuators (7/32 in stroke); operating temp 35°F–250°F (2°C–120°C)

Product Highlights

3/4 in 2-way globe valve, 6.3 Cv, NC, stainless steel trim, ANSI 250, female x union male 3/4 in NPT

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02028
• Country of Origin: United States of America

Technical Specifications

• Manufacturer Part Number: 599-02028
• Brand: Siemens
• Valve Type: Globe, 2-way
• Size: 3/4 in
• Connection: Female x union male, 3/4 in NPT
• Flow coefficient (Cv): 6.3
• Trim Material: Stainless steel
• Body Material: Stainless steel
• Action: Normally closed (NC)
• Flow Characteristic: Modified equal percentage
• Pressure Class: ANSI Class 250
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Close-off Pressure: 250 PSI
• Suitable Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• Actuator Compatibility: Designed for pneumatic or electronic actuators
• Actuator Stroke Compatibility: 7/32 in
• Bonnet Type: Direct-coupled universal bonnet
• Spring Range: 10 to 15 psi (likely actuator-related; verify applicability to valve assembly)
