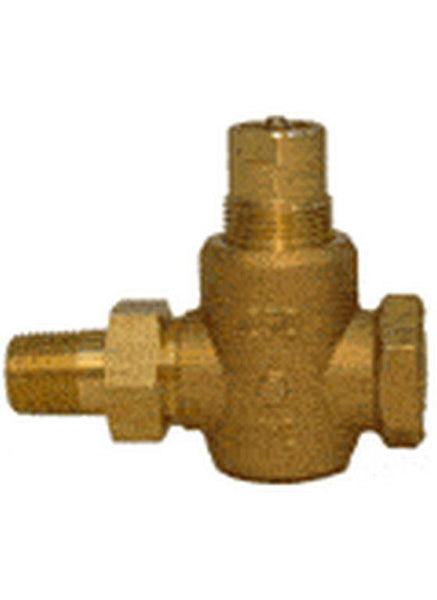

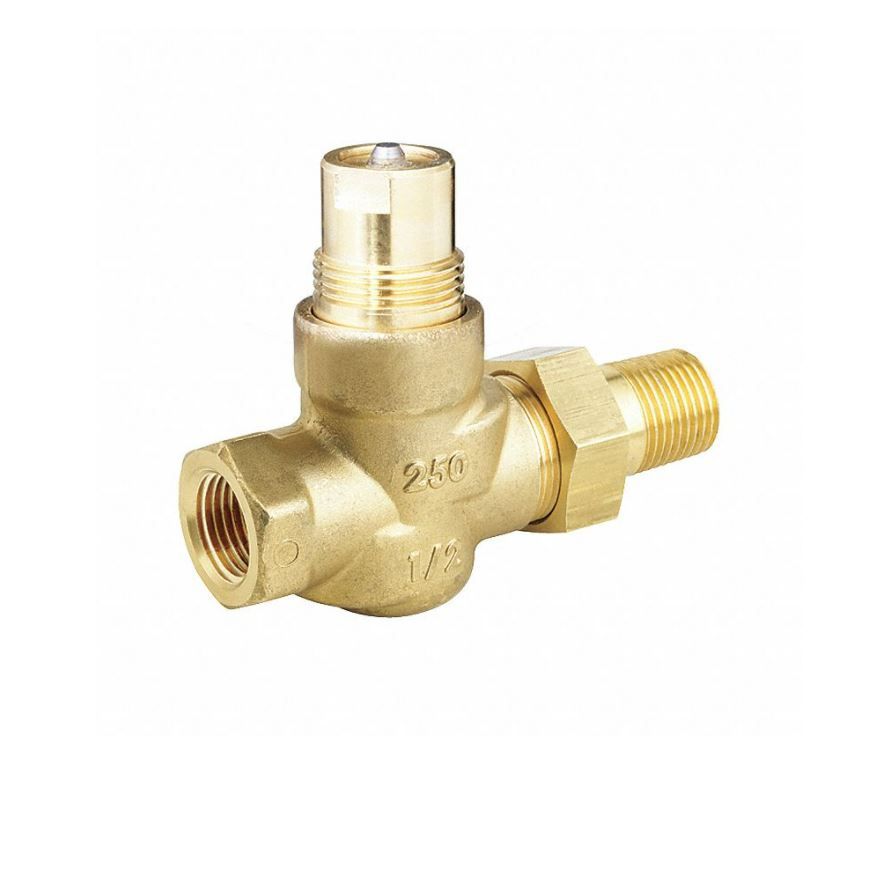

Siemens 599-02026 Globe valve 4 Cv (1/2 in NPT)

Product Description

Siemens 599-02026 is a normally closed (NC) 2-way globe valve with a 4.0 Cv flow coefficient. It has stainless steel trim, a female x union male 1/2 in NPT connection, and an ANSI Class 250 body with ANSI Leakage Class IV (0.01% of Cv). The valve is compatible with pneumatic or electronic actuators with a 7/32 in stroke and is rated for water, steam, and glycol solutions up to 50% across 35 °F to 250 °F.

• 4.0 Cv flow coefficient with modified equal-percentage flow characteristic
• Female x union male 1/2 in NPT connection; valve size 1/2 in; valve-only assembly
• Stainless steel trim; ANSI Class 250 body; ANSI Leakage Class IV; compatible with pneumatic or electronic actuators (7/32 in stroke)

Product Highlights

2-way globe valve, 1/2 in NPT, normally closed, 4.0 Cv, stainless steel trim, ANSI Class 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02026
• Country of Origin: Unknown

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 599-02026
• Series / Model: MT Series
• Valve Type: Globe valve, 2-way
• Action: Normally closed (NC)
• Valve Size: 1/2 in
• Connection: Female x union male (1/2 in NPT)
• End Connection: F x UM (NPT union)
• Cv (Flow Coefficient): 4.0
• Flow Characteristic: Modified equal-percentage
• Trim Material: Stainless steel
• Body Material: Bronze
• Body Class / ANSI Rating: ANSI Class 250
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Actuator Stroke Compatibility: Designed for pneumatic or electronic actuator with 7/32 in stroke
• Service Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35 °F to 250 °F (2 °C to 120 °C)
• Close-off Pressure: 250 PSI
• Permissible Operating Pressure: 400 psi (2758 kPa)
• Mounting Position: Any
• Bonnet: Direct-coupled universal bonnet
• Spring Range: 10 to 15 psi
• Valve Body Style: Stroke-globe
• Port Configuration: 2-way
• Assembly: Valve only
