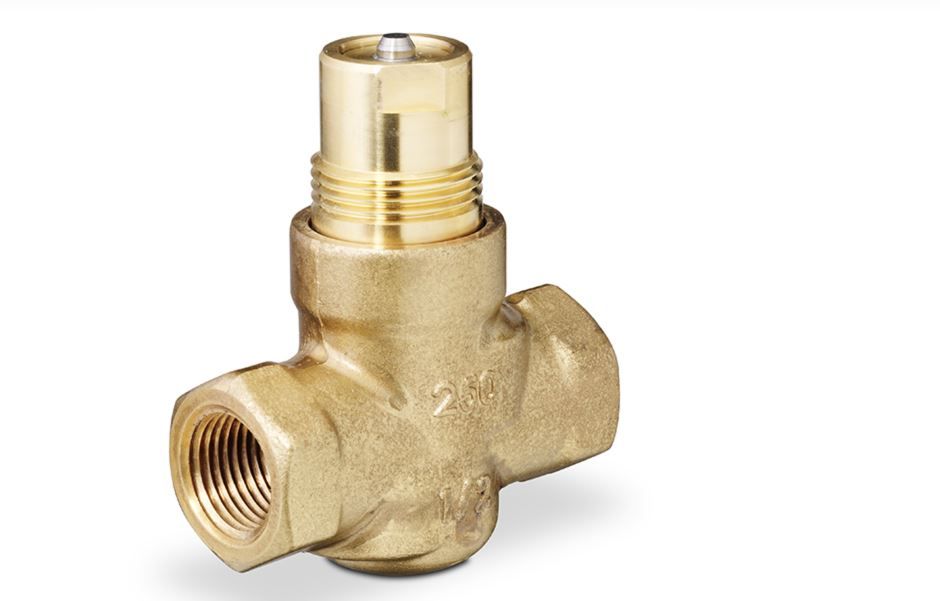

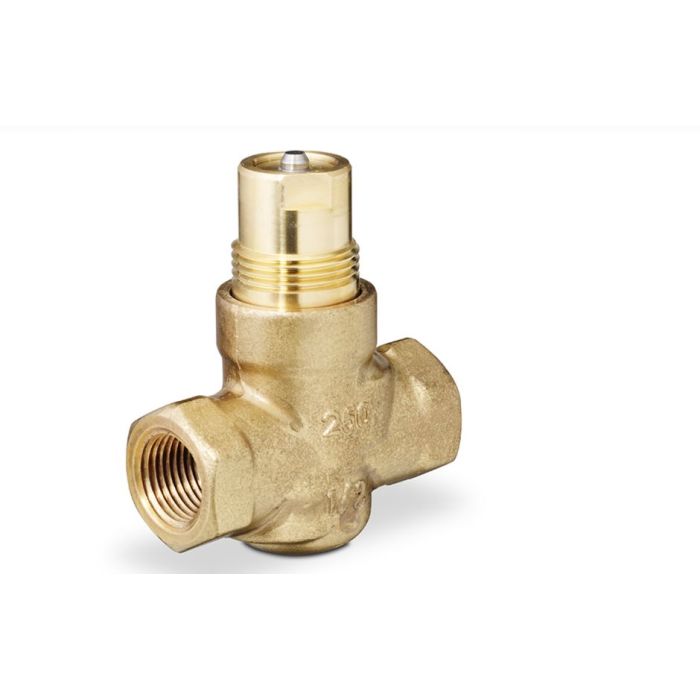

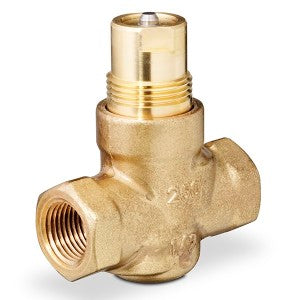

Siemens 599-02023 Globe Valve 2.5 Cv (1/2 in)

Product Description

Siemens 599-02023 is a 1/2 in two-way globe valve with a 2.5 Cv flow coefficient. The valve has stainless steel trim, normally closed operation, and an ANSI Class 250 body with ANSI Leakage Class IV (0.01% of Cv). It is designed for use with pneumatic or electronic actuators (7/32 in stroke) and is suitable for control of hot/chilled water, steam, and glycol solutions up to 50% over an operating range of 35 F to 250 F.

• 1/2 in female NPT x female NPT connection, 2-way globe configuration, Cv 2.5
• Stainless steel trim, ANSI Class 250 body, ANSI Leakage Class IV (0.01% of Cv)
• Actuator compatible: 7/32 in (5.5 mm) stroke; required actuator force ~67 lbf (300 N); rated steam service up to 15 psi

Product Highlights

1/2 in 2-way globe valve, 2.5 Cv, FNPT x FNPT, stainless steel trim, ANSI 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02023
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• MPN: 599-02023
• Product Type: Globe valve
• Valve Type: 2-way
• Connection Size: 1/2 in
• Connection Type: Female NPT x Female NPT (FNPT x FNPT)
• Flow Coefficient (Cv): 2.5
• Trim Material: Stainless steel
• Body Material: Bronze (body) with stainless steel trim
• Fail Position: Normally closed
• ANSI Body Class: ANSI Class 250
• ANSI Leakage Class: Class IV (0.01% of Cv)
• Flow Characteristic: Modified equal percentage
• Service: Hot/chilled water, steam, glycol solutions up to 50%
• Operating Temperature: 35 F to 250 F (approx. 2 C to 121 C)
• Actuator Compatibility: Designed for pneumatic or electronic actuators
• Actuator Stroke: 7/32 in (5.5 mm)
• Required Actuator Force: 67 lbf (300 N)
• Close-off Pressure: 250 PSI
• Rangeability: Greater than 100:1 for Cv > 1.0
• Country of Origin: United States
