SIEMENS 599-02017 MT Series 1/2 in 2-Way Valve 0.63 Cv NC Modified Equal Percent

Product Description

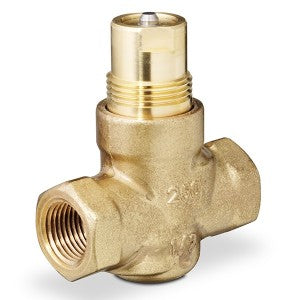

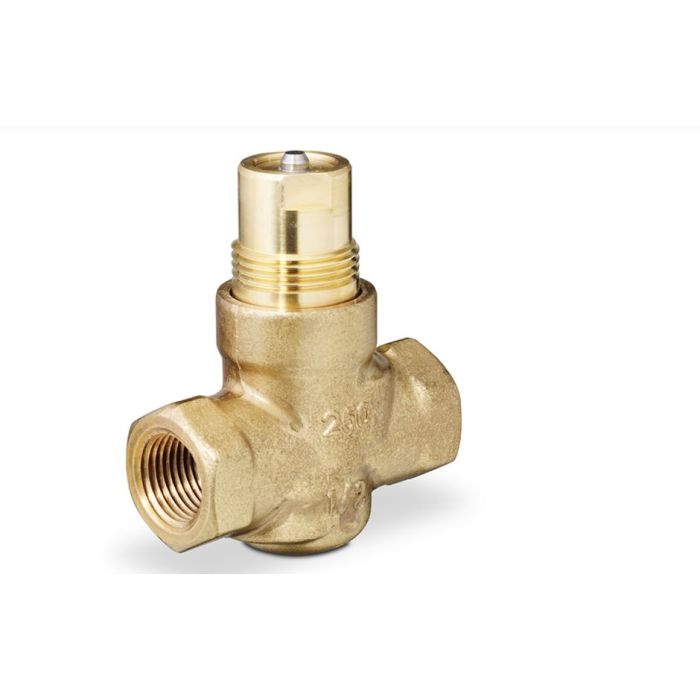

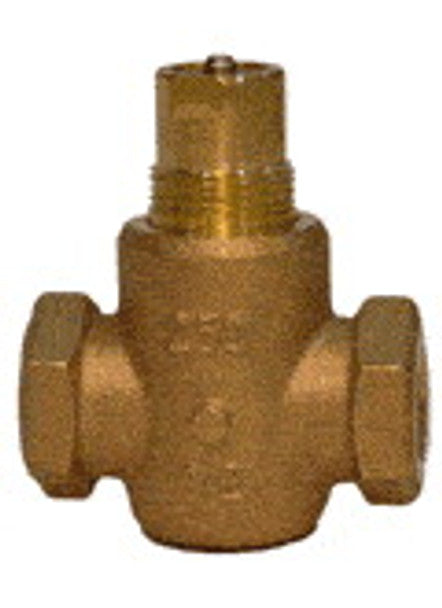

The SIEMENS 599-02017 MT Series valve is a reliable 2-way valve designed with a size of one half inch and a flow coefficient of 0.63 Cv. This valve operates in a normally closed configuration and utilizes a modified equal percentage flow characteristic. The stainless steel trim and female x female NPT connections comply with ANSI Class 250 standards.

• UL Listed for plenum installations
• Direct coupled installation requires no tools
• Manual override feature with automatic unlock

Product Highlights

This valve is suitable for both pneumatic and electronic actuators, making it versatile for numerous applications.

Product Information

Standard Information

• Type: Valve
• Service: Water, steam, and glycol solutions up to fifty percent

Technical Specifications

• Connection: NPT
• Cv: 0.63 Cv
• Trim Material: Stainless steel
• Pattern: 2-way
• Size: one half inch
• Supply Voltage: 24 VAC ± 20%, 120 VAC ± 20%, 50/60 Hz
• Supply VA: 9.8 VA for two-position actuators; 0.8 VA for three-position actuators; 2.5 VA for proportional actuators (0-10 VDC)
• Stroke Time: 35 seconds for two-position actuators; 150 seconds for three-position actuators; 34 seconds for proportional actuators
• Operating Temperature: Forty-one to one hundred twenty-two degrees Fahrenheit (five to fifty degrees Celsius)
• Operating Humidity: 0% to 90% RH non-condensing
• Enclosure Rating: NEMA 1 (indoor use only)
• Approvals: CE, EMC directive 89/336/EEC, 73/23/EEC low voltage; UL File #E220114
• Flow Characteristic: Modified equal percentage
• Operating Conditions: Thirty-five to two hundred fifty degrees Fahrenheit (two to one hundred twenty degrees Celsius)
• Close Off Pressure: Two hundred fifty PSI
