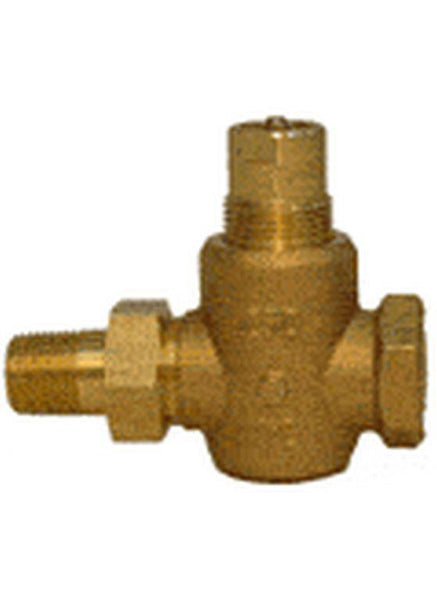

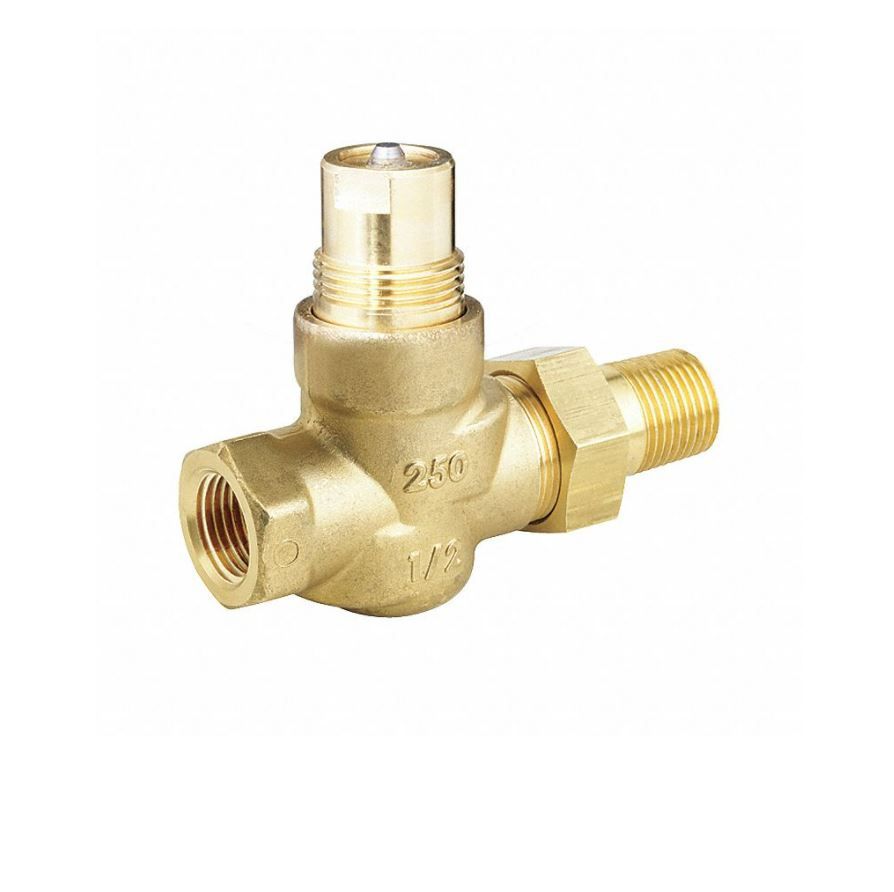

Siemens 599-02011 Globe Valve 1/2 in NPT (4 Cv)

Product Description

Siemens 599-02011 is a two-way globe valve, normally closed, with a 4.0 Cv flow coefficient and 1/2 in NPT connection. The valve features brass trim, a female x union male connection, ANSI Leakage Class IV and an ANSI Class 250 body rating. It is designed for use with pneumatic or electronic actuators with a 7/32 in (5.5 mm) stroke and is suitable for water, steam and glycol solutions up to 50% over an operating range of 35°F to 250°F (2°C to 120°C).

• 2-way globe valve, normally closed, 1/2 in NPT with 4.0 Cv flow coefficient
• Brass trim; female x union male connection; ANSI Leakage Class IV and ANSI Class 250 body rating
• Compatible with pneumatic or electronic actuators (7/32 in / 5.5 mm stroke); suitable for water, steam and glycol solutions up to 50%; operating temperature 35°F to 250°F (2°C to 120°C)

Product Highlights

1/2 in NPT 2-way globe valve, 4.0 Cv, brass trim, ANSI Class 250, actuator compatible

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-02011
• Country of Origin: United States of America

Technical Specifications

• Brand: Siemens
• MPN: 599-02011
• Product Name: Globe valve, 2-way
• Series: Powermite MT
• Valve Type: 2-way globe valve
• Action: Normally closed
• Size: 1/2 in NPT
• Connection: Female x union male (NPT)
• Flow Coefficient (Cv): 4.0
• Trim Material: Brass
• Body Material: Brass
• Flow Characteristic: Modified equal percentage
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Pressure Rating: ANSI Class 250
• Close-off Pressure: 250 PSI
• Actuator Compatibility: Pneumatic or electronic actuators
• Stroke: 7/32 in (5.5 mm)
• Serviceable Media: Water, steam, glycol solutions up to 50%
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• Steam Rating: Rated for 15 psi steam (with stainless steel trim)
• Rangeability: Greater than 100:1 for Cv > 1.0
• Spring Range (pneumatic): 10–15 psi (other ranges available as factory assemblies)
