Siemens 599-01126 Valve HVAC Controls

Product Description

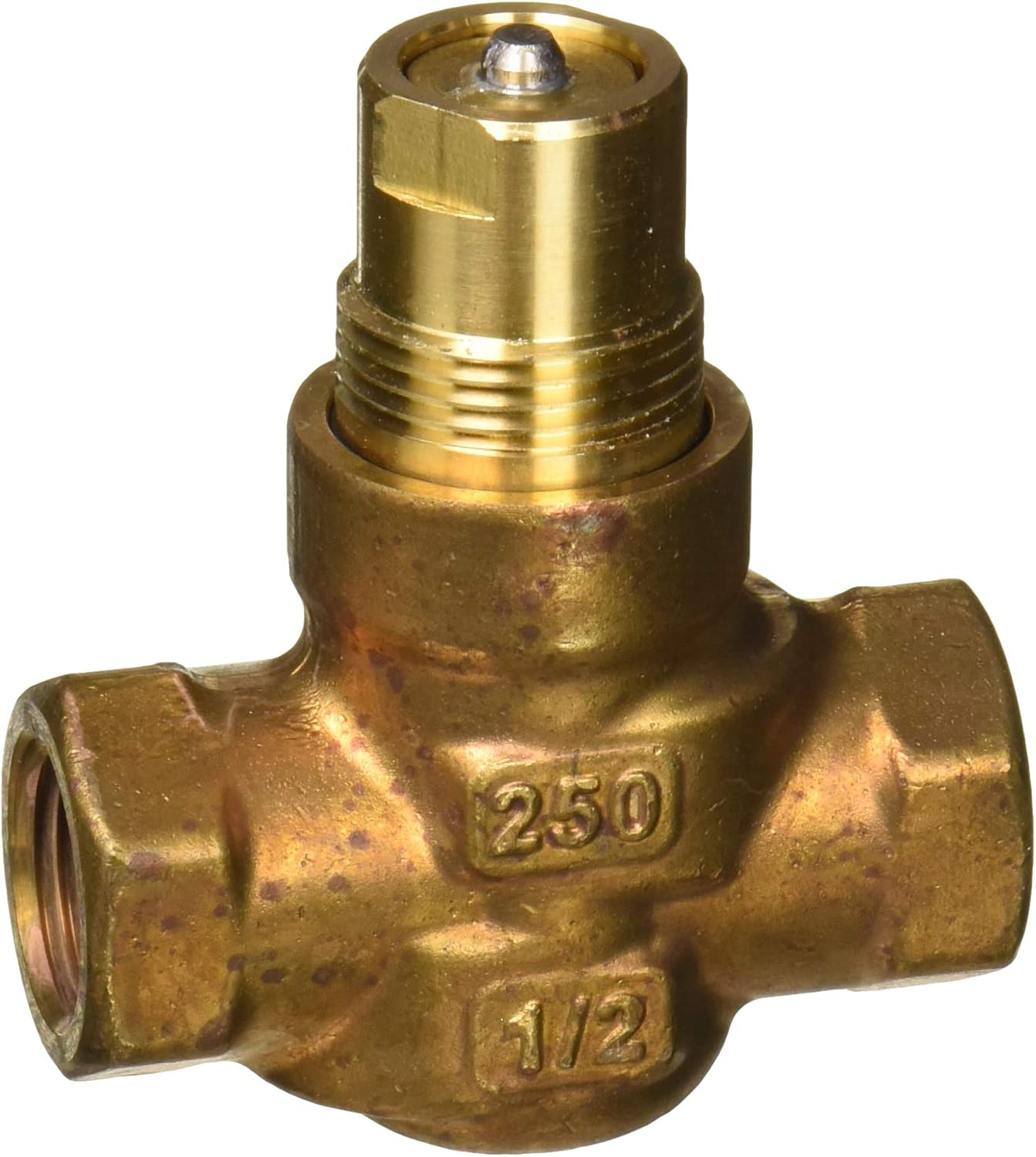

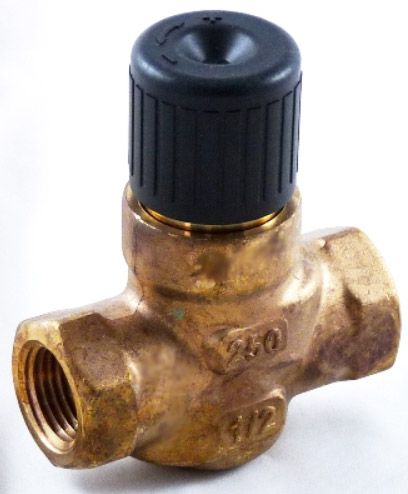

The Siemens 599-01126 is a robust control valve designed for regulating fluid flow within HVAC systems. This valve demonstrates high durability and efficiency in managing hot, chilled, or glycol-water solutions. The brass composition ensures resistance against corrosion and prolongs the valve's lifespan under varied environmental conditions.

• Designed for easy installation with female NPT connections.
• Features a maximum working pressure of 125 psi.
• Supports a wide range of ambient temperatures from 34 degrees to 122 degrees Fahrenheit.

Product Highlights

Siemens' model 599-01126 valve is known for its reliability and precision in HVAC control systems. It comes with a 4.0 Cv flow coefficient, which allows for effective fluid flow control. Its body is built to ANSI Class 250 standards, ensuring it can withstand heavy-duty usage.

Product Information

Standard Information

• Valve Size: 1/2 inch
• Valve Type: 2-Way NO

Technical Specifications

• Material: Brass
• Connection Type: FNPT x FNPT
• Flow Capacity (Cv): 4
• Max Pressure: 125 psi WOG
• Weight: 1.20 pounds
• Operating Voltage: 24VAC
