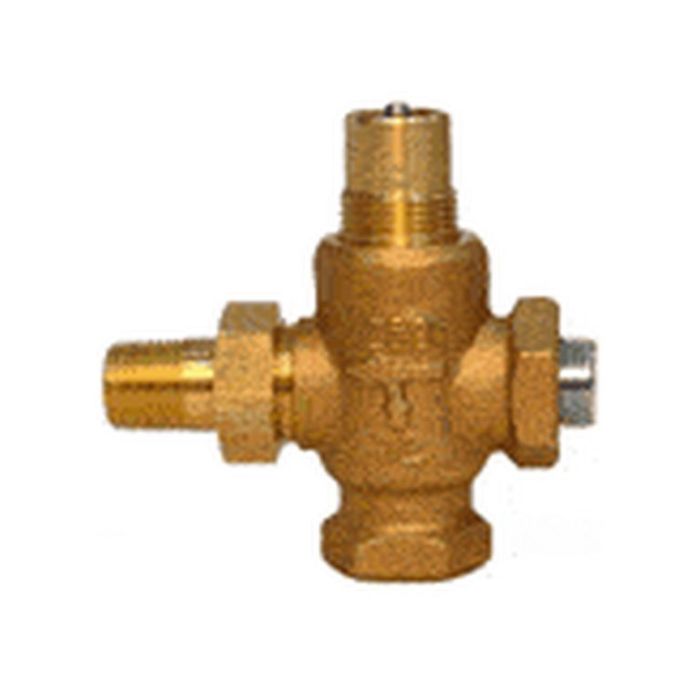

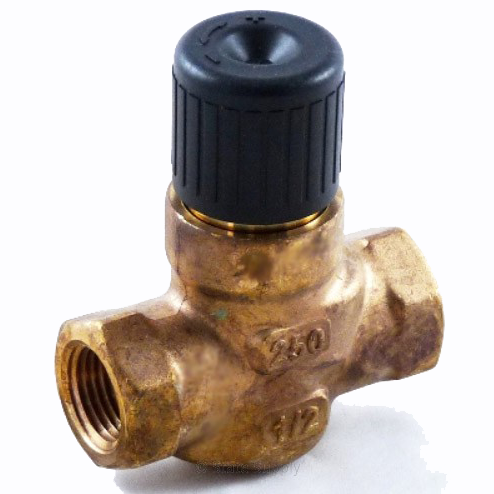

Siemens 599-01125 Globe Valve 2.5 Cv (1/2 in Angle)

Product Description

Siemens 599-01125 is a 1/2 in NPT two-way globe valve body with a Cv of 2.5 and normally open action. It has brass trim and a stainless steel stem, an angle female x union male connection, and a modified equal percentage flow characteristic. The valve carries an ANSI Class 250 body rating and ANSI Leakage Class IV (0.01% of Cv). It is suitable for water and glycol solutions up to 50% and operates from 35°F to 250°F (2°C to 120°C).

• 1/2 in NPT (angle female x union male) two-way globe valve, normally open, Cv 2.5
• Bronze valve body with brass trim and stainless steel stem; ANSI Class 250 body; ANSI Leakage Class IV (0.01% of Cv)
• Modified equal percentage characteristic; suitable for water and glycol up to 50%; operating range 35°F to 250°F (2°C to 120°C); close-off pressure 250 PSI

Product Highlights

1/2 in angle two-way globe valve body, 2.5 Cv, brass trim with stainless stem, ANSI Class 250, suitable for water/glycol systems

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-01125

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 599-01125
• Product Type: Valve body
• Series: Powermite 599 / MZ Series
• Valve Type: Globe
• Valve Pattern: Two-way
• Action: Normally open
• Connection Size: 1/2 in
• Connection: 1/2 in NPT (angle female x union male / AF x UM)
• Flow Coefficient (Cv): 2.5
• Flow Characteristic: Modified equal percentage
• Body Material: Bronze
• Trim Material: Brass
• Stem Material: Stainless steel
• Body Rating: ANSI Class 250
• Leakage Class: ANSI Leakage Class IV (0.01% of Cv)
• Operating Temperature: 35°F to 250°F (2°C to 120°C)
• Service: Water and glycol solutions up to 50%
• Close-off Pressure: 250 PSI
• Compatible Actuator: MZ Series SSB actuator (7/32 in / 5.5 mm stroke)
• Required Actuator Force: Minimum 45 pounds force (≈200 N)
• Mounting/Bonnet: Direct-coupled universal bonnet
• Spring Range: 10 to 15 psi
• Weight: 1.80 lb
