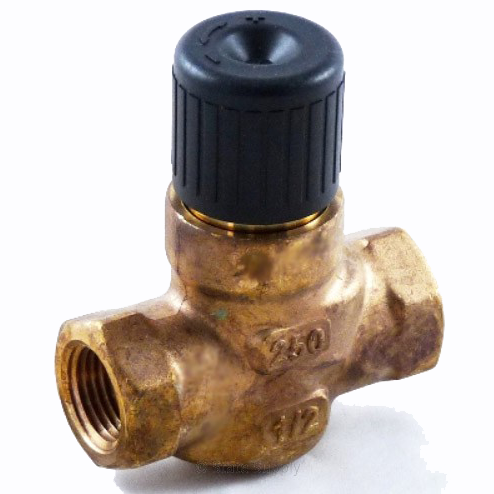

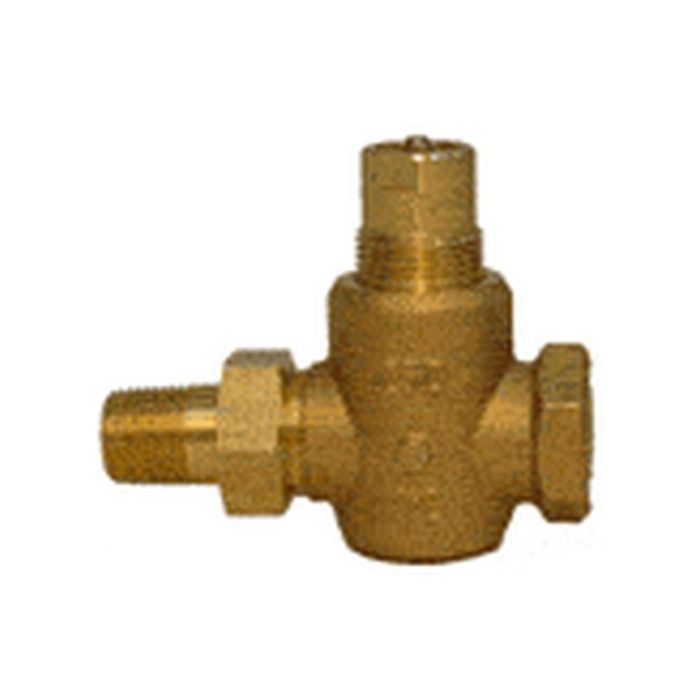

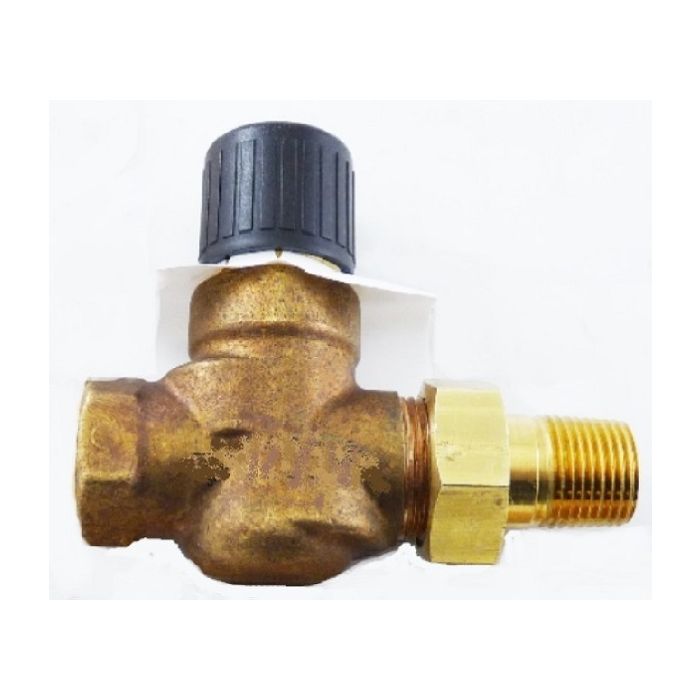

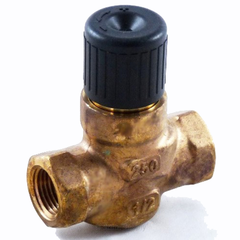

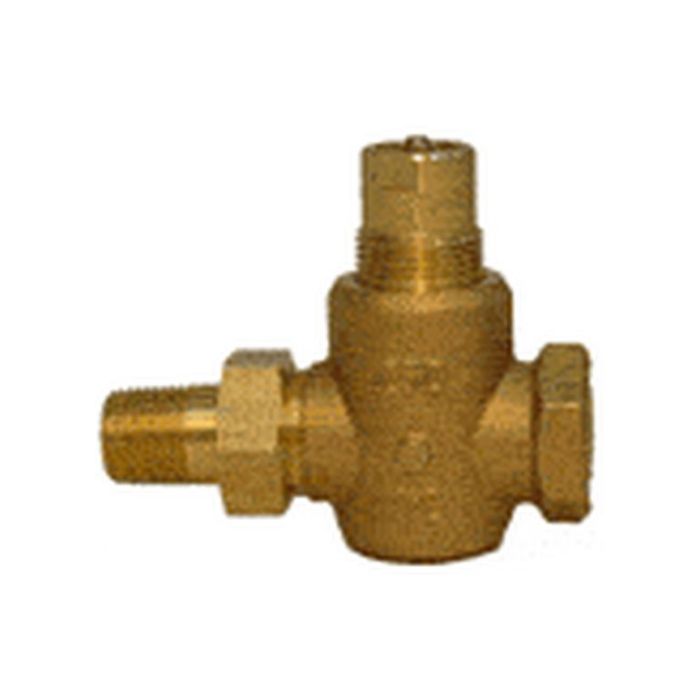

Siemens 599-01116 Globe Valve 0.4 Cv (1/2 in. NPT) 59901116

Product Description

Siemens 599-01116 is a two-way globe valve body with a 0.4 Cv flow coefficient designed for HVAC water control. The 1/2 in. NPT valve has brass trim, a stainless steel stem, and normally open action. It provides a modified equal percentage flow characteristic, ANSI Class 250 body rating, and ANSI leakage Class IV performance, suitable for water and glycol solutions up to 50% over an operating range of 35 F to 250 F (2 C to 120 C).

• 1/2 in. NPT two-way globe valve; Cv 0.4; female x union male connection
• Brass trim with stainless steel stem; normally open action; ANSI Class 250 body
• Modified equal percentage flow characteristic; suitable for water and glycol up to 50%; operating range 35 F to 250 F (2 C to 120 C)

Product Highlights

Two-way globe valve, 0.4 Cv, 1/2 in. NPT, brass trim, ANSI Class 250

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-01116
• Country of Origin: US

Technical Specifications

• Brand: Siemens
• MPN: 599-01116
• Manufacturer: Siemens
• Series: Powermite 599
• Valve Type: Two-way globe valve
• Size: 1/2 in (DN 15)
• Connection: 1/2 in. NPT (female x union male connection)
• Cv: 0.4
• Flow Characteristic: Modified equal percentage
• Trim Material: Brass
• Stem Material: Stainless steel
• Body Material: Bronze body with brass trim
• Action: Normally open
• Body Rating: ANSI Class 250
• ANSI Leakage: Class IV (0.01% of Cv)
• Operating Temperature: 35 F to 250 F (2 C to 120 C)
• Service / Media: Water and glycol solutions up to 50%
• Close-off Pressure: 250 PSI
• Actuator Force: 200 N (45 lbf)
• Actuator Compatibility: Compatible with SFA/P and SSA/P electric actuators; MZ Series SSB; pneumatic or electronic actuators
• Actuator Stroke: 7/32 in (5.5 mm)
• Bonnet: Direct-coupled universal bonnet
• Approvals: CE; UL (File E220114); EMC directive 89/336/EEC; Low voltage directive 73/23/EEC
• Weight: 1.75 lb
