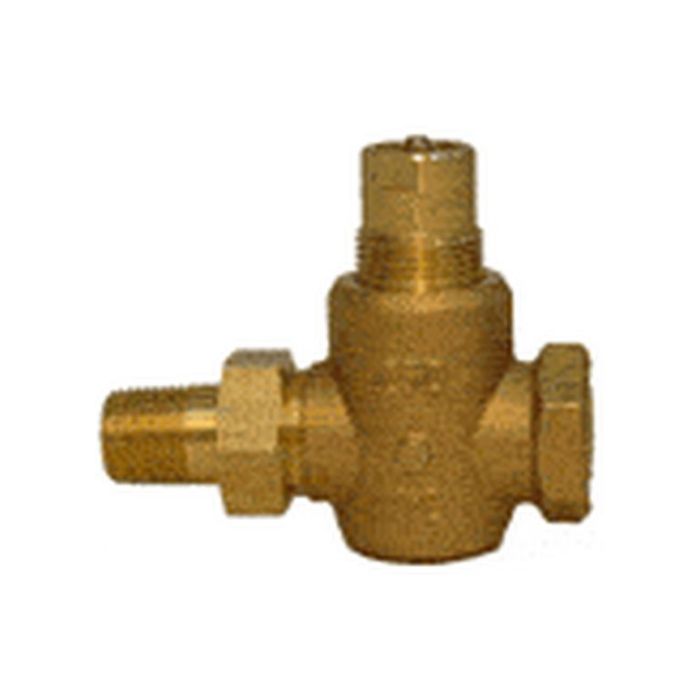

Siemens 599-01109 Globe Valve 2.5 Cv (1/2 in NPT)

Product Description

Siemens 599-01109 is a 2-way, normally closed globe valve body with a 1/2 in NPT connection and a flow coefficient of 2.5 Cv. The valve features brass trim with a stainless steel stem, a modified equal percentage flow characteristic, and ANSI Class 250 body construction. It is intended for control of water and water-glycol solutions up to 50% and operates across an approximate temperature range of 35 F to 250 F (2 C to 120 C).

• 2-way globe valve, normally closed, 1/2 in NPT connection, 2.5 Cv
• Brass trim with stainless steel stem; female NPT x union male connection; ANSI Leakage Class IV
• Suitable for hot or chilled water and water-glycol solutions to 50%; actuator compatibility: MZ series (7/32 in stroke), minimum 45 lb (200 N) force

Product Highlights

2-way 1/2 in NPT globe valve body, 2.5 Cv, brass trim, ANSI Class 250 body, designed for water and glycol solutions up to 50%

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 599-01109

Technical Specifications

• Brand: Siemens
• MPN: 599-01109
• Product Type: Globe valve
• Valve Type: 2-way
• Action: Normally closed
• Connection Size: 1/2 in NPT
• Connection Type: Female NPT x union male
• Flow Coefficient (Cv): 2.5
• Flow Characteristic: Modified equal percentage
• Trim Material: Brass
• Stem Material: Stainless steel
• Service / Media: Water, glycol solutions up to 50%
• Operating Temperature: 35 F to 250 F (2 C to 120 C)
• Body Rating: ANSI Class 250
• Leakage Rating: ANSI Leakage Class IV (0.01% of Cv)
• Max Pressure: 125 psi WOG
• Actuator Stroke Compatibility: 7/32 inch (5.5 mm)
• Required Actuator Force: Minimum 45 lb (200 N)
• Series: Powermite 599 / MZ Series
• Compatible Actuators: MZ Series actuators; compatible with SFA/P and SSA/P electric actuators (two-position, three-position/floating, 0-10 VDC proportional)
