Product Description

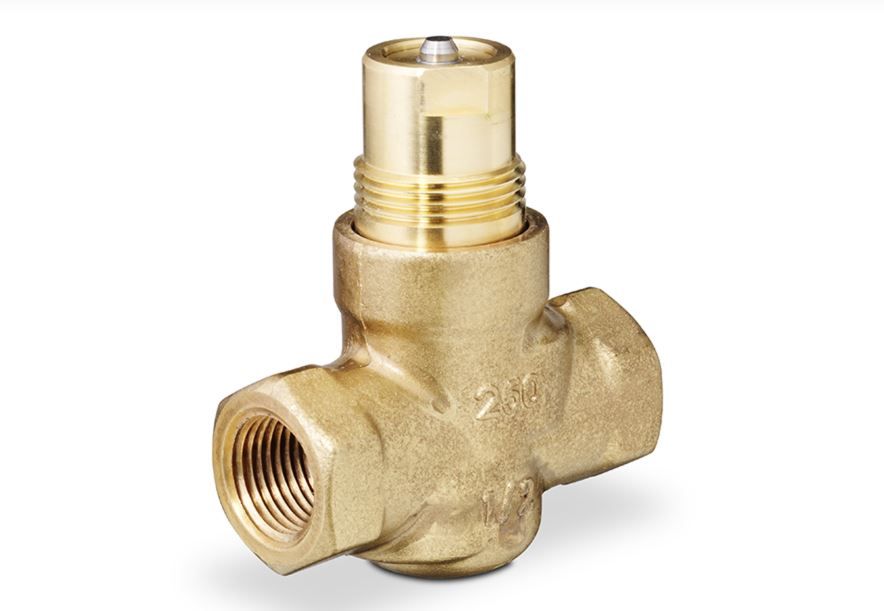

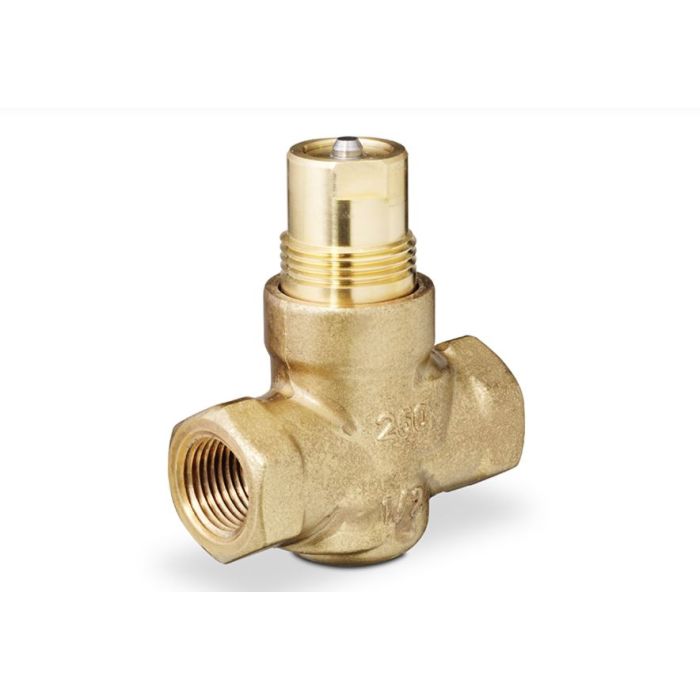

Siemens 599-01102 is a 1/2-inch normally closed (NC) two-way globe control valve with a Cv of 0.63 and a 200 N actuator requirement. It provides modified equal percentage flow control for HVAC water and water-glycol systems (up to 50%), and is compatible with MZ series pneumatic or electronic actuators. The valve features brass body and trim, a stainless steel stem, female NPT x female NPT connections, ANSI Class 250 rating, and an operating range of 35 to 250 F (2 to 120 C).
- 1/2 inch two-way normally closed valve with flow coefficient Cv 0.63 and 200 N actuator compatibility
- Brass body and trim with stainless steel stem; female NPT x female NPT connections; ANSI Class 250 and Leakage Class IV
- Modified equal percentage flow characteristic for water and water-glycol solutions (up to 50%); operating range 35 to 250 F; compatible with MZ series pneumatic or electronic actuators
Product Highlights
Globe-style HVAC control valve for zone and hydronic systems, brass construction, 0.63 Cv, ANSI Class 250, compatible with MZ series actuators.
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 599-01102
-
Country of Origin: United States
Technical Specifications
-
Brand: Siemens
-
Manufacturer Part Number: 599-01102
-
Model: 599-01102
-
Product Type: 2-way globe control valve
-
Valve Size: 1/2 inch
-
Valve Type: Normally closed (NC)
-
Flow Coefficient (Cv): 0.63
-
Actuator Force: 200 N
-
Body Material: Brass
-
Trim Material: Brass
-
Stem Material: Stainless steel
-
Connection Type: Female NPT x Female NPT (FNPT)
-
Flow Characteristic: Modified equal percentage
-
Service: Water; water-glycol solutions up to 50%
-
Operating Temperature: 35 to 250 F (2 to 120 C)
-
ANSI Rating: ANSI Class 250
-
ANSI Leakage Class: Class IV (0.01% of Cv)
-
Max Pressure: 70 psi
-
Compatibility: Designed for MZ series pneumatic or electronic actuators
-
Stroke: 7/32 inch (5.5 mm)
-
Dimensions: 2.75 x 1.25 x 3.75 inches
-
Weight: 1.3 pounds
-
Country of Origin: United States of America
-
Package Quantity: 1
