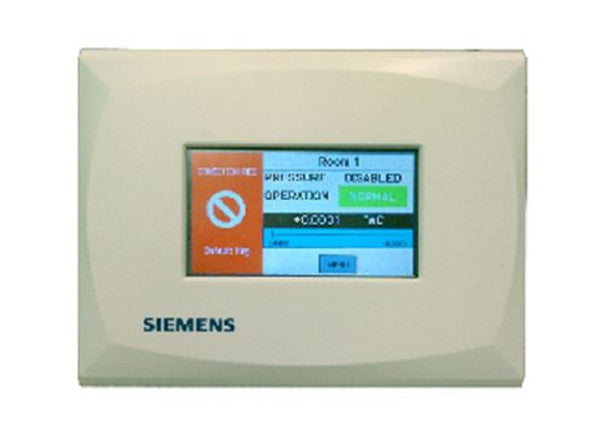

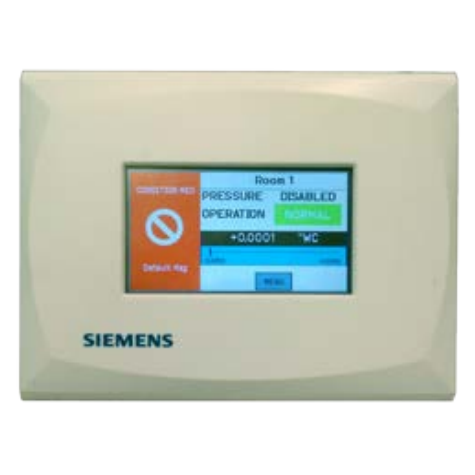

Siemens 547-301A MRMS Multi-Room Monitoring Station

Product Description

The Siemens 547-301A MRMS is a Multi-Room Monitoring Station. It is used for remote viewing and alarm monitoring of up to eight rooms. The device features an alarm system with both audible and visual alerts. It has a color display that provides clear information on room status. This unit includes an auto-discovery feature that connects to SRPM and SRCM units through BACnet MS/TP.

• High resolution color touch-screen for easy status checks
• Includes built-in audible and visual alarms
• Supports monitoring of up to eight BACnet SRCM or RPM devices

Product Highlights

This product is suitable for applications requiring low differential pressure monitoring. It connects to SRPM or SRCM devices via BACnet for effective environmental condition management.

Product Information

Standard Information

• Brand: Siemens
• MPN: 547-301A

Technical Specifications

• Case: Fire retardant plastic UL94 V-0
• Electrical Connection: Removable terminal block
• Mounting: Fits customer supplied three gang double deep electrical box
• Display Touchscreen: LCD 4.3 TFT, 480x272
• Power Operating Range: 18 to 32 VAC
• Consumption: 10W maximum, 3W typical
• Communications: BACnet MS/TP via RS485 connection
