Product Description

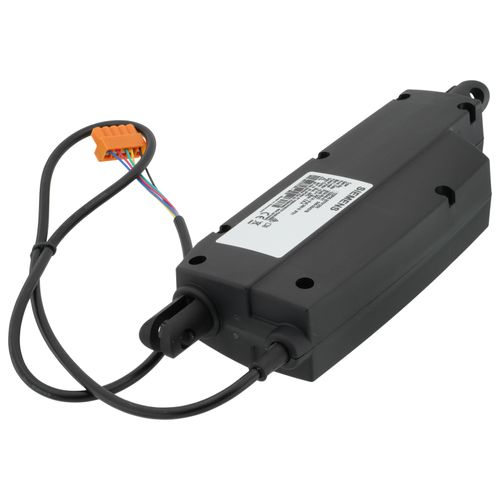

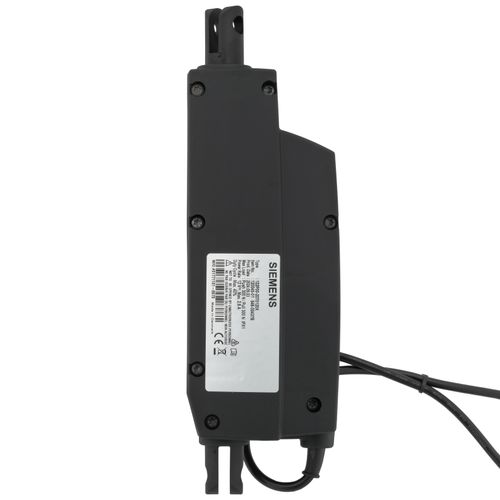

The Siemens 546-00437B is a 24 VAC laboratory electronic actuator intended for damper and fume hood control. It accepts floating/3-position (two 24 VAC digital inputs), 0-10 VDC, and 4-20 mA control signals and provides selectable fail-safe behavior as well as manual override. The actuator includes integral current sensing protection and offers multiple rotation angle options for integration with HVAC and lab room control systems.
- Operates at 24 VAC; torque 97 lb-in for damper and fume hood actuation
- Accepts floating/3-position (two 24 VAC inputs), 0-10 VDC, 4-20 mA, and Siemens pulsed signals
- Selectable power-failure options (hold last position or fail-safe NO/NC), manual override, and integral current sensing
Product Highlights
24 VAC laboratory actuator with 97 lb-in torque, multi-input control (floating/0-10 V/4-20 mA), selectable fail-safe modes, and 45/60/90 degree rotation options
Product Information
Standard Information
-
Brand: SIEMENS
-
Manufacturer Part Number: 546-00437B
Technical Specifications
-
Brand: SIEMENS
-
MPN: 546-00437B
-
Manufacturer: Siemens Building Technologies
-
Product Type: Laboratory electronic actuator
-
Product Family: Lab Controls
-
Input Voltage: 24 VAC
-
Torque: 97 lb-in
-
Control Inputs: Floating/3-position (two 24 VAC digital inputs), 0-10 VDC, 4-20 mA, Siemens pulsed signal
-
Rotation Angles: 45, 60, 90 degrees
-
Power Failure Options: Hold last position or fail-safe (Normally Open/Normally Closed)
-
Selectable Fail-safe Action: Retract or extend
-
NEC Class: Class 2 isolated interface board
-
Manual Override: At the interface board
-
Actuator Protection: Integral current sensing protection
-

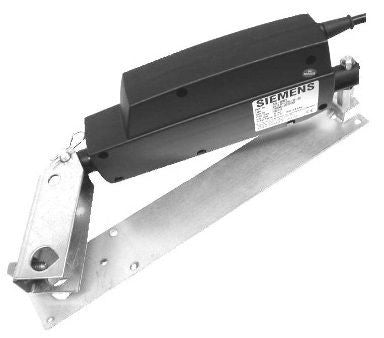

Enclosure Option: Galvanized enclosure option for 90 degree rotation mounting
-
Typical Applications: Fume hood damper actuation, room pressurization control, HVAC damper control
-
SKU: 546-00437B
-
Document - Datasheet: Document No. 149-398 (LA546 technical specification)
-
Document - Installation Instructions: Document No. 546-00092 (installation instructions)
