Siemens 540-258 Surface Mount Temperature Sensor 8 in

Product Description

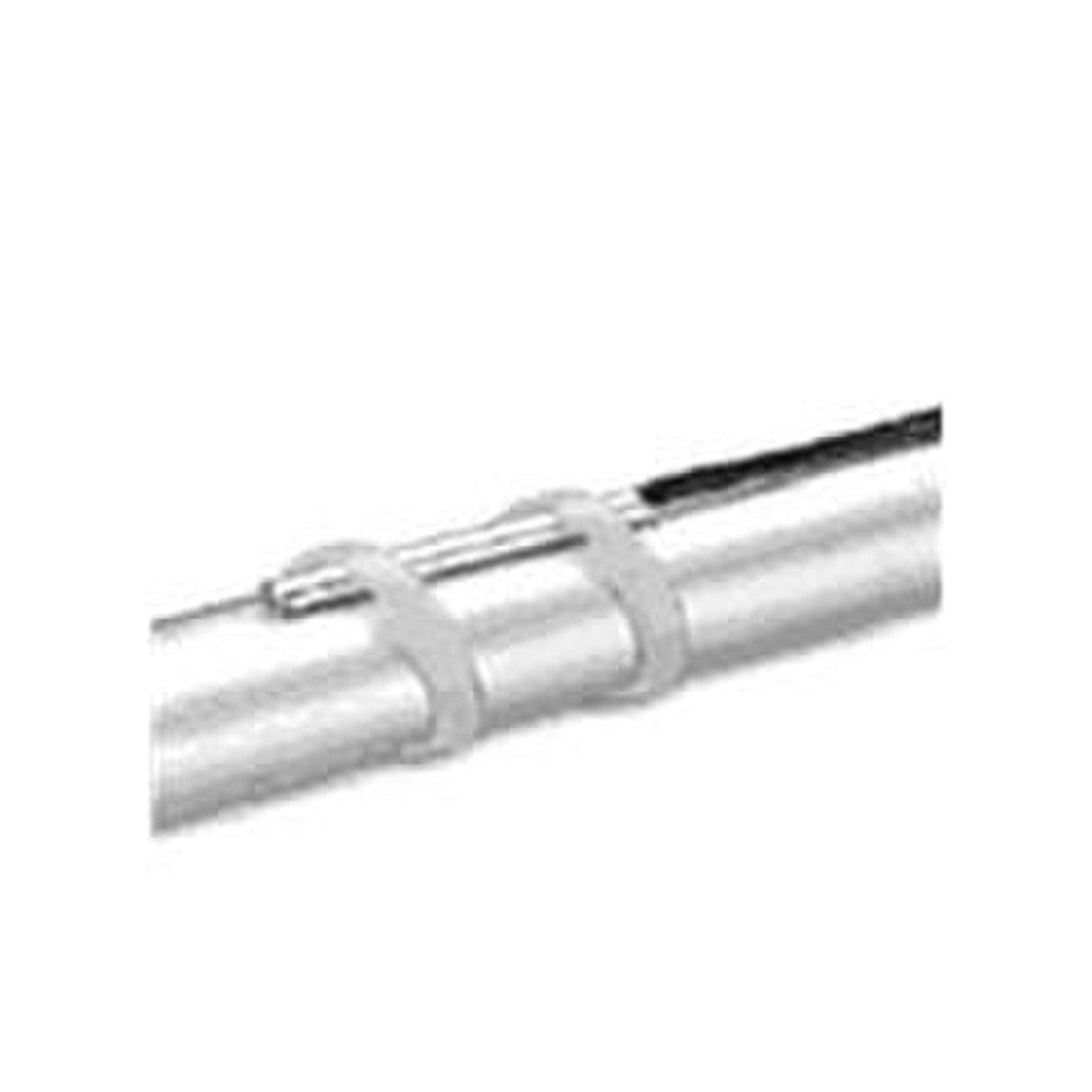

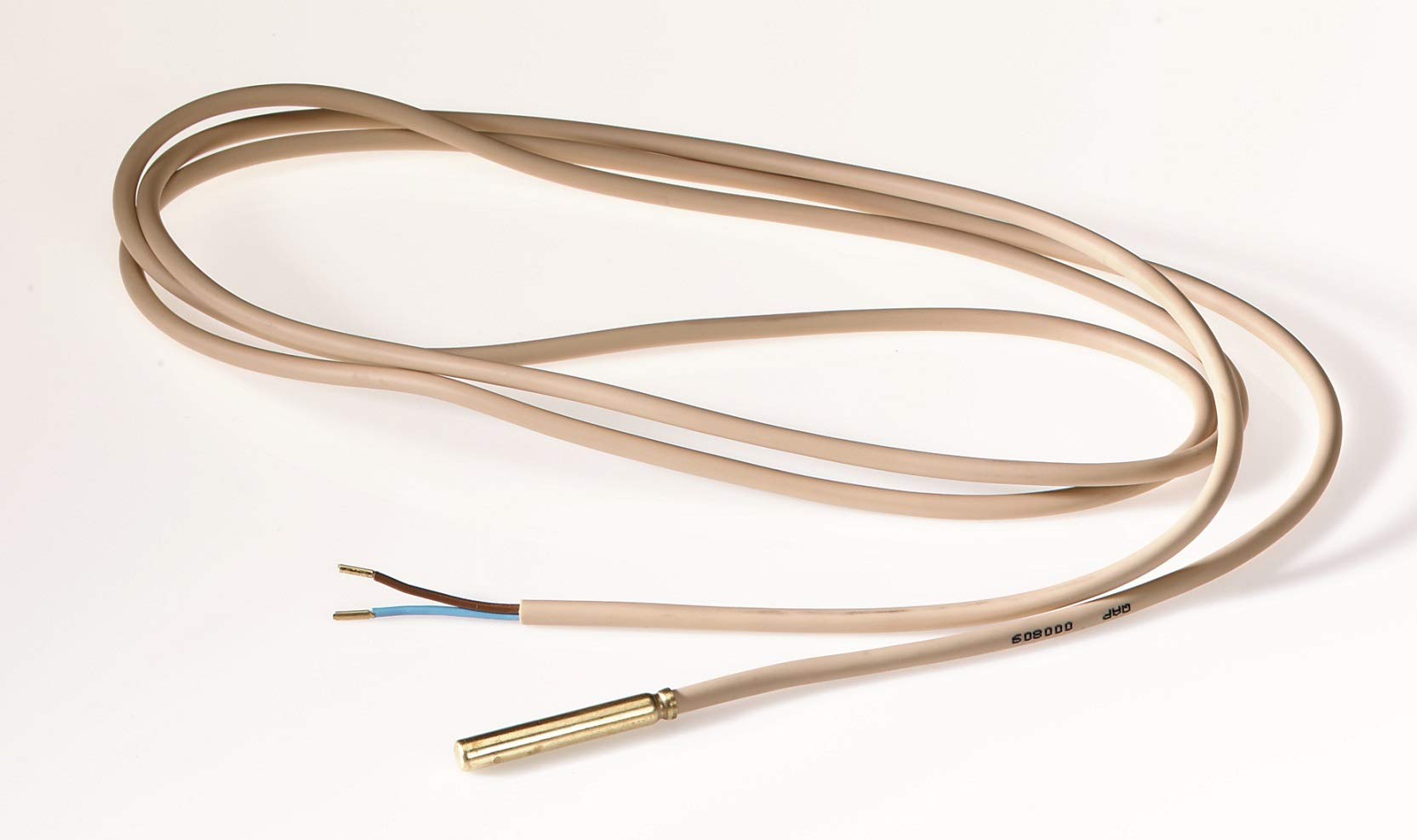

Siemens 540-258 is a surface-mount strap-on temperature sensor that uses a 100 kOhm NTC thermistor and includes an 8 in probe/cable for pipe or surface measurements. The sensor provides a 100 kOhm signal and operates over -40 to 248 F (-40 to 120 C) with an accuracy of +/-0.50 F at 77 F. It is supplied as a single hardwired unit suitable for building automation and HVAC sensing.

• 100 kOhm NTC thermistor sensing element with 100 kOhm signal characteristic
• Operating range -40 to 248 F (-40 to 120 C) with +/-0.50 F accuracy at 77 F
• Strap-on/surface-mount configuration with 8 in probe cable and hardwired connection

Product Highlights

Surface-mount strap-on temperature sensor; 100 kOhm NTC thermistor; 8 in cable; -40 to 248 F range; +/-0.50 F accuracy; single unit, hardwired connection

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 540-258
• Country of Origin: United States

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 540-258
• Product Type: Surface temperature sensor / strap-on pipe sensor
• Sensing Element: 100 kOhm NTC thermistor
• Signal Resistance: 100 kOhm
• Mounting Type: Strap-on / Surface mount (pipe clamp)
• Mounting Location: Remote
• Configuration: Probe only
• Cable Length: 8 in
• Cable Type: 18 AWG twisted, shielded pair
• Sensing Head Diameter: 1.25 in
• Temperature Range: -40 to 248 F (-40 to 120 C)
• Minimum Operating Temperature: -40 F (-40 C)
• Maximum Operating Temperature: 248 F (120 C)
• Temperature Accuracy: +/-0.50 F at 77 F
• Electrical Connection Type: Hardwired
• Housing Material: Metal
• Enclosure: No Box
• Package Quantity: 1
• Country of Origin: United States
