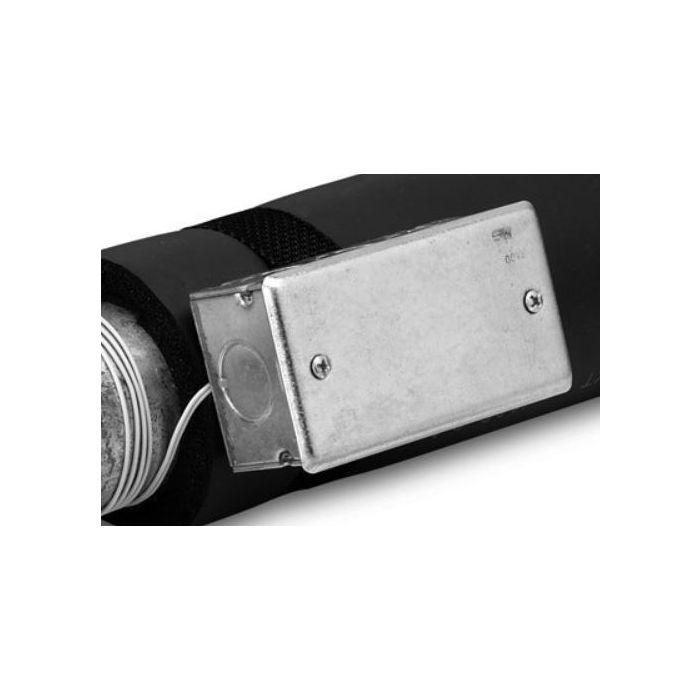

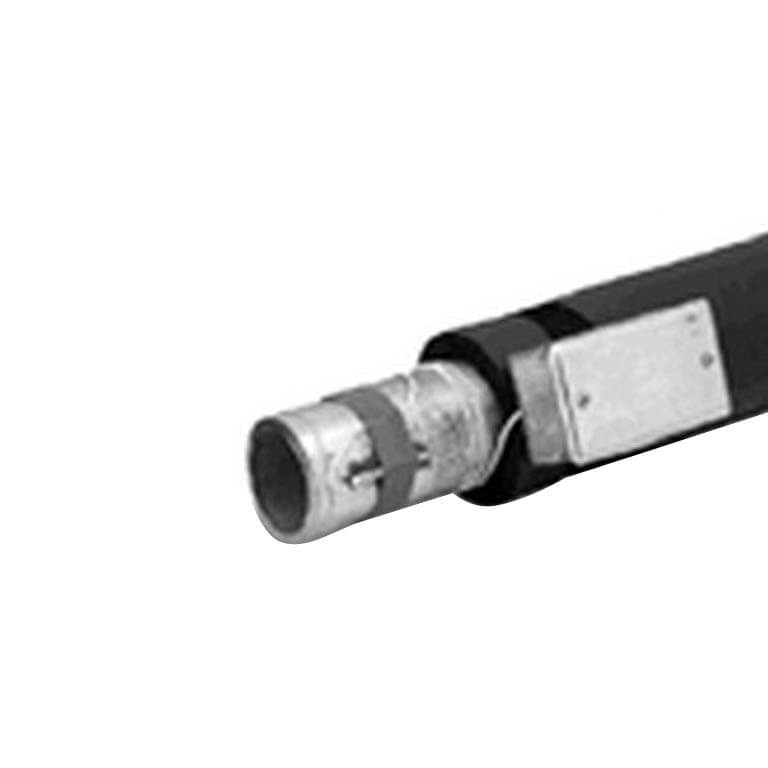

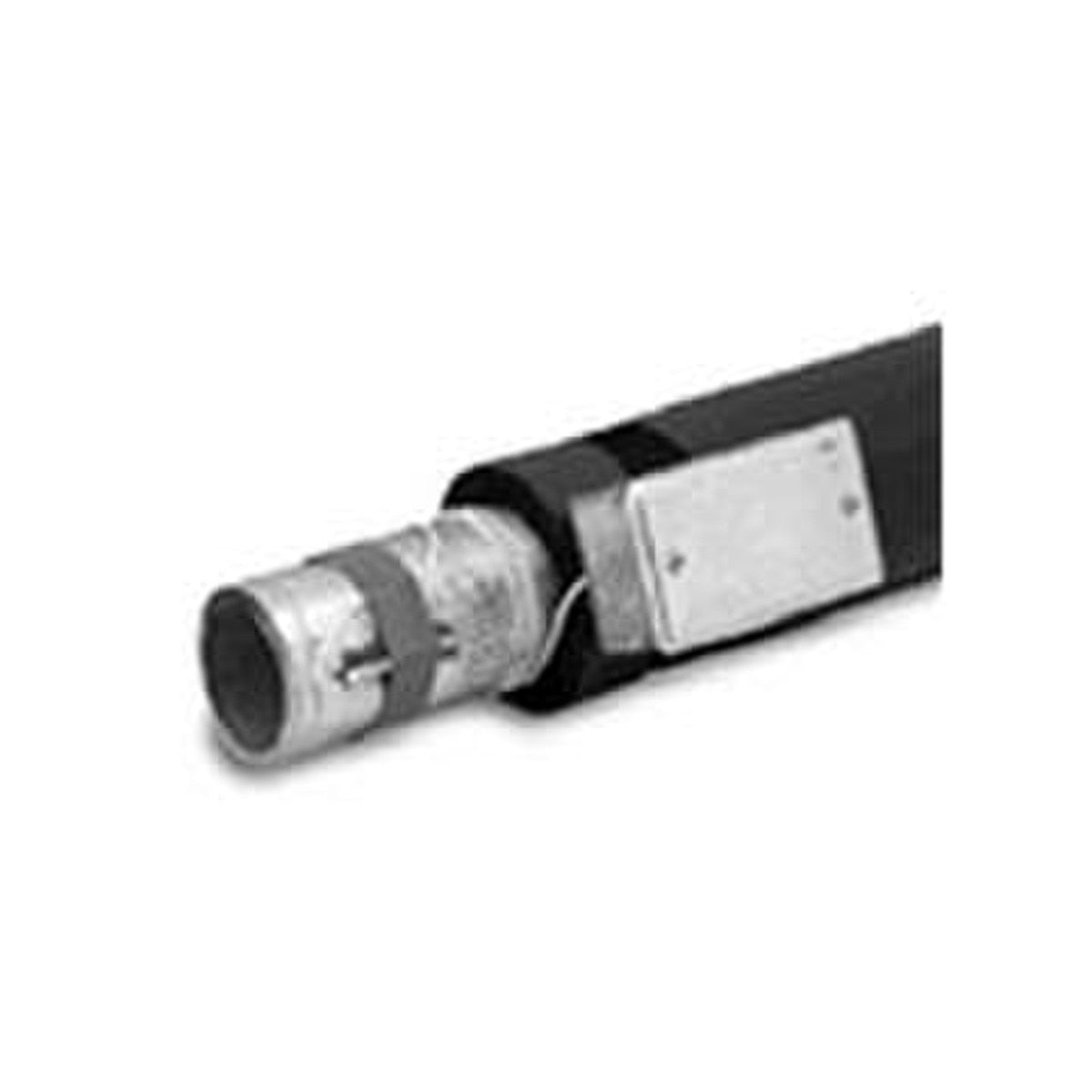

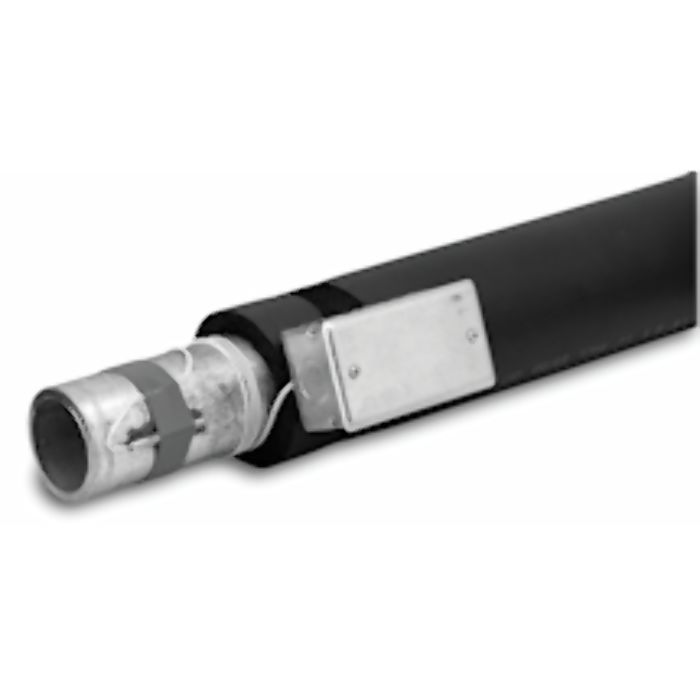

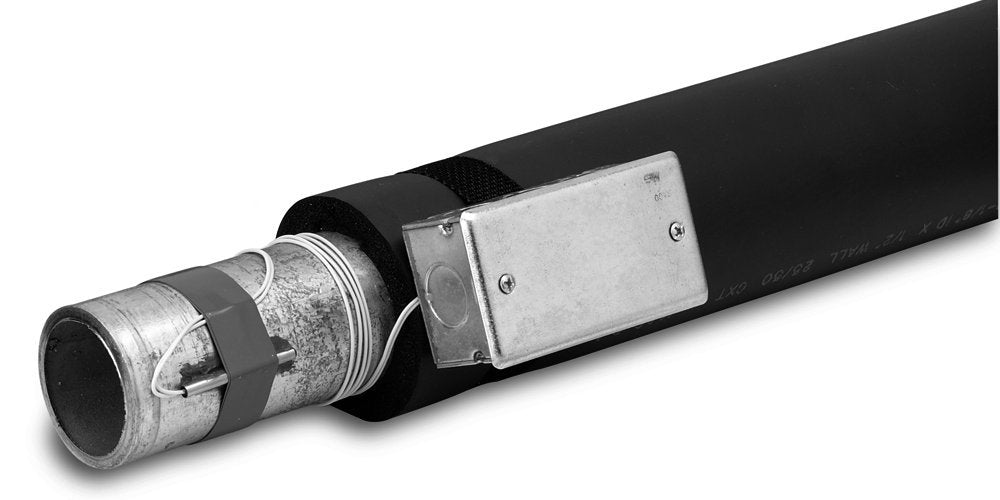

Siemens 536-780 Surface Temperature Sensor 4 To 20 mA

Product Description

The SIEMENS 536-780 surface temperature sensor provides accurate temperature sensing for controllers. It features a 4 to 20 mA output and a stainless steel housing. The sensor is suitable for hot or chilled fluids and responsive to temperature changes. It has a temperature range of 30 to 250 degrees Fahrenheit.

• Suitable For Hot Or Chilled Fluids
• Responsive To Temperature Change
• Accurate And Reliable Indication Of Temperature

Product Highlights

This surface mount sensor provides accurate loop-powered temperature sensing with a 4 to 20 mA control signal.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 536-780
• Country of Origin: Mexico

Technical Specifications

• Mounting: Strap On
• Enclosure: Junction Box
• Sensors Application: Temperature
• Temperature Sensor Type: 4 To 20 mA
• Output Signal: Analog
• Sensing Element: Platinum RTD
• Temperature Range: 30 to 250 degrees Fahrenheit
• Accuracy: +/- 1.1 degrees Fahrenheit
• Material: Stainless Steel Housing, Platinum RTD
• Product Type: Sensor
• Max Output Amperes: 0.02
• Temperature Range (F): 30°F - 250°F
• Type: RTD
• Sensor Element: 100 Ohm Platinum RTD 385
• Manufacturer: Siemens HVAC
• Part Number: 536-780
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
