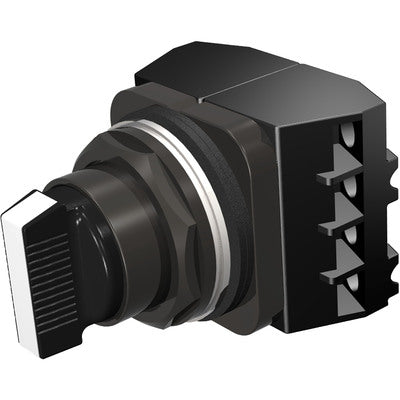

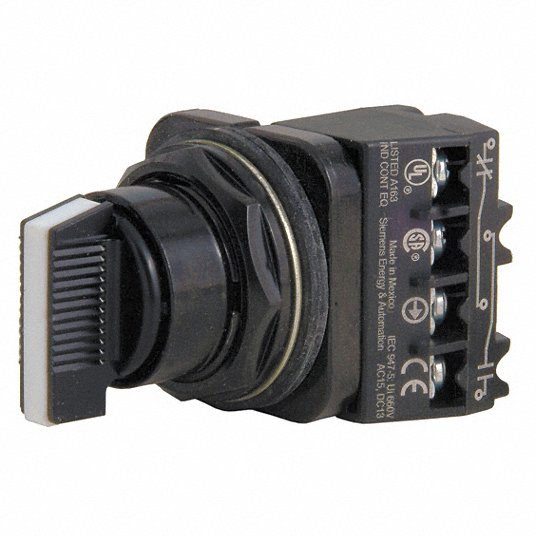

Siemens 52SX2CABA2 Non-Illuminated Selector Switch 30 mm

Product Description

The Siemens 52SX2CABA2 non-illuminated selector switch, Class 52, is a 30 mm switch with a 2NO-2NC contact configuration and maintained contact mode. It features a short lever operator, 3 positions (left, center, right throw), and a cam code C. The switch has a zinc bezel, rotary actuator, and thread connection, with NEMA 4X/IP20/IP66 enclosure rating.

• Octagonal mounting nuts
• Heavy duty rated NEMA A600/P600 contact
• Positively driven contacts

Product Highlights

This Siemens selector switch is ideal for industrial applications requiring a robust and reliable control device.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SX2CABA2
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Part Number #: 52SX2CABA2
• SKU #: 831175
• Bezel/Housing: Zinc Bezel
• Contact Rating: 60 A/12 A at 110/500 V AC
• Enclosure Type: NEMA 4X/IP20/IP66
• Environmental Conditions: -35 to 70 deg C
• Finish: BlackMax
• Type: Class 52
• UNSPSC: 39122214
• MPN: 52SX2CABA2
• Primary brand: Siemens
• Main function: Selector switch
• Product series / family name: Class 52
• Functions: Complete NEMA modular selector switch / SSw.
• Design: short lever
• Rated current: 10A (continuous current; NEMA A600) 60A (120Vac; make current; NEMA A600) 6A (120Vac; break current; NEMA A600) 30A (240Vac; make current; NEMA A600) 3A (240Vac; break current; NEMA A600) 15A (480Vac; make current; NEMA A600) 1.5A (480Vac; break current; NEMA A600) 12A (600Vac; make current; NEMA A600) 1.2A (600Vac; break current; NEMA A600) 5A (continuous current; NEMA P600)
• Shape: Round
• Diameter: 30mm installation
• Connection type: Screw-clamp connections
• Mounting mode: Flush
• Operating mode: 3-positions Cam C Left position maintained (stay-put) Center maintained (stay-put) Right position maintained (stay-put)
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Normally Closed (NC) auxiliary contacts: 2 NC contacts
• Contacts type: 2NO+2NC contacts
• Degree of protection: IP66 NEMA 1 NEMA 12 NEMA 13 NEMA 3 NEMA 3R NEMA 4 NEMA 4X
• Material: Metal bezel with rugged corrosion resistant BlackMax epoxy coating Plastic lever Metal body
• Coating material: Gold plated contacts
• Ambient air temperature for operation: -35...+70 C
• Ambient air temperature for storage: -40...+85 C
• Chemical resistance: Oil tight and corrosion resistant
• Mechanical durability (at no load): 2 000 000 operations
• Order code / Manufacturer SKU: 52SX2CABA2
• Manufacturer product status: Commercialized
• Equivalent to: 52SX2CABA2
• UPC code: 783087153639
• Compliant with standard(s): CSA UL Listed
• Location of origin: Mexico
• Mounting location: 1NO+1NC block left position 1NO+1NC block right position
• Angular positions: -45
• heavy-duty: heavy-duty
• Series: 52SX
• AC Contact Rating: 10 A @ 600 V
• Action: Maintained/Maintained/Maintained
• Bezel Material: Zinc
• Cam: C
• Contact Block Material: Metal
• Contact Form: 1NO/1NC
• DC Contact Rating: 5 A @ 600 V
• Hazardous Location Specification: Not Rated
• IP Rating: IP20; IP66
• NEMA Enclosure Rating: 4X
• Number of Positions: 3
• Operator Head Color: Black
• Operator Head Material: Plastic
• Operator Illumination: Non-Illuminated
• Panel Mounting Hole Diameter: 30 mm
• Standards: REACH Art. 33
• Switch Function @ 1st Position: On
• Switch Function @ 2nd Position: On
• Switch Function @ 3rd Position: Off
• Switch Function @ 4th Position: No Fourth Position
• Switch Head Type: Short Lever
• MFR #: 52SX2CABA2
• Zoro #: G6574662
• UPC #: 783087153639
• Size: 30 mm
• Panel Cutout Diameter: 30 mm
• Item: Selector Switch
• Basic Material: Metal
• Type of Operator: Lever
• Key Removal: No Key
• Bezel Color: Black
• Switch Operation @ Position B: OOOO
• Switch Operation @ Position A: XOXO
• NEMA Contact Rating Designation: Not Rated
• Switch Operation @ Position C: OXOX
• Switch Operation @ Position D: No Fourth Position
• Operator Type: Short Lever
• Connection Type: Thread
• Actuator: Rotary
• Contact Configuration: 2NO/2NC
• Throw: Left Center-Right
