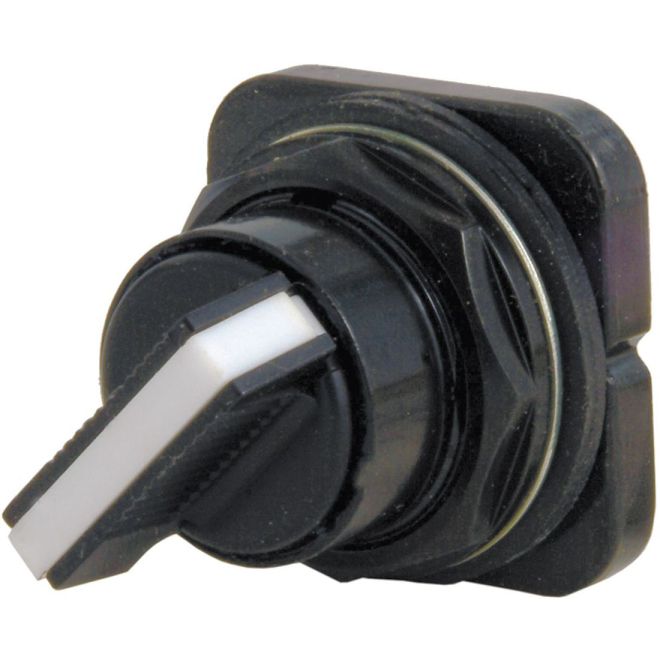

Siemens 52SX2BAB Selector Switch 30 mm

Product Description

The SIEMENS 52SX2BAB is a selector switch with a 30mm mounting size and a short lever. It is designed for situations where light indication is unnecessary. The switch features a maintained contact mode and a B cam code. It is suitable for industrial applications.

• 30mm panel mounting size
• Maintained contact mode
• Short lever operator

Product Highlights

This selector switch is ideal for industrial applications where light indication is not required.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SX2BAB
• Country of Origin: Mexico

Technical Specifications

• Type: Selector Switch
• Size: 30mm
• Operating Cap: Lever
• Positions: 3
• Throw: Left-Center-Right
• Contact Mode: Maintained
• Contacts: 1-NO
• Cam Code: B
• Manufacturer Series: 52S
• Brand: SIEMENS
• Manufacturer Part Number: 52SX2BAB
• Number of Positions: 3
• Numeric ID: 3882618
• IP Rating: IP66
• NEMA Enclosure Rating: 4X
• Operator Head Material: Plastic
• Operator Illumination: Non-Illuminated
• Panel Mounting Hole Diameter: 30
• Standards: REACH Art. 33
• Switch Function @ 4th Position: No Fourth Position
• Switch Head Type: Short Lever
• UNSPSC: 39121513
• Mounting Style: Panel
• Operator Type: Short Lever
• Enclosure Type: NEMA 4X/IP66
• Action Type: Maintained
• UOM: ea
• Application: Industrial
• Temperature Rating: -35 to 70
