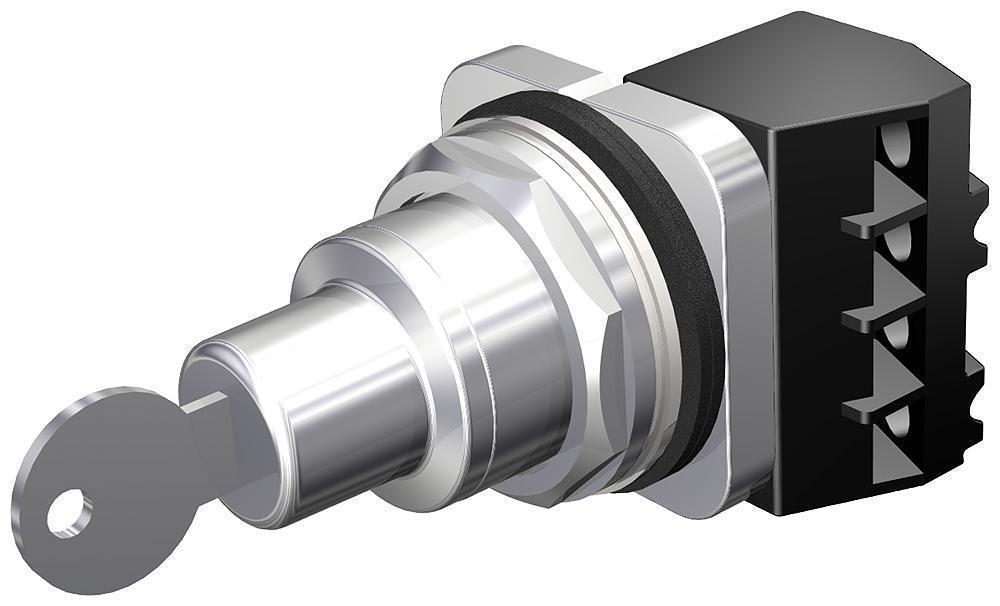

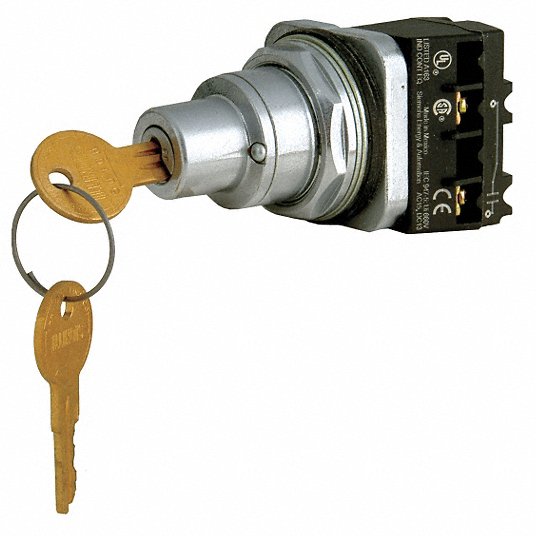

Siemens 52SC6AEA1 Kyd Sel Switch, Mtd, 2Posacam, Rem All

Product Description

The Siemens 52SC6AEA1 Kyd Sel Switch is a maintained contact mode selector switch. This Class 52, 30 mm size switch features a die cast zinc bezel, key operated actuator, and threaded terminal. It has a 1NO-1NC contact configuration and is NEMA 1/3/3R/4/4X/12/13/IP20/IP66 rated.

• Mounted on right
• Complete device key removable all positions 2 position
• Chrome metal bezel

Product Highlights

Keyed selector switch with 1NO-1NC contact, removable key in all positions, and a 30mm size.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SC6AEA1
• Country of Origin: MX

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 52SC6AEA1
• Number of Positions: 2
• Termination: screw
• UPC Code: 783087158177
• Actuator: Key Operated
• Bezel/Housing: Die Cast Zinc Bezel
• Cam Code: A
• Contact Configuration: 1NO-1NC
• Contact Rating: 60 A/12 A at 110/500 V AC
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66
• Environmental Conditions: -35 to 70 deg C Temperature Rating
• Finish: Polished Chrome
• Size: 30 mm
• Terminal Type: Threaded
• Type: Class 52
• UNSPSC: 39122214
• Model: 52SC6AEA1
• California Prop 65 Warning: N
• Country of Origin: MX
• Series: 52SC
• AC Contact Rating: 10 A @ 600 V
• Contact Form: 1NO/1NC
• DC Contact Rating: 5 A @ 600 V
• Key Removal Position: Any
• Switch Action: Maintained/Maintained
