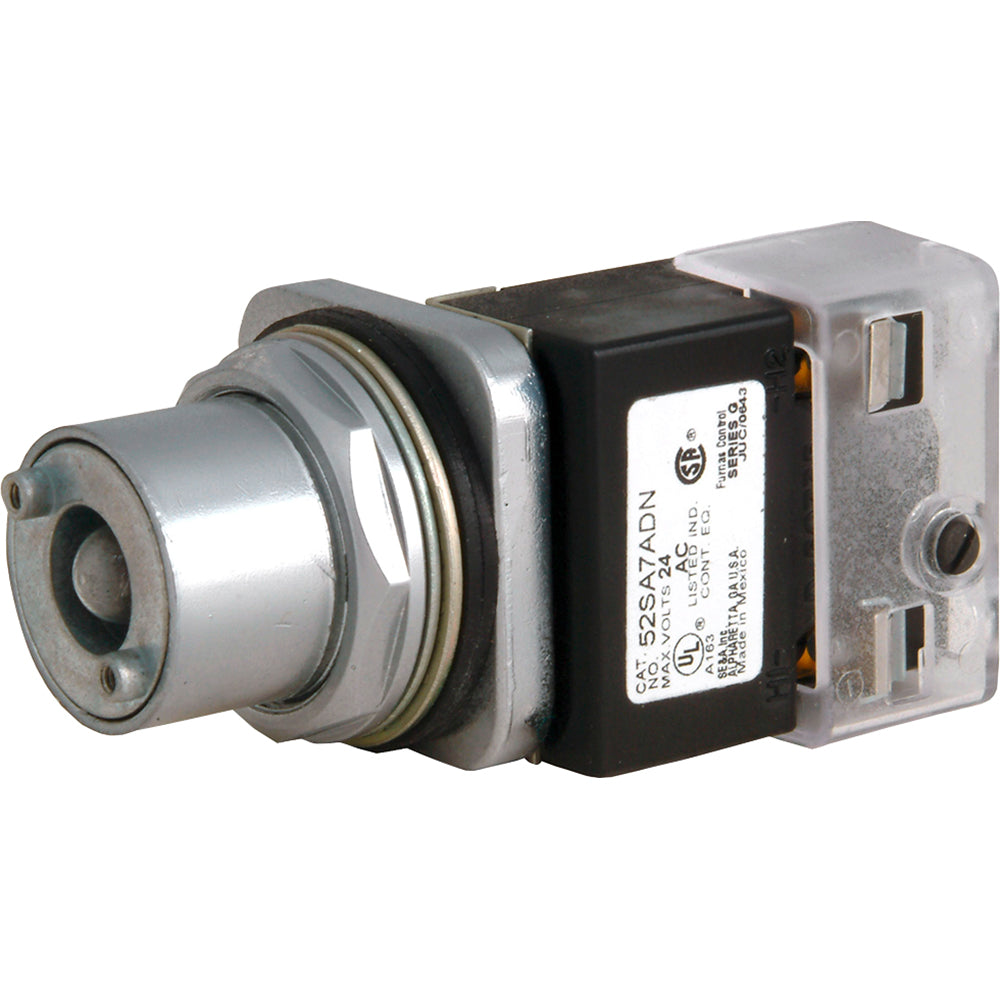

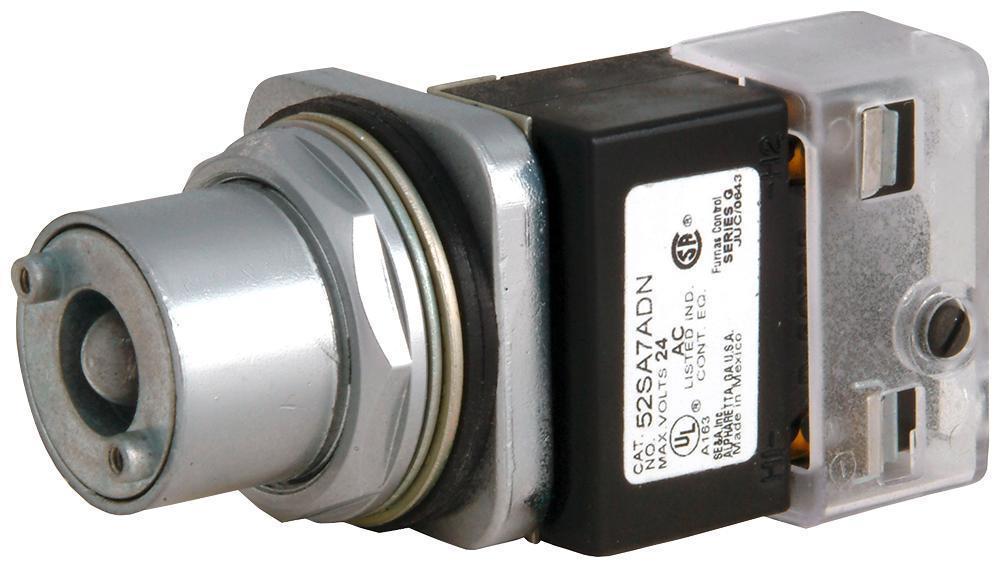

Siemens 52SA7ADN Illuminated Selector Switch 24V (2 Position)

Product Description

Siemens 52SA7ADN is an illuminated, metal, panel-mount selector switch providing two maintained positions with a short lever operator and left-to-right throw. The Class 52 heavy duty device uses full-voltage 24 to 28 VAC/DC operation with an incandescent lamp (lamp number 1829), features a NEMA 12/13 enclosure and polished chrome finish, and is rated for operation from -35 to +70 C. Cam code A and UL file E22655 are specified.

• Class 52 heavy duty, maintained contact, short lever operator, 2-position, cam code A
• Illuminated full-voltage operation 24 to 28 VAC/DC using incandescent lamp 1829
• Metal construction with polished chrome finish, NEMA 12/13 enclosure, operating -35 to +70 C

Product Highlights

2-position illuminated selector switch for panel mount; 24–28 VAC/DC; NEMA 12/13; UL E22655

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA7ADN
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 52SA7ADN
• Type: Illuminated selector switch
• Class: Class 52 heavy duty
• Number of Positions: 2
• Operator Type: Short lever
• Contact Mode: Maintained
• Throw: Left to Right
• Cam Code: A
• Illumination Type: Incandescent
• Lamp Number: 1829
• Input Voltage: 24 to 28 VAC/DC
• Enclosure Rating: NEMA 12/13
• Material: Metal
• Finish: Polished chrome
• Operating Temperature: -35 to +70 C
• Mounting Type: Panel mount
• Termination Style: Screw
• Standards/Certifications: UL file E22655; CSA Certified
• For Series: 52SA7A series
