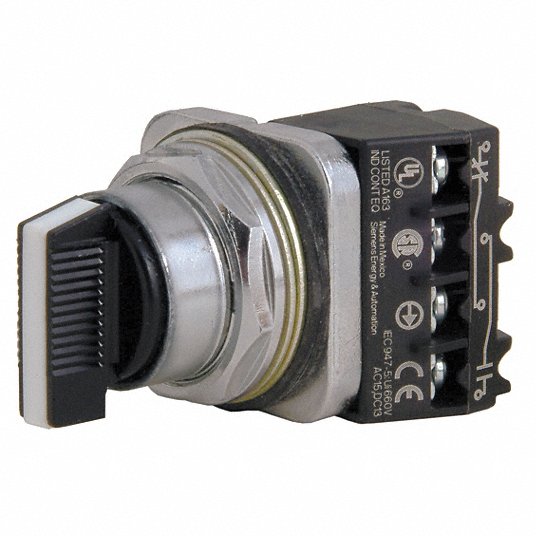

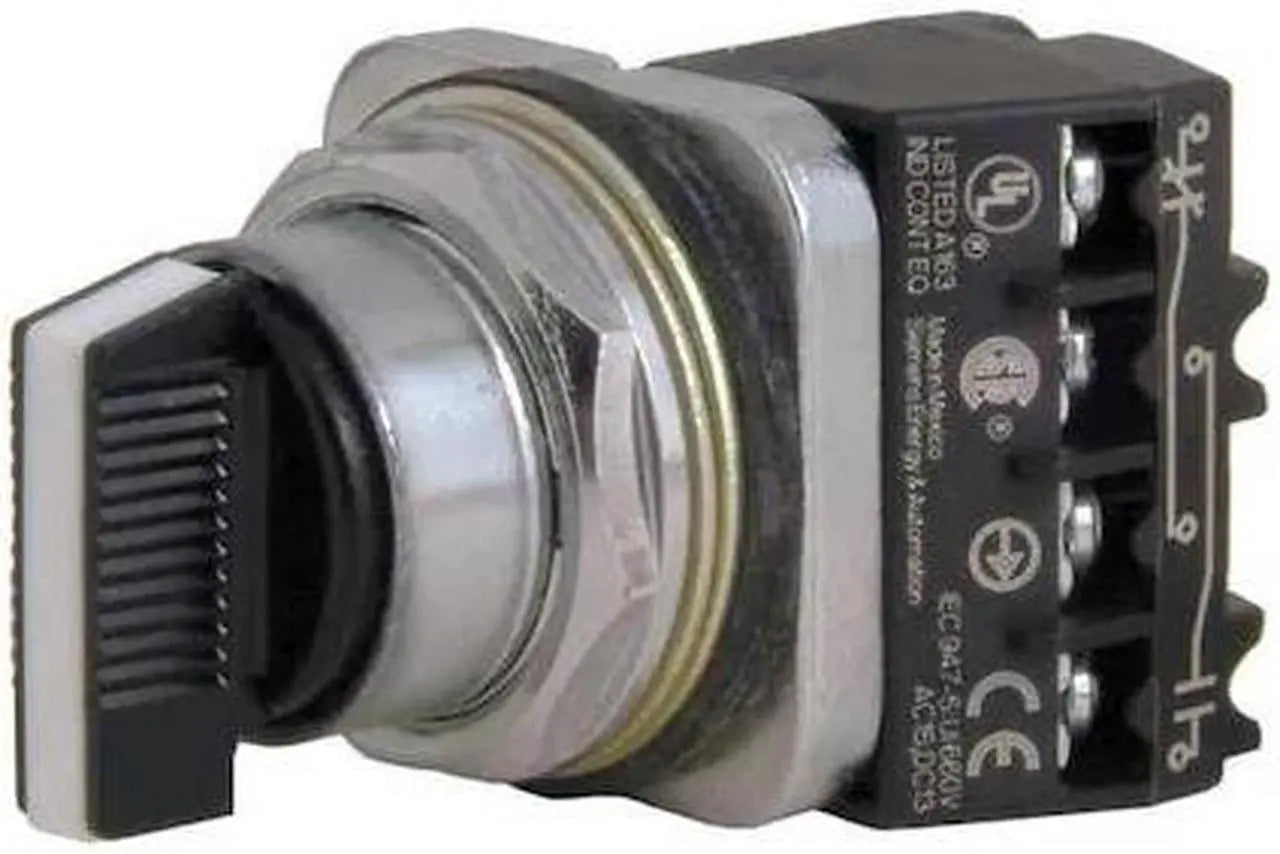

Siemens 52SA2CDBA2 Non-Illuminated Selector Switch 30 mm

Product Description

The Siemens 52SA2CDBA2 is a Class 52 non-illuminated selector switch with a 30 mm size. It features a 2NO-2NC contact configuration and a short lever operator. This selector switch is designed for heavy-duty applications and is suitable for use in various industrial environments. It is built with high-quality materials to ensure long-lasting performance and reliability.

• Features octagonal mounting nuts
• Heavy duty rated NEMA A600/P600 contact
• Enclosure Type NEMA 1/3/3R/4/4X/12/13/IP20/IP66

Product Highlights

The Siemens non-illuminated selector switch is ideal for industrial manufacturers, OEMs and end users.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA2CDBA2
• Country of Origin: MX

Technical Specifications

• Color: White
• Finish: Polished Chrome
• UNSPSC: 39122214
• Material: Metal
• Operator Type: Short Lever
• Contact Rating: 60 A/12 A at 110/500 VAC
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66
• Connection Type: Thread
• Contact Configuration: 2NO/2NC
• Environmental Conditions: -35 to 70 deg C
• Size: 30 mm
• Type: Class 52
• Throw: Left Center-Right
• Cam Code: C
• Number of Positions: 3
• Terminal Type: Screw
• Operating Temperature: -35°C ~ 70°C
• IP Rating: IP20; IP66
• Action: Momentary/Maintained/Momentary
• AC Contact Rating: 10 A @ 600 V
• DC Contact Rating: 5 A @ 600 V
• NEMA Enclosure Rating: 1; 3; 3R; 4; 4X; 12; 13
• Operator Head Material: Plastic
• Standards: REACH Art. 33; UL E22655
• Switch Function: On-Mom, Off-Mom
• Mounting Type: Panel Mount
• Illumination: Non-Illuminated
• Current Rating (Amps): 60A (AC)
• Voltage Rating - AC: 110 V
