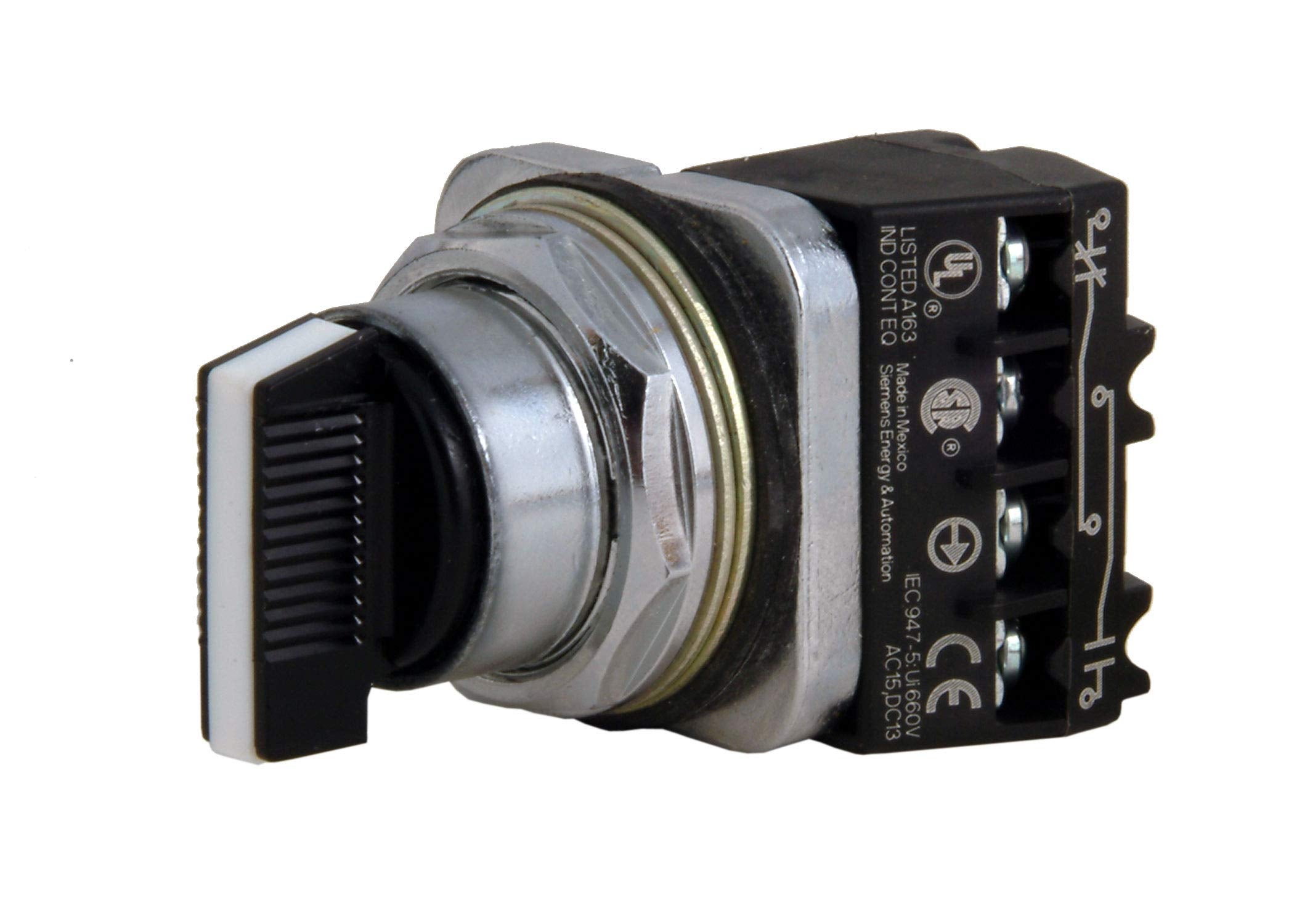

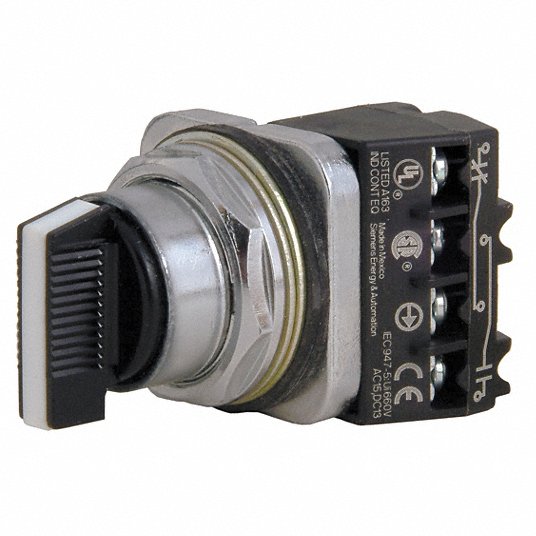

Siemens 52SA2CDBA1 Heavy Duty Selector Switch Unit 30mm White Short Lever 3 Position CAM C

Product Description

The Siemens 52SA2CDBA1 heavy-duty selector switch unit makes or breaks electrical connections as part of a system that controls a process. This 30mm unit features a short lever and a 3-position CAM C. It includes a 1NO+1NC contact block for connection to electrical wiring. Pushbuttons and indicator lights are used in applications such as manufacturing process controls and as emergency shutoffs in industrial workplaces.

• Complete Selector Switch Unit: Operator, Holder, Contact Block(s)
• 3 Position CAM C
• Meets Type 1, 3, 3R, 4, 4X, 12, 13 and Automotive Standards

Product Highlights

This heavy-duty selector switch is ideal for manufacturing process controls and emergency shutoffs. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA2CDBA1
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• MPN: 52SA2CDBA1
• Model / MPN: US2:52SA2CDBA1
• Number of Items: 1.0
• Cam: C
• Size: 30 mm
• Action: Momentary / Maintained / Momentary
• Position: 3
• IP Rating: IP20; IP66
• Standards: CSA Certified, UL Listed, REACH Art. 33
• Bezel Color: Black
• Key Removal: No Key
• NEMA Rating: 1, 12, 13, 3, 3R, 4, 4X
• Contact Form: 1NO/1NC
• Basic Material: Metal
• Bezel Material: Zinc Die Cast
• Contact Rating: 10A @ 600V AC
• Type of Operator: Extended Lever
• Operator Head Material: Plastic
• Switch Operation @ Position D: No Fourth Position
• NEMA Contact Rating Designation: A600
• Series: 52SA
• AC Contact Rating: 10 A @ 600 V
• DC Contact Rating: 5 A @ 600 V
• Hazardous Location Specification: Not Rated
• Number of Positions: 3
• Operator Head Color: Chrome
• Operator Illumination: Non-Illuminated
• Panel Mounting Hole Diameter: 30 mm
• Switch Function @ 1st Position: Off
• Switch Function @ 2nd Position: On
• Switch Function @ 3rd Position: On
• Switch Head Type: Short Lever
• UNSPSC: 39121512
