Siemens 52SA2CDB Selector Switch Operator 30 mm

Product Description

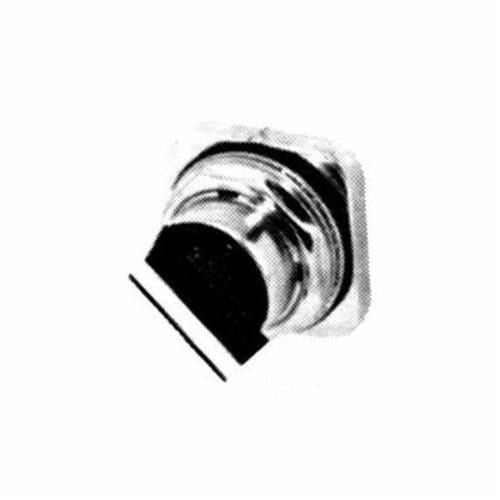

The Siemens 52SA2CDB selector switch operator is a non-illuminated Command 52 series component with a 30 mm size. It features a spring return contact mode and a short lever operator with 3 positions (left, center, right throw) and a C cam code. Suitable for NEMA 1/3/3R/4/4X/12/13/IP66 enclosures. It has a metal bezel/housing.

• Features a spring return contact mode.
• Includes a short lever operator with 3 positions.
• Suitable for NEMA 1/3/3R/4/4X/12/13/IP66 enclosures.

Product Highlights

This Siemens selector switch operator is ideal for industrial applications requiring a robust and reliable switching solution. Its durable construction and versatile design ensure long-lasting performance in demanding environments.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52SA2CDB

Technical Specifications

• Brand: Siemens
• Part Number #: 52SA2CDB
• SKU #: 105488
• UNSPSC: 39122214
• Material: Metal
• Minimum Order Qty: 1
• Order Interval: 1
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66
• Series: 52
• Type: Non-Illuminated
• Standard & Approvals: RoHS Compliant, UL File No. E22655 in Vol. 6 (7) Sec. 13 (2)
• Temperature Rating: -35 to 70 deg C
• Catalog ID: SIE52SA2CDB
• Packaging: Box
• Part Status: Active
• Requires: Contact Block(s)
• Illumination: Non-Illuminated
• Actuator Type: Selector
• Compatible Series: -
• Panel Cutout Dimensions: -
