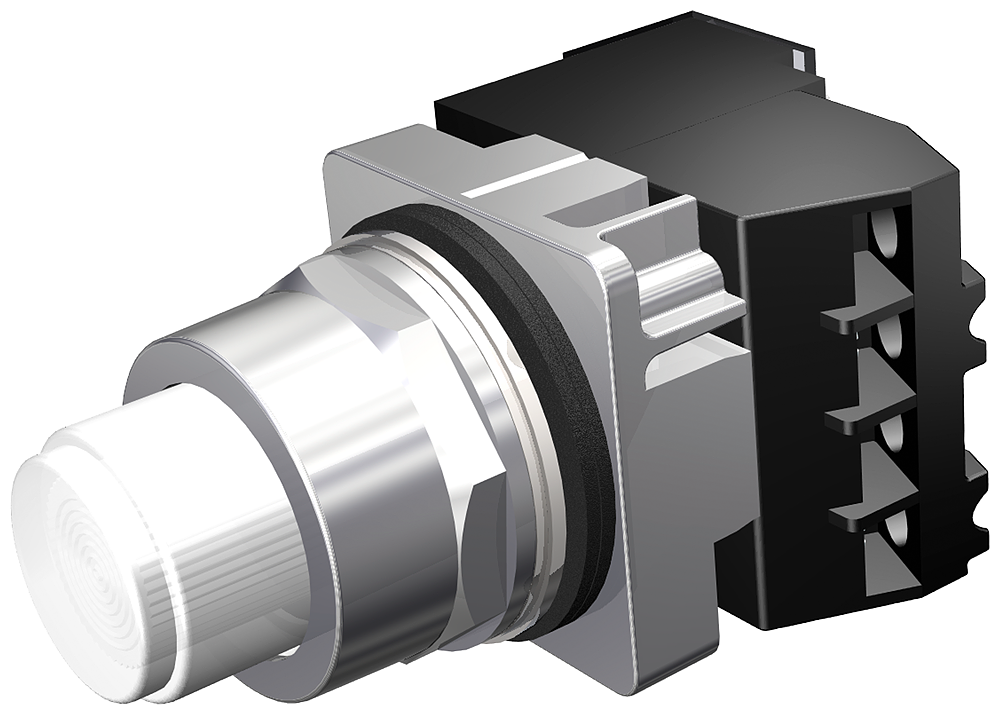

Siemens 52PT6EBAB PTT/ILL PB,MOM,FV,120

Product Description

The Siemens 52PT6EBAB is a PTT/ILL PB,MOM,FV,120V,WHT,1NO-1NC,LED. Class 52 oiltight pilot controls and accessories are designed to provide long, trouble free service in the most demanding industrial applications. These controls are oil/dust tight and meet Type 3, 4, 4X, 12 and 13 specifications. The switch is designed for panel mounting.

• Illuminated with white LED
• Mounting hole size is 30 mm
• Screw terminal termination

Product Highlights

The Siemens 52PT6EBAB is a push button switch with 1NO-1NC contacts, suitable for industrial applications requiring oil/dust tight controls.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PT6EBAB
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Product UPC: 66264388758
• Manufacturer Part Number: 52PT6EBAB
• Mounting Hole Size: 30 mm
• Operation: Push
• Series: 52PT Series
• Standards: UL CSA
• Termination: Screw terminal
• Type: Standard, Illuminated
• Illumination: Illuminated
• Illumination Color: White
• Circuit: DPST-NO/NC
• Switch Function: On-Mom, Off-Mom
• Voltage Rating - AC: 110 V
• Actuator Type: Round, Button
• Illumination Type, Color: LED, White
• Illumination Voltage (Nominal): 120 VAC/DC
• Ingress Protection: IP66 - Dust Tight, Water Resistant
• Panel Cutout Dimensions: Circular - 30.00mm Dia
• Operating Temperature: -35°C ~ 70°C
• Mounting Type: Panel Mount, Front
