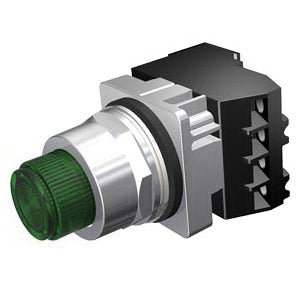

Siemens 52PT6E3AB Switch, Pushbtn, Grn, 1NO-1NC Push/Test Circ., 120V LED Lamp, UL CSA, 30mm

Product Description

The Siemens 52PT6E3AB switch is a Class 52 oiltight pilot control designed for demanding industrial applications. This 30mm illuminated pushbutton unit features a plastic lens, a 1NO-1NC contact configuration, and momentary contact with 2 positions. It is oil and dust-tight, meeting Type 3, 4, 4X, 12, and 13 specifications and includes a 120V LED lamp.

• Oiltight pilot control designed for industrial applications
• 30mm mounting hole size
• Meets Type 3, 4, 4X, 12, and 13 specifications

Product Highlights

This Siemens pilot device provides long, trouble-free service in harsh environments. It is water and oil-tight, corrosion-resistant, and UL and CSA certified.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PT6E3AB

Technical Specifications

• Brand: SIEMENS
• Illumination: Illuminated
• Illumination Color: Green
• Manufacturer Part Number: 52PT6E3AB
• Mounting Hole Size: 30 mm
• Operation: Push
• Series: 52PT Series
• Standards: UL CSA
• Termination: Screw terminal
• Type: Full Voltage Heavy Duty Push-to-Test Watertight/Oiltight
• Contact Type: 1 NO - 1 NC
• Lamp Type: LED
• Voltage: 120
• Size: 30mm
• Category: Pushbutton
