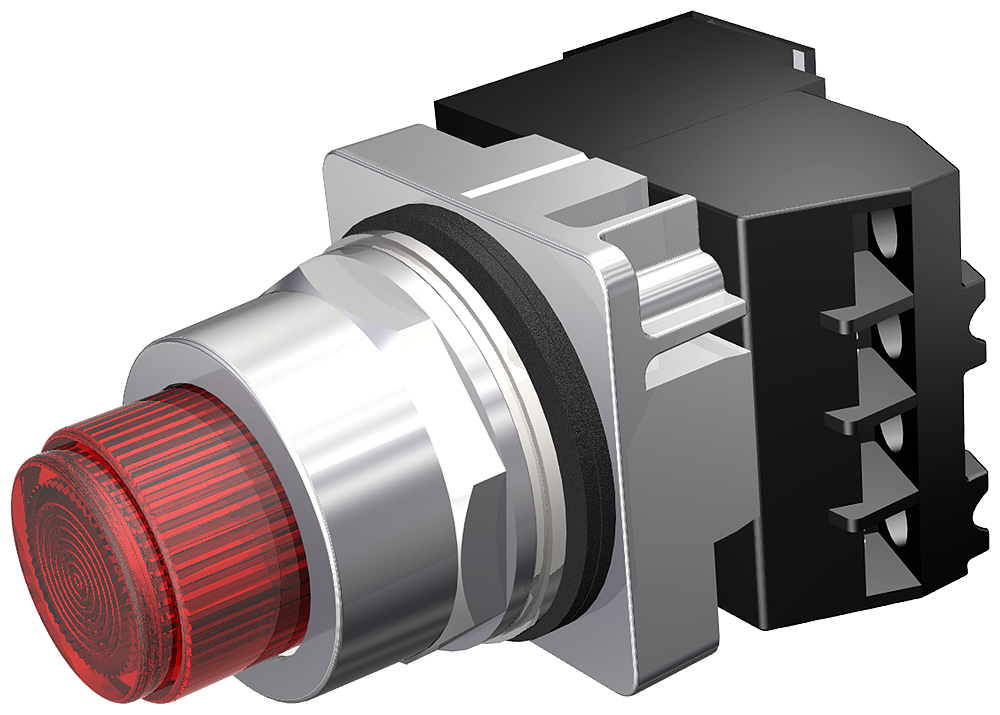

Siemens 52pt6e2ab Illuminated Push Button 30 Mm 1NC-1NO Red

Product Description

The SIEMENS 52pt6e2ab is a Class 52 corrosion-resistant, full-voltage, heavy-duty illuminated push button designed for demanding industrial control applications. Built to oil/watertight standards, this 30 mm momentary push button features a 1NC-1NO contact configuration and a red LED-illuminated extended lens for clear operator feedback. The screw terminal design simplifies field wiring, and the polished chrome metal/plastic construction is rated for enclosures up to NEMA 4X and IP66. Licensed electricians and industrial control technicians install this component in machine control panels, motor starters, and process equipment.

The 52pt6e2ab is suited for industrial environments where moisture, oils, and contaminants are present. The NEMA 1/3/3R/4/4X/12/13 and IP20/IP66 enclosure ratings make it appropriate for both indoor and outdoor panel installations in manufacturing, process control, and heavy industrial settings. The momentary push button action and 2-position operator make it a standard choice for start/stop, emergency-stop auxiliary, and indicator-lit control stations.

Key Features

• 30 mm round push button fits standard 30 mm cutout control panels
• 1NC-1NO contact configuration supports start/stop and interlock wiring schemes
• LED lamp provides long-life illumination with red extended lens for clear visual status
• Rated 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, and 12 A at 500 VAC for wide voltage compatibility
• NEMA 4X and IP66 rated for corrosion resistance in oil/watertight applications
• Screw terminal connections for reliable field wiring

Compatibility

Designed as an OEM-style replacement or new-installation push button for 30 mm Class 52 heavy-duty industrial control stations requiring oil/watertight, corrosion-resistant push button operators.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements and local codes. De-energize and lock out/tag out all power to the control panel before removing or installing this push button. Verify that the panel cutout diameter matches the 30 mm mounting requirement before installation. Do not exceed the rated contact current or voltage for the circuit being controlled.

Technical Specifications

• Size: 30 mm
• Contact Configuration: 1NC/1NO
• Contact Mode: Momentary
• Positions: 2
• Contact Rating: 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC
• Lamp Type: LED
• Lens Color: Red
• Operator Type: Push Button
• Terminal Type: Screw
• Enclosure Rating: NEMA 1/3/3R/4/4X/12/13 / IP20/IP66
• Material: Metal/Plastic
• Finish: Polished Chrome
• Operating Temperature: -35 to 70 degrees C
• Storage Temperature: -40 to 85 degrees C
• UNSPSC: 39122216

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52pt6e2ab
