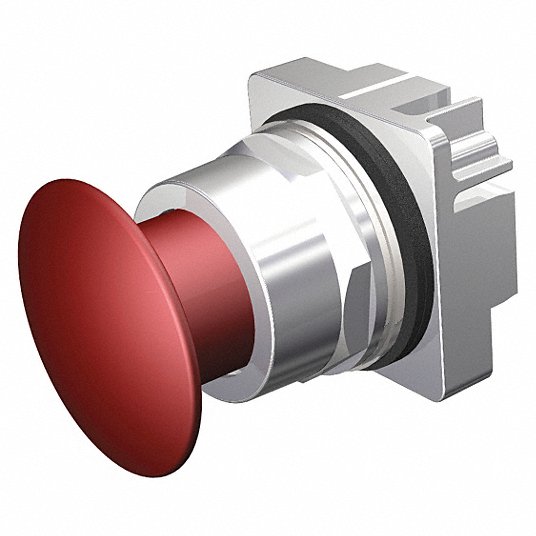

Siemens 52PP2A2 Mushroom Head Push Button 30 mm

Product Description

The SIEMENS 52PP2A2 mushroom head push button operator has large, mushroom-shaped heads that are intuitive and easy to actuate, even when wearing gloves, making them ideal for emergency stop (e-stop) buttons. These hazardous-location push-button operators don't have any lighting elements that could burn out and require replacement.

• Low Voltage
• Hazardous Location Specification: Class I, Div 2, Group A, B, C, D
• Panel Mounting Hole Diameter: 30 mm

Product Highlights

The push button operators are designed to provide long, trouble free service in demanding industrial applications and meet Type 3, 4, 4X, 12 and 13 specifications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PP2A2
• Country of Origin: Mexico

Technical Specifications

• Brand: SIEMENS
• Manufacturer Part Number: 52PP2A2
• Series: 52PP Series
• Action: Maintained
• Bezel Material: Chrome Plated Zinc Die Cast
• Features: Low Voltage
• Hazardous Location Specification: Class I, Div 2, Group A, B, C, D
• Head Material: Metal
• IP Rating: IP10; IP11; IP14; IP52; IP54; IP56; IP66
• Maintained Action Release: Push/Pull
• Mushroom Head Diameter: 44.5 mm
• NEMA Enclosure Rating: 1; 3; 3R
• Number of Indicator Lights: 0
• Number of Push Buttons: 1
• Operator Illumination: Non-Illuminated
• Operator Material: Metal
• Panel Mounting Hole Diameter: 30 mm
• Product Type: Push Button Operators
• Push Button Style: Mushroom Head
• Standards: CSA; UL Listed
• UNSPSC: 39121512
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13
• Finish: Polished Chrome
• Number of Positions: 2
• Operator Type: Mushroom Head
• Size: 30 mm
• Type: Corrosion-Resistant Heavy Duty Round Small Water/Oiltight
• Material: Metal
• Manufacturer Name: Siemens
• Mounting Type: Panel Mount
• Operation: Push/Pull Maintained
• Actuator Type: Mushroom head
• Panel Cutout Dimensions: 30mm (Round)
• Compatible Series: Siemens, 30mm
• Requires: Contact Block(s)
• Head Color: Red
• Basic Material: Metal
• NEMA Rating: 1, 12, 13, 3, 3R, 4, 4X
• Number of Operators: 1
• Actuator: Pushbutton
• Applications: Designed for mounting in sheet metal enclosures or for mounting on flush plates.
• Operating Cycles: 300k
• Operating Temperature: -35 to +70degrees C (-31 to +158degrees F)
• Temperature Rating: -31 to 158 degrees F
• Sub Brand: Command/52
