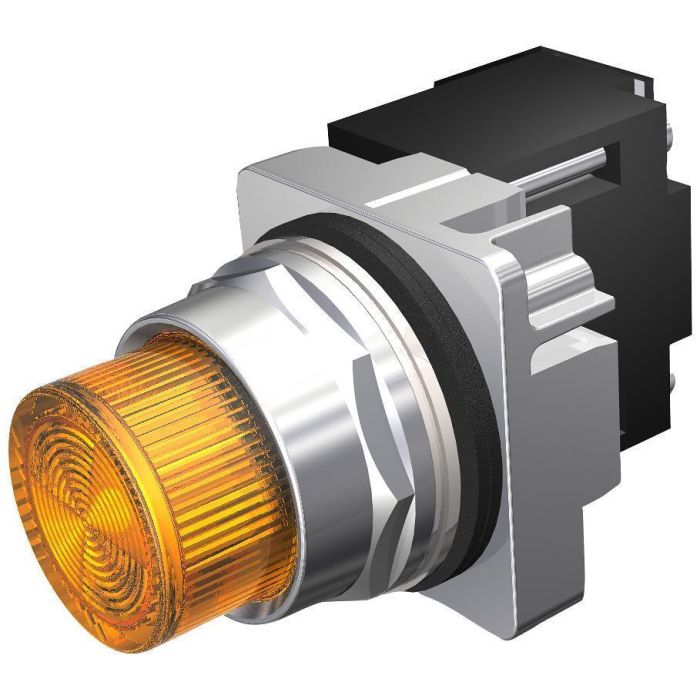

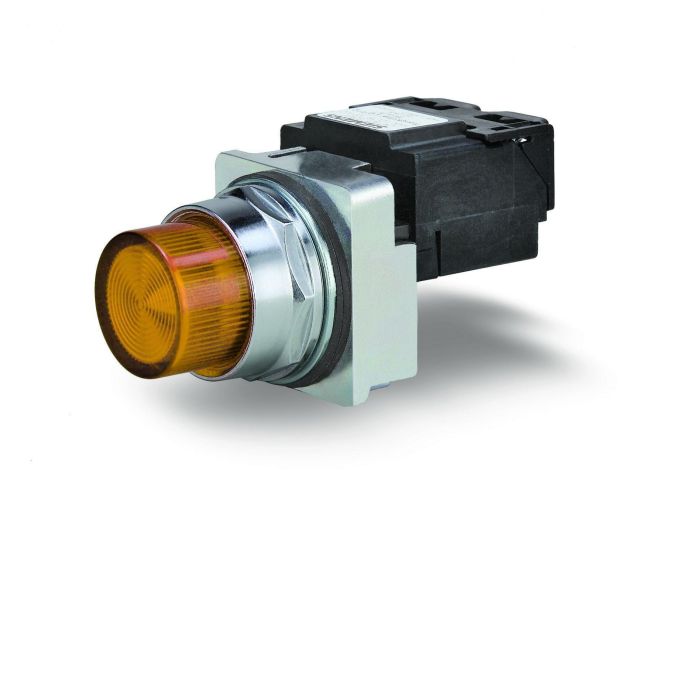

Siemens 52PL4L9 Pilot Light LED MOD 24V AC/VDC

Product Description

The SIEMENS 52PL4L9 is a 30mm Command/52, chrome finish heavy-duty, watertight/oiltight complete metal unit illuminated indicator light. This full voltage type pilot light operates at 24V AC/DC and features an integrated LED with a plastic lens. It is UL Listed and CSA Certified, meeting NEMA 1, 3, 3R, 4, 4X, 12, 13, and automotive standards.

• 30mm Command/52
• Chrome Finish Heavy Duty
• Watertight/Oiltight Complete Metal Unit
• Full Voltage type, 24V AC/DC

Product Highlights

This heavy-duty illuminated pilot light is designed for panel mounting and harsh environments, offering reliable indication with its LED and robust construction.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4L9
• Country of Origin: Mexico

Technical Specifications

• Type: Class 52, Heavy Duty
• Voltage: 24 Volt
• Brand: Siemens
• Sub Brand: Command52
• Color: Amber
• Lamp Type: LED
• Manufacturer Part Number: 52PL4L9
• Supply Voltage: 24 V
• UPC Code: 662643853186
• Bezel/Housing: Die Cast Zinc
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66
• Environmental Conditions: -35 to 70
• Lens Color: Amber
• Lens Material: Plastic
• Lens Type: Concentric Ring
• Mounting Type: Panel
• Series: Command 52
• Shape: Round
• Size: 30
• Terminal Type: Screw
• Voltage Rating: 24
• Category: Pilot Light
