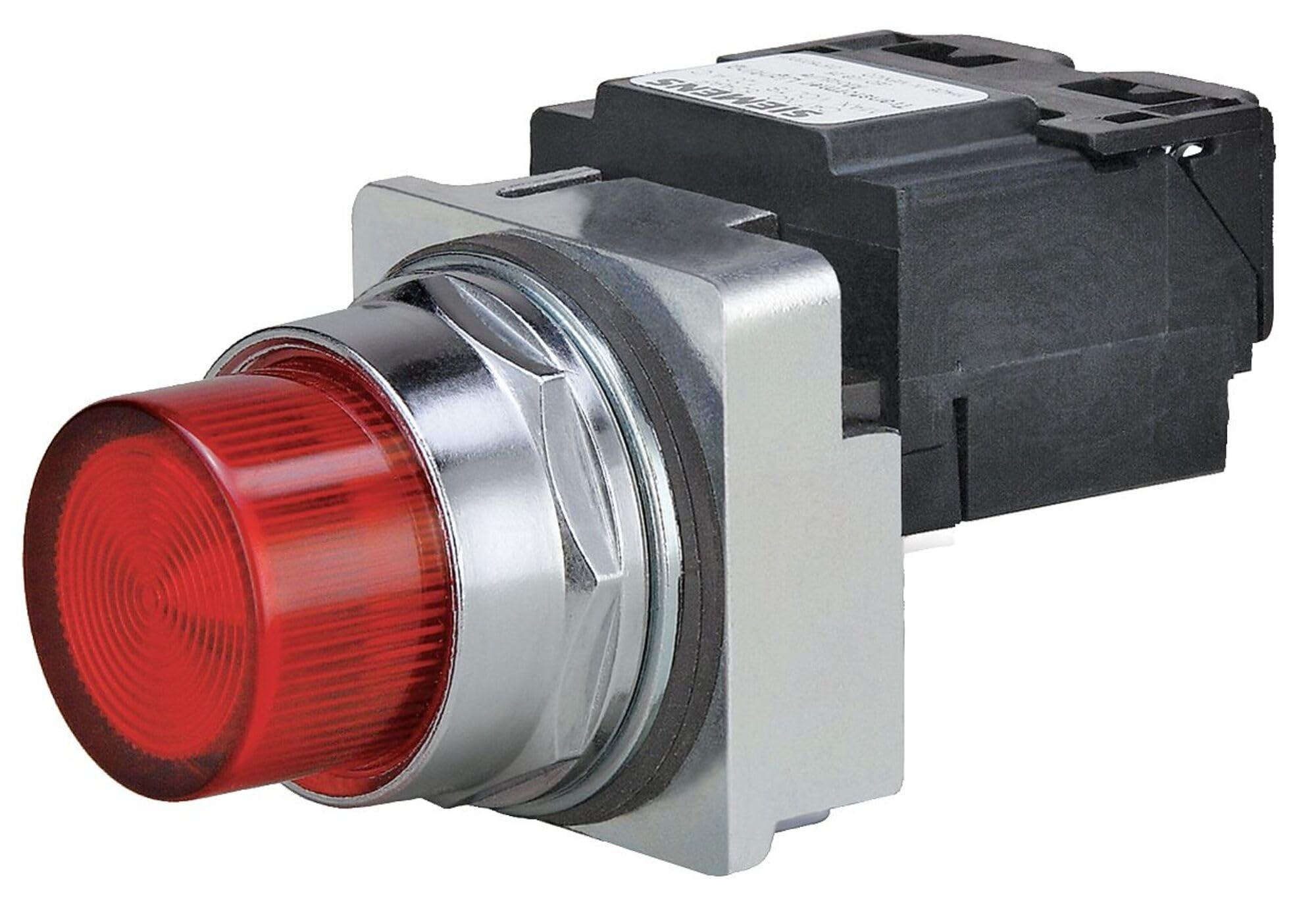

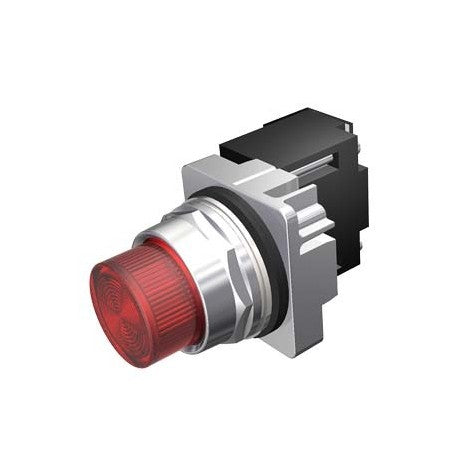

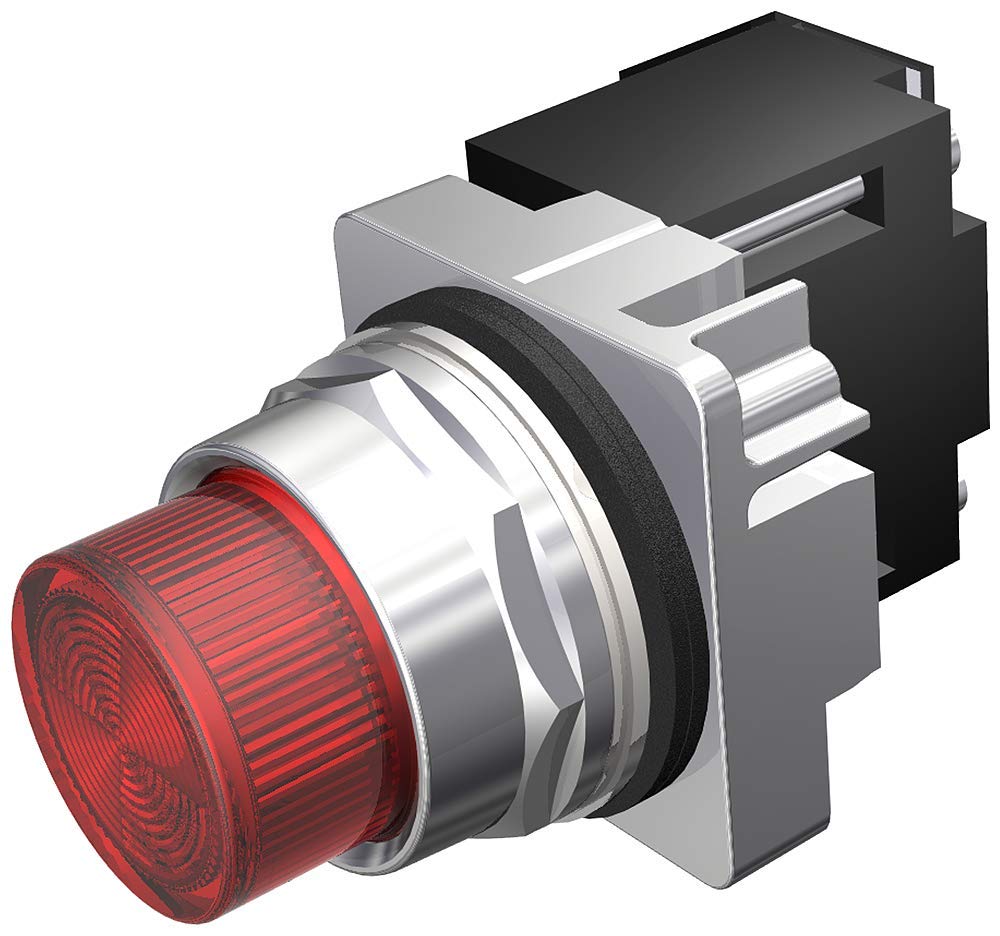

Siemens 52PL4J2 Pilot Light Complete, Incand, 480V, 30mm REPLACEMENT LAMPS 4VCW2

Product Description

The SIEMENS 52PL4J2 pilot light complete unit is designed for industrial applications. This 30mm pilot light features a zinc die-cast body and a plastic lens. Rated NEMA 1, 3, 3R, 4, 4X, 12, and 13, it includes screw clamp terminals and is UL Listed and CSA Certified. The lamp module uses a transformer and an incandescent bulb.

• Complete unit with round shape and zinc die-cast body.
• Rated NEMA 1, 3, 3R, 4, 4X, 12, and 13.
• UL Listed and CSA Certified.

Product Highlights

This heavy-duty pilot light is ideal for process control and emergency shutoff applications. It features a chrome-plated finish and is watertight and oiltight.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4J2
• Country of Origin: Mexico

Technical Specifications

• Item: Pilot Light Complete
• Voltage: 480V AC
• Lamp Type: Incandescent
• Shape: Round
• Terminal Connection: Pressure Plate
• Lens Material: Plastic
• Size: 30 mm
• Lamp Module Type: Transformer
• Basic Material: Metal
• Lens Type: Concentric Rings
• Lamp Voltage: 6V AC/DC
• Replacement Lamps: 4VCW2
• Body Material: Chrome Plated Zinc Die Cast
• NEMA Rating: 1, 3, 3R, 4, 4X, 12, 13
• Includes: Lamp Module
• Standards: CSA, UL
• Manufacturer: Siemens
• MPN: 52PL4J2
• Model / MPN: US2:52PL4J2
• UPC: 662643314595
• Bezel: Chrome plated octagonal nut
• Series: 52PL Series
• Supply Voltage: 480 VAC
• Termination: screw
• Type: Heavy Duty Illuminated, Heavy Duty Illuminated Transformer
• Mounting Type: Threaded
• Terminal Type: Screw
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66
• Base Type: BA9s
• Lens Color: Red
• Part Number #: 52PL4J2
• Bezel/Housing: Chrome Metal
• Reference: 52PL4J2
• Condition: New
