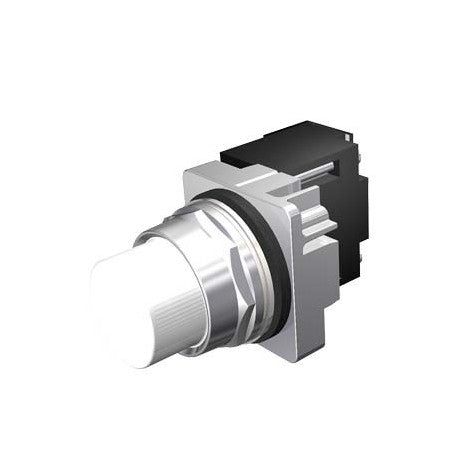

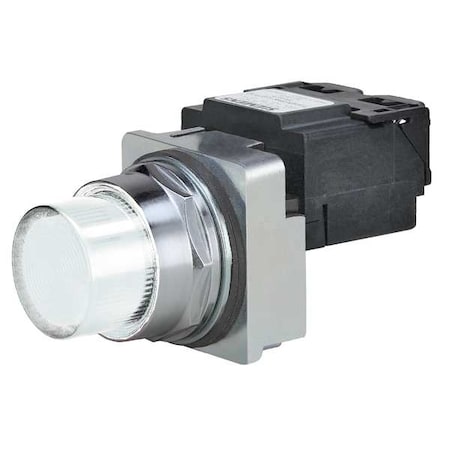

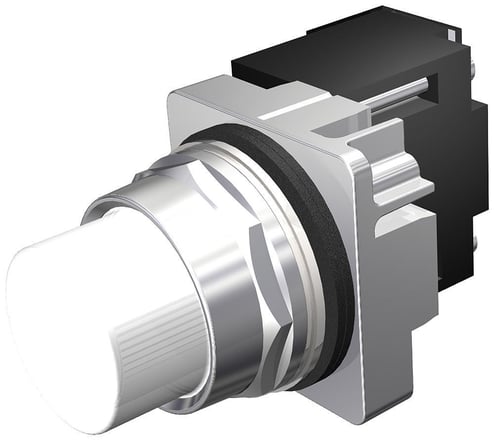

Siemens 52PL4GBXB Pilot Light Complete LED 120V 30mm

Product Description

The SIEMENS 52PL4GBXB pilot light complete features an LED lamp and operates at 120V AC. This pilot light has a round shape and a 30 mm size. It includes a lamp module with a single LED and is constructed with a metal basic material and a plastic lens material. The lamp module is a transformer type.

• Voltage 120V AC
• Lamp Type LED
• Terminal Connection Pressure Plate

Product Highlights

This pilot light is suitable for various applications requiring clear indication and reliable performance. It is oil/dust tight and meets Type 3, 4, 4X, 12 and 13 specifications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4GBXB
• Country of Origin: Mexico

Technical Specifications

• Item: Pilot Light Complete
• Size: 30 mm
• Voltage: 120V AC
• Includes: Lamp Module, Single LED
• Lamp Type: LED
• Lens Type: Concentric Rings
• Standards: CSA, UL
• NEMA Rating: 1, 12, 13, 3, 3R, 4, 4X
• Lamp Voltage: 6V AC/DC
• Product Type: Pilot Light Complete
• Body Material: Chrome Plated Zinc Die Cast
• Lens Material: Plastic
• Basic Material: Metal
• Lamp Module Type: Transformer
• Replacement Lamps: N/A
• Terminal Connection: Pressure Plate
• Country of Origin: Mexico
• Manufacturer: Siemens
• Series: 52PL Series
• Lens Style: Round with Flat Top
• Termination Style: Screw Terminal
• Base Product Number: 52PL4
• Reference: 52PL4GBXB
• Item Code: 52PL4GBXB
• Condition: New
• Supply Voltage: 120 V
• UPC Code: 662643853131
• Voltage Rating: 120 V AC
• Shape: Round
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP20/IP66
• Mounting Type: Panel
• Bezel/Housing: Metal
• Environmental Conditions: -31 to 158 deg F Operating, -40 to 185 deg F Storage
• Base Type: BA9s
• Width: 2 in
• Type: Class 52 Corrosion-Resistant Heavy Duty Illuminated Oil/Watertight transformer
