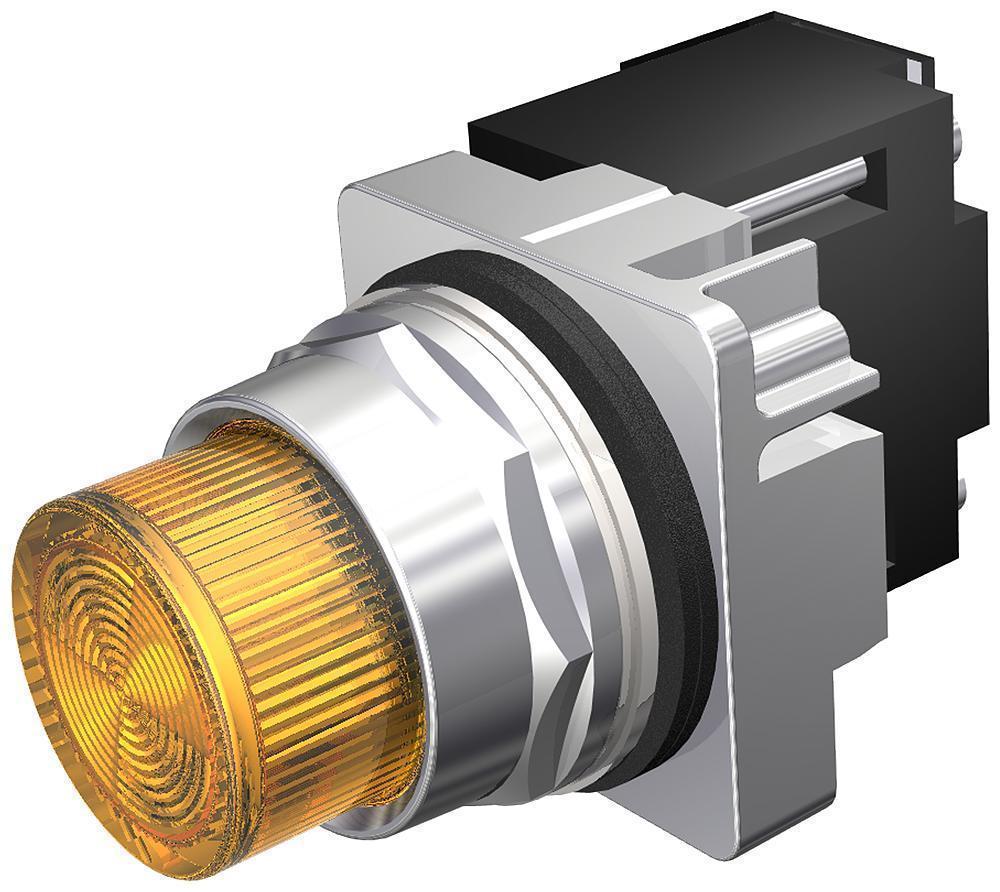

Siemens 52PL4G9 Indicator Amber 120V 30 mm 52PL

Product Description

The Siemens 52PL4G9 indicator is designed for diverse applications. These Class 52 oiltight pilot controls ensure long-lasting performance in demanding industrial environments. Meeting Type 3, 4, 4X, 12, and 13 specifications, this heavy-duty illuminated indicator features a 120 VAC transformer, BA9s incandescent lamp, and a plastic amber lens within a metal body.

• New modular design for flexible assembly.
• Improved lighting distribution with ribbed concentric lens.
• Watertight and oiltight construction.

Product Highlights

This 30mm indicator light has a chrome finish and is UL and CSA certified, offering reliable performance in harsh conditions.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4G9

Technical Specifications

• Bezel: Chrome plated octagonal nut
• Brand: SIEMENS
• Color: Amber
• Lamp Type: Incandescent
• Manufacturer Part Number: 52PL4G9
• Series: 52PL Series
• Standards: UL CSA
• Supply Voltage: 120 VAC
• Termination: screw
• Type: Heavy Duty Illuminated
• Lens: Concentric Ring Lens, Amber Lens, Plastic Lens
• Lamp: Incandescent Lamp
• Bezel/Housing: Die Cast Zinc
• Size: 30 mm
• Shape: Round
• Base: BA9s Base
• Terminal: Screw Terminal
• NEMA Rating: NEMA 1/3/3R/4/4X/12/13/IP66
• Mounting: Threaded Mount
• Environmental Conditions: -35 to 70 deg C
• Finish: Chrome Finish
• Approval: UL, CSA
• Body Material: Metal
• Lens Material: Plastic
• Enclosure: NEMA 1/3/3R/4/4X/12/13, IP20/66
• Lamp Input Type: 120 Volt AC Transformer
