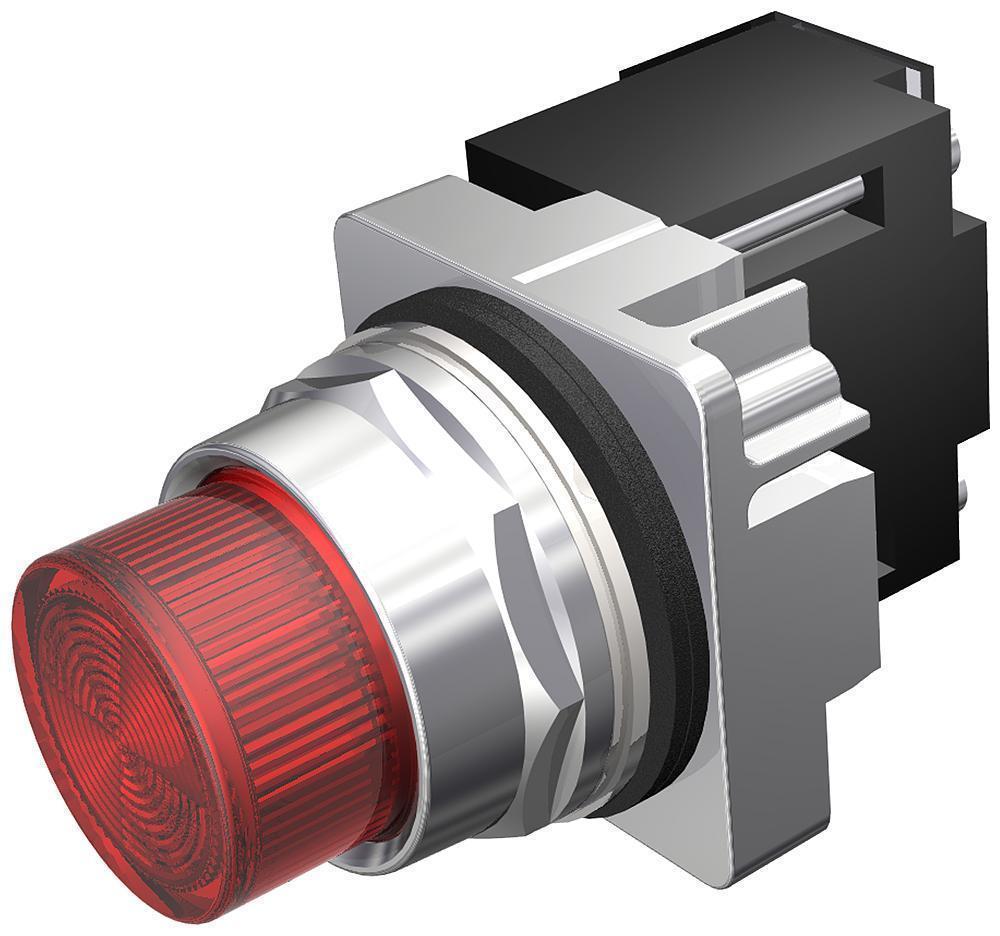

Siemens 52PL4G2XB Pilot Light 120 VAC

Product Description

The Siemens 52PL4G2XB pilot light is a heavy-duty component from the Command 52 series. Operating at 120 VAC, it features a concentric ring lens and a red plastic LED lens. The bezel and housing are constructed from die-cast zinc, and it has a 30 mm round design with a BA9s base and screw terminals. It is designed for threaded mounting and suitable for environmental conditions ranging from -35 to 70 deg C.

• New modular design
• Improved lighting distribution with new ribbed concentric lens
• Corrosion resistant finish

Product Highlights

This pilot light features a watertight and oil-tight design, compliant with automotive standards and NEMA 1/3/3R/4/4X/12/13/IP66 ratings.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4G2XB

Technical Specifications

• Brand: Siemens
• Part Number #: 52PL4G2XB
• SKU #: 2222778
• UNSPSC: 39121534
• Series: Command 52
• Input Voltage: 120 VAC
• Lens Type: Concentric Ring Lens
• Lens Color: Red
• Lens Material: Plastic
• Lamp Type: LED
• Bezel/Housing Material: Die Cast Zinc
• Size: 30 mm
• Shape: Round
• Base Type: BA9s
• Terminal Type: Screw Terminal
• Enclosure Rating: NEMA 1/3/3R/4/4X/12/13/IP66
• Mounting Type: Threaded Mount
• Operating Temperature: -35 to 70 deg C
