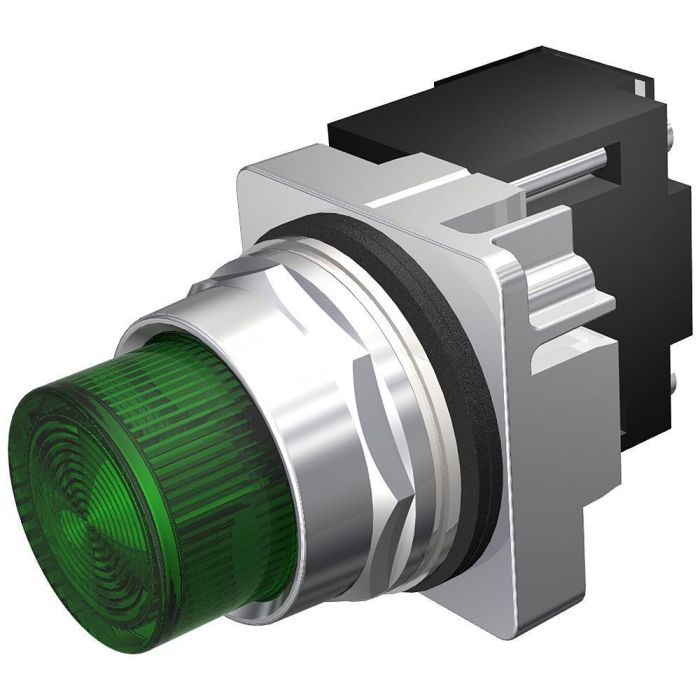

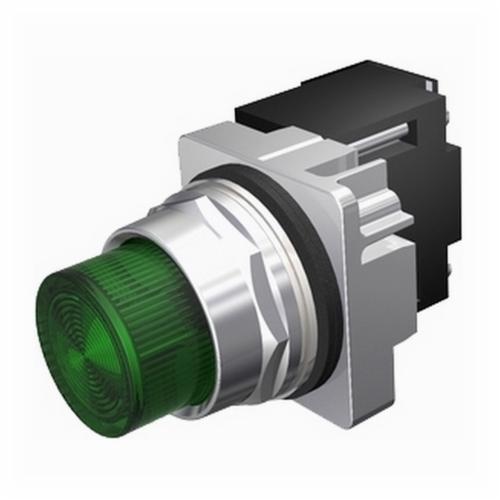

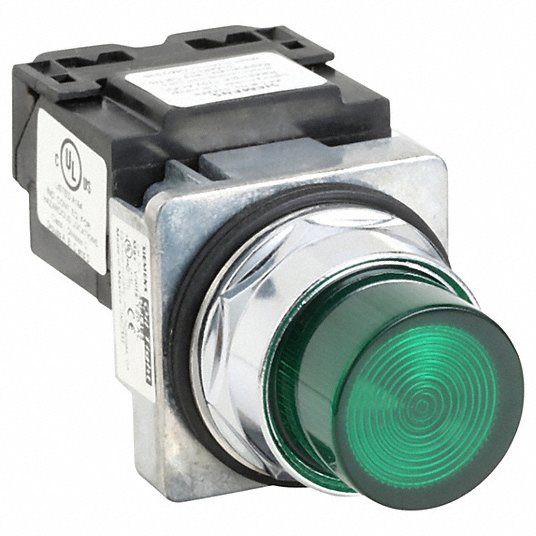

Siemens 52PL4E3 Pilot Light Full Voltage 120VAC/DC

Product Description

The Siemens 52PL4E3 pilot light is a full voltage indicator designed for a variety of applications. These Class 52 oiltight pilot controls and accessories are designed to provide long, trouble free service in demanding industrial applications. These controls are oil and dust tight and meet Type 3, 4, 4X, 12 and 13 specifications.

• Pilot Light
• Voltage 120V AC
• Lamp Type Incandescent

Product Highlights

The pilot light has a new modular design and a ribbed concentric lens providing improved lighting distribution and aesthetic appeal.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4E3
• Country of Origin: MX

Technical Specifications

• Brand: SIEMENS
• MPN: 52PL4E3
• Country of Origin: MX
• Size: 30 mm
• Voltage: 120 V AC/DC
• Features: Pilot Light, Voltage 120V AC, Color Green, Lamp Type Incandescent
• Lamp Type: Incandescent
• Series: 52PL Series
• Standards: UL CSA
• Supply Voltage: 120 V
• Voltage Rating: 120 VAC/VDC
• Average Life: 5000 hr
• Bezel/Housing: Die Cast Zinc
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66
• Environmental Conditions: -35 to 70 deg C
• Lens Color: Green
• Lens Material: Plastic
• Lens Type: Concentric Ring
• Lumens: 3 Lumens
• Mounting Type: Panel
• Shape: Round
• Terminal Type: Locknut
• Type: Heavy Duty Non-Illuminated
• Base Type: BA9s
• Standard & Approvals: CSA LR6535, UL File No. E22655
• Application: Used in a panel to indicate the status of the motor or other devices in the control circuit
• Part Number #: 52PL4E3
• Body Finish: Chrome Plated
• Body Material: Metal
• IP Rating: IP20; IP66
• Includes Lamp Module: Lamp Module Included
• Includes Lens: Lens Included
• Includes Push-To-Test: No Push-To-Test Included
• Lamp Bulb Color: Green
• Lamp Bulb Type: Incandescent
• Lamp Module Type: Full
• Max Lamp Bulb Voltage: 120 V AC/DC
• Max Voltage Rating (Supply): 120 V AC/DC
• NEMA Enclosure Rating: 1; 3; 3R; 4; 4X; 12; 13
• Overall Depth: 3.49 in
• Overall Height: 1.7 in
• Overall Width: 1.7 in
• Panel Mounting Hole Diameter: 30 mm
• Resistance Properties: Surge Voltage Resistant; Vibration Resistant
• Terminal Connection: Screw Terminal
• UNSPSC: 39121534
