Siemens 52PL4E2XB Pilot Light 120 V AC/DC (30 mm)

Product Description

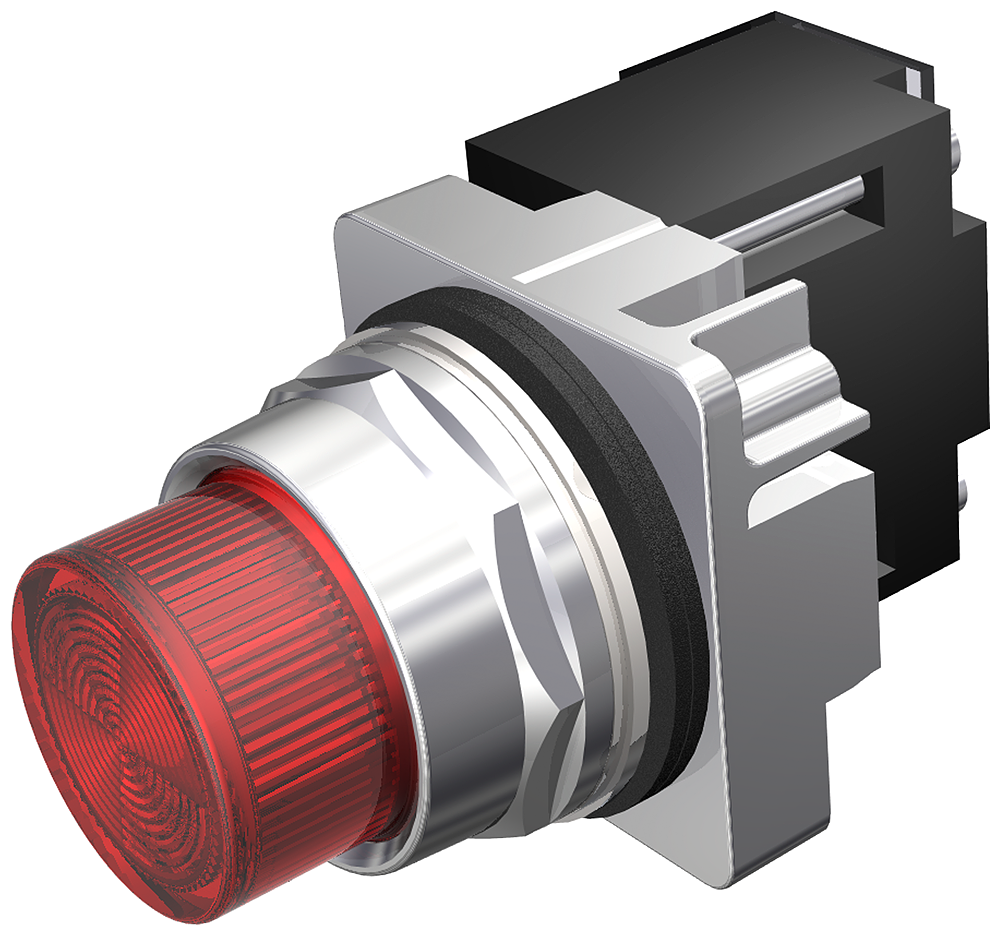

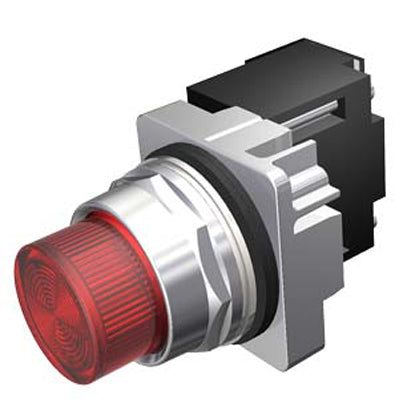

Siemens 52PL4E2XB is a 30 mm Command/52 series pilot light with a full-voltage 120 V AC/DC BA9s LED lamp. The chrome-plated die-cast zinc bezel and metal housing provide a watertight/oiltight assembly rated to NEMA 1, 3, 3R, 4, 4X, 12, 13 and IP66. It features a concentric-ring plastic lens, screw or touch-safe terminals, panel/threaded mounting, UL and CSA certifications, and an operating range of -35 to 70 °C.

• Full-voltage 120 V AC/DC BA9s base LED with concentric-ring plastic lens
• Chrome-plated die-cast zinc bezel, heavy-duty metal housing; watertight and oiltight construction
• NEMA 1/3/3R/4/4X/12/13 and IP66 ratings; UL Listed and CSA Certified; screw/touchsafe terminals; panel/threaded mount

Product Highlights

30 mm panel-mount illuminated pilot light, 120 V AC/DC LED, chrome die-cast zinc bezel, NEMA/IP66 rated, UL/CSA certified.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PL4E2XB
• Country of Origin: Mexico

Technical Specifications

• Brand: Siemens
• Manufacturer Part Number: 52PL4E2XB
• Series: Command 52
• Product Type: Pilot light / Illuminated indicator
• Size: 30 mm
• Input Voltage: 120 V AC/DC
• Lamp Type: LED (BA9s base)
• Base Type: BA9s
• Lens Material: Plastic
• Lens Type: Concentric ring
• Bezel / Housing Material: Chrome-plated die-cast zinc
• Base Material: Metal
• Mounting Type: Panel / Threaded mount
• Terminal Type: Screw / Touchsafe terminals
• Enclosure Rating: NEMA 1, 3, 3R, 4, 4X, 12, 13; IP66
• Operating Temperature: -35 to 70 °C
• Certifications: UL Listed; CSA Certified
• Country of Origin: Mexico
• Finish: Chrome
• GTIN / UPC: 66264331437
