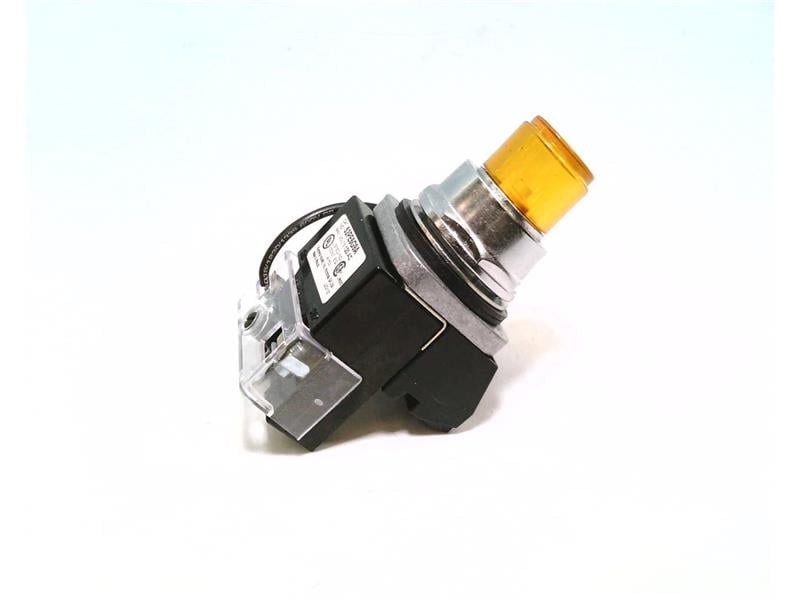

Siemens 52pe6g9a Illuminated Push Button 120V 1NC 1NO

Product Description

The SIEMENS 52pe6g9a is an illuminated push button rated for 120 VAC operation, designed for industrial and commercial control panel applications. It features one normally closed (NC) and one normally open (NO) contact configuration, making it suitable for both start and stop control functions. The built-in illumination provides visual status indication at the operator interface. This component is typically installed by licensed electricians and control panel technicians in motor control centers, machinery panels, and automation enclosures.

The 52pe6g9a is used in industrial control circuits where a single operator pushbutton must switch two discrete circuit states simultaneously. Common applications include motor start/stop stations, conveyor control panels, pump control enclosures, and general-purpose machine control assemblies in both light industrial and heavy commercial environments. Note that this part has been discontinued by the manufacturer. Technicians sourcing this component should confirm availability before committing to an installation design.

Key Features

• 120 VAC rated illuminated push button for panel-mount control applications
• Dual contact configuration: 1 normally closed (NC) and 1 normally open (NO)
• Integrated illumination provides visible operator status feedback
• Compact design suited for standard industrial control panel cutouts
• Supports start/stop and indication functions in a single operator device

Compatibility

Designed as an OEM-style replacement for industrial control panel push button stations requiring a 120 VAC illuminated operator with 1 NC and 1 NO contact configuration.

Installation Notes

Installation should be performed by a qualified electrician following applicable NEC guidelines for industrial control wiring. De-energize the panel and verify zero voltage with a meter before handling contacts or wiring the device. Ensure the panel cutout diameter matches the operator body diameter before mounting. Verify contact block seating and secure the retaining nut to prevent rotation during operation.

Technical Specifications

• Voltage Rating: 120 VAC
• Contact Configuration: 1 NC, 1 NO
• Illumination: Yes
• Product Status: Discontinued by manufacturer

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52pe6g9a
