Siemens 52pe6g5a Illuminated Push Button 120V Pilot Device

Product Description

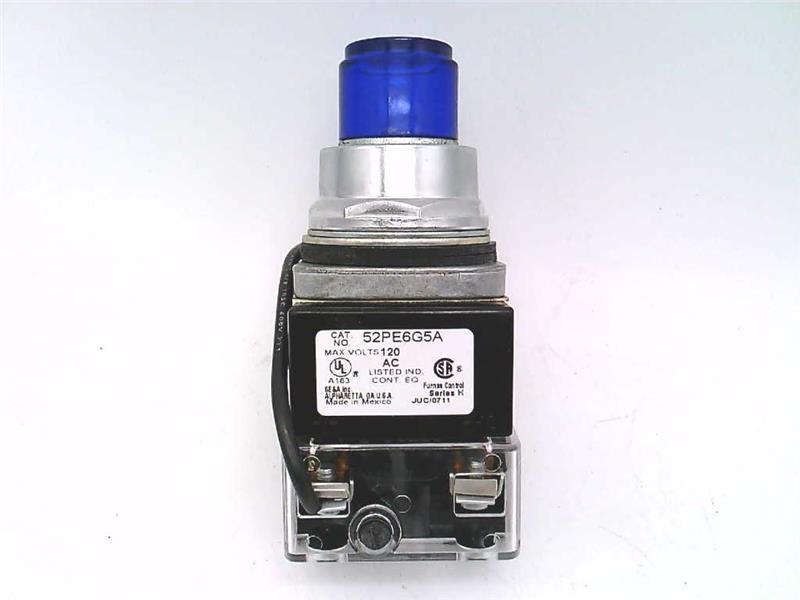

The SIEMENS 52PE6G5A is an illuminated push button pilot device with a blue LED indicator light powered through an integrated transformer at 120 volts. It combines a momentary push button actuator with a built-in pilot light, eliminating the need for a separate indicator lamp assembly. The contact configuration is 1NO-1NC, providing one normally open and one normally closed contact in a single unit. Licensed electricians and industrial control technicians install this type of device in control panel assemblies where operator interface and status indication are required in one compact component.

This illuminated push button is suited for industrial and commercial control panel applications. It is designed for use in machine control, process equipment, and operator interface stations where a visual status indication is needed alongside a momentary switching function. The blue LED illumination and transformer design make it appropriate for 120-volt AC control circuits. Installation typically occurs in 30mm or compatible cutout panel openings on NEMA-rated enclosures used in manufacturing, utilities, and building automation environments.

Key Features

• Integrated transformer-driven LED pilot light eliminates separate indicator wiring
• Blue illuminated actuator provides clear visual status indication at the operator interface
• 1NO-1NC contact configuration supports standard control circuit logic
• 120-volt AC rated for direct connection to common industrial control voltages
• Compact push button and pilot light combination reduces panel space requirements

Compatibility

Designed as an OEM-style replacement or direct-install pilot device for industrial control panels requiring a 120-volt illuminated push button with 1NO-1NC contact configuration.

Installation Notes

Installation of pilot devices should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and any applicable local codes. De-energize and lock out the control panel before mounting the device or making wiring connections. Verify the panel cutout dimensions match the device body before installation. Do not exceed the rated voltage or current capacity of the contact block.

Technical Specifications

• Voltage Rating: 120 volts AC
• Contact Configuration: 1NO-1NC
• Indicator Color: Blue
• Illumination Type: Transformer LED
• Weight: 0.65 pounds
• Category: Pilot Devices

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52pe6g5a
