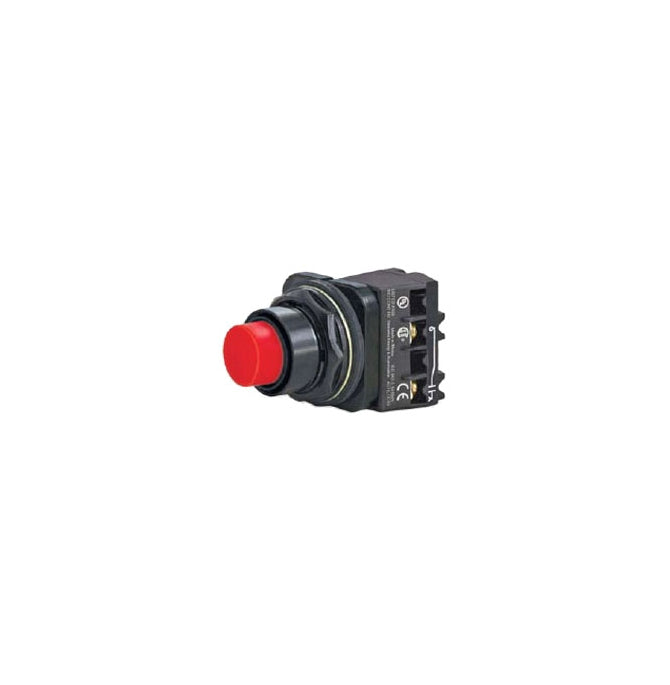

Siemens 52PA8BN 30 mm IP66 Plastic 2-Position Momentary Non-Illuminated Push Button Operator

Product Description

The Siemens 52PA8BN is a 30 mm, IP66 plastic, 2-position momentary non-illuminated push button operator. It features a metal extended button and is suitable for industrial control applications. The operator base is a durable, 1-piece casting with a heavy-duty actuator and stainless steel spring.

• Durable 1-piece castings
• Heavy duty plastic buttons resist oils and corrosion
• Oil tight and corrosion resistant

Product Highlights

This Siemens push button operator is designed for robust performance in demanding industrial environments, offering durability and resistance to corrosion.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52PA8BN

Technical Specifications

• Brand: Siemens
• Material: Metal
• Series: Command 52
• Size: 30 mm
• Temperature Rating: -35 to 70 deg C
• Terminal: Screw
• Terminal Type: Threaded
• Type: Non-Illuminated
• Voltage Rating: 600 VAC
• Standard & Approvals: CSA LR6535, UL E22655
• Bezel/Housing: Die Cast Zinc
• Contact Mode: Momentary
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP66
• Finish: Polished Chrome
• Operator Type: Extended/Raised Button
• Number of Positions: 2
• Part Number: 52PA8BN
