Siemens 52NL16 Legend Plate Emerg Stop Aluminum

Product Description

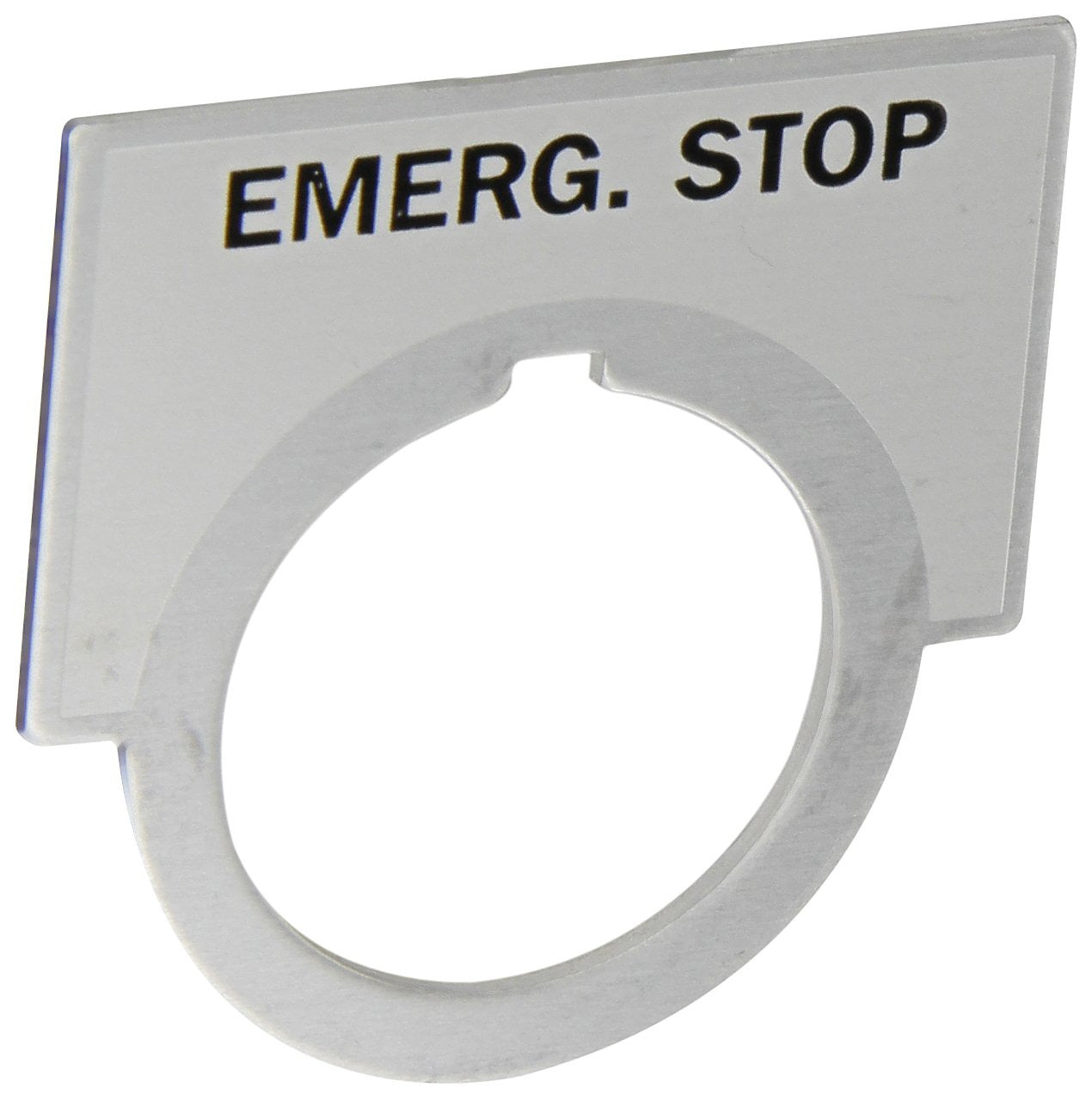

The SIEMENS 52NL16 is a preprinted inscribed legend plate designed for use with Siemens pushbutton units and indicator lights in industrial control applications. The plate reads EMERG. STOP in black letters on a brushed aluminum silver background, providing clear, durable identification at control stations. Built from brushed aluminum, it resists corrosion and withstands wet and oily environments. Rated for Class 51 and 52 locations, it is suitable for use in explosively hazardous, wet, and oily industrial settings such as manufacturing process control systems. The plate measures 1-7/16 inches in height and 2 inches in width and weighs 0.05 pounds.

This legend plate is used in industrial and manufacturing environments where pushbutton actuators and indicator lights require permanent, legible identification. It mounts on 3/4-inch National Pipe Straight Mechanical (NPSM) and 30 mm threaded mounting shafts located on a minimum of 2-1/2-inch centers. Mounting hardware is not included. Typical installations include motor control panels, emergency stop stations, and process control enclosures in facilities requiring NEMA or hazardous-location-rated equipment.

Key Features

• Reads EMERG. STOP with black letters on a silver brushed aluminum background for clear visibility
• Brushed aluminum construction resists corrosion, weather, and exposure to oils
• Rated for Class 51 and 52 locations including explosively hazardous and wet or oily environments
• Compatible with 3/4-inch NPSM and 30 mm threaded mounting shafts on minimum 2-1/2-inch centers
• Preprinted inscription eliminates field labeling and improves panel readability
• Lightweight at 0.05 pounds for easy handling during panel assembly

Compatibility

Designed for use with Siemens pushbutton units and indicator lights that accept 3/4-inch NPSM or 30 mm threaded mounting shafts. Mounting shafts are not included with this legend plate.

Installation Notes

Installation is typically performed by a licensed electrician or qualified controls technician. De-energize the control panel and follow lockout/tagout procedures before servicing any pushbutton or indicator assembly. Verify shaft thread type and center-to-center spacing before installing the legend plate. Consult applicable NEC guidelines for equipment installed in hazardous or wet locations.
