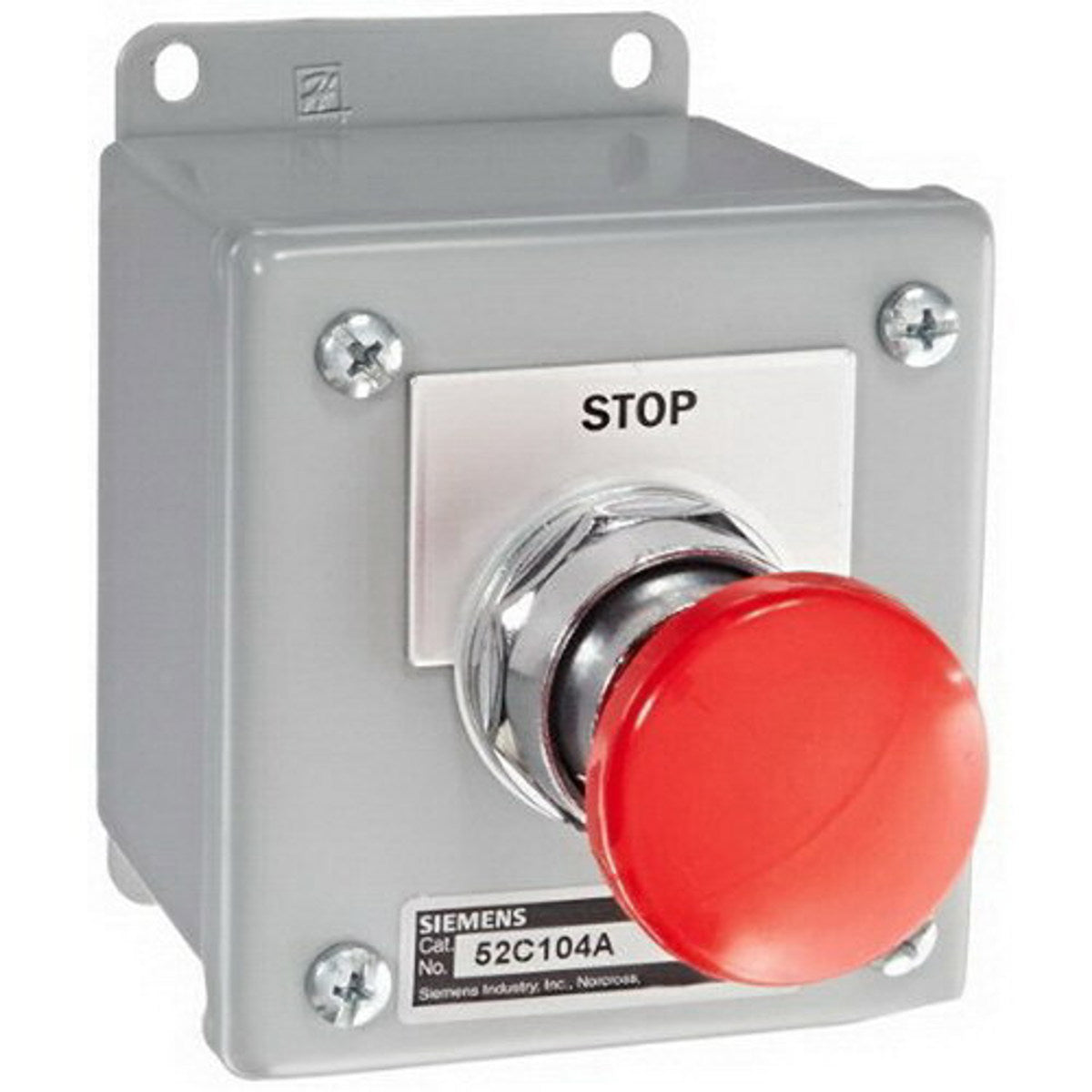

Siemens 52C104A 30 mm 1NO 1NC 1-Hole Heavy Duty Push Button Station

Product Description

The SIEMENS 52C104A is a 30mm control station with painted steel construction. This heavy-duty push button station features a momentary red mushroom head pushbutton with 1NO-1NC contacts, and is marked with 'STOP'. It is designed for NEMA 12/13 environments.

• 30mm Control Station
• Painted Steel Complete
• 1 device station

Product Highlights

Heavy-duty push button station with momentary action and 1NO-1NC contacts, suitable for NEMA 12/13 applications.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52C104A
• Country of Origin: Mexico

Technical Specifications

• GTiN: 00783087093379
• NEMA: 12
• Size: 30 MM Mount Hole Diameter
• Type: Class 52, Heavy Duty
• Brand: Siemens
• Enclosure: NEMA 12
• Sub Brand: Command52
• Product UPC: 78308709337
• 12-Digit UPC: 783087093379
• Manufacturer: Siemens
• Country of Origin: Mexico
• Made in USA: No
• Action: Momentary
• Special Features: Contact Configuration: 1 NO, 1 NC; Actuator Color: Red; Number Of Command Points: 1; Actuator: Mushroom Head; Legend: STOP
• UPC: 783087093379
• Item Type: Class 52, Heavy Duty
• Number of Elements: 1
• Contact Rating: 10A 600V AC
• Number of Operators: 1
• Contact Configuration: 1NO-1NC
• NEMA Rating: NEMA A600/P600/12/13
• Operator Type: Mushroom Head
• Legend: STOP
• Contact Mode: Momentary
• Material: Metal
• Connection Type: Screw
