Siemens 52BR8W2 Configurable Switch Body Non-Illuminated

Product Description

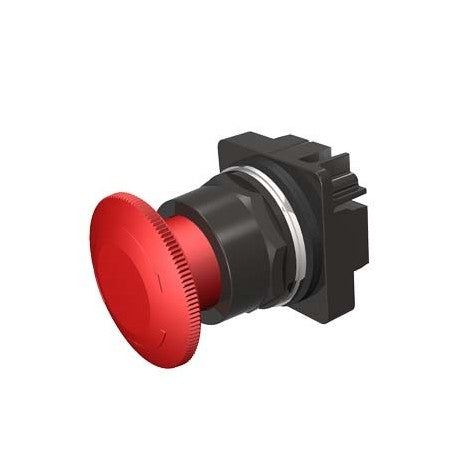

The Siemens 52BR8W2 configurable switch body features a pushbutton with a mushroom actuator and is non-illuminated. This maintained switch body requires contact block(s) and is compatible with the Siemens 30mm series. It is designed for use in control systems and demanding environments.

• Configurable Switch Body
• Pushbutton, Mushroom
• Non-Illuminated

Product Highlights

This switch body is corrosion-resistant, oil/watertight, and features a keyed operator and versatile contact configuration.

Product Information

Standard Information

• Brand: SIEMENS
• Manufacturer Part Number: 52BR8W2

Technical Specifications

• Category: Switches, Configurable Switch Components, Configurable Switch Bodies
• Manufacturer: Siemens
• Series: Class 52
• Part Status: Active
• Requires: Contact Block(s)
• Type: Maintained
• Illumination: Non-Illuminated
• Actuator Type: Pushbutton, Mushroom
• Compatible Series: Siemens, 30mm
• Panel Cutout Dimensions: 30mm (Round)
• Material: Metal/Plastic
• Operator Type: Keyed
• Terminal Type: Touch Safe Screw
• Contact Rating: 60 A at 110 VAC, 30 A at 230 VAC, 15 A at 400 VAC, 12 A at 500 VAC
• Enclosure Type: NEMA 1/3/3R/4/4X/12/13/IP10/IP11/IP14/IP52/IP54/IP56/IP66
• Actuator: Mushroom Head
• Contact Configuration: 1NC/1NO
• Environmental Conditions: -30 to 70 deg C Operating Temperature, 40 to 185 deg C Storage Temperature
• Size: 30
• Reference: 52BR8W2
